Sturmer Optimum OPTIturn TU 2004V Metal Turning Lathe 230v

Sturmer Optimum

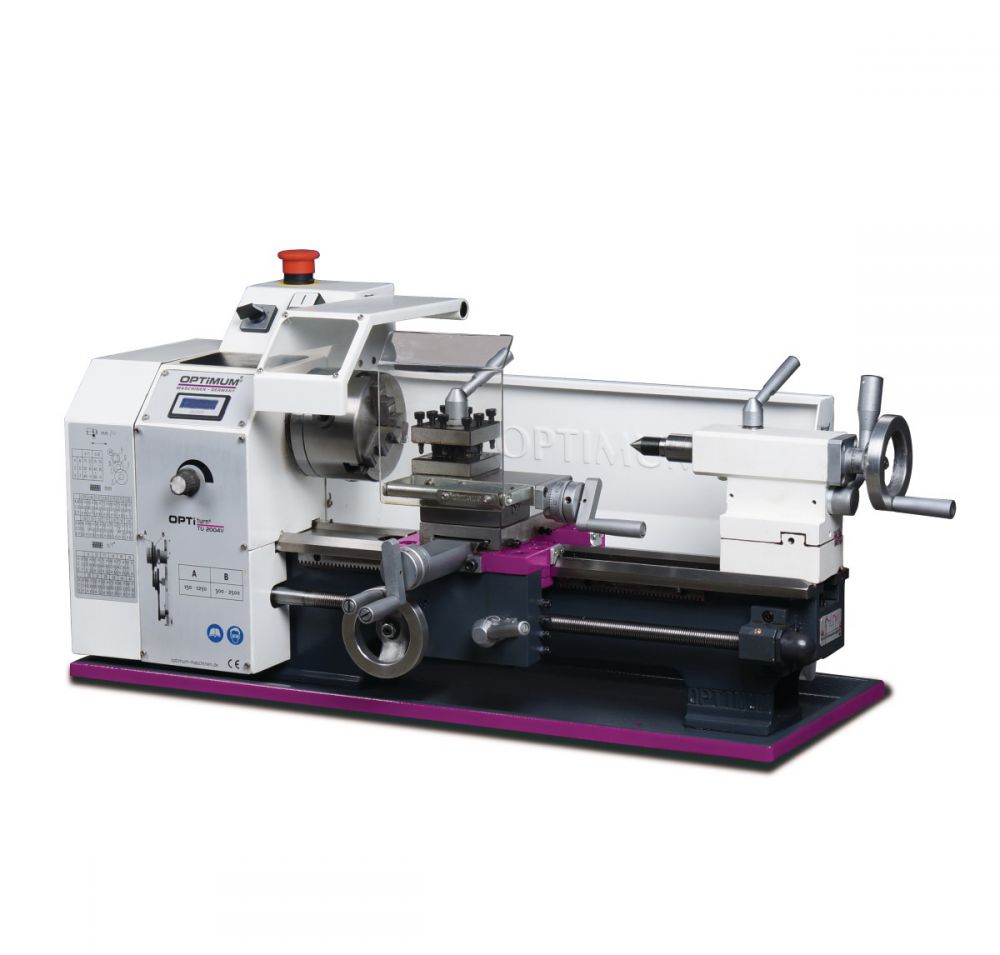

OPTIturn TU 2004V Metal Turning Lathe 230v

ref: 3420310

Modeling lathe with electronically adjustable speed and digital speed display.

• OPTI-turn TU 2004V Metal turning lathe + 300x100mm capacity + electronic speed range 150-2500 rpm + MT1 spindle cone + guaranteed concentricity of spindle nose to 0.009mm + R & L rotation + 3 jaw lathe chuck + 600W motor 230v
• Precise processing
• Heavily ribbed prism bed made of cast steel, inductively hardened and precision ground
• Hardened and ground Z-axis guideway
• Hardened spindle nose (DIN 6350)
• Guaranteed concentricity of the spindle nose better than 0.009 mm
• Automatic longitudinal / lead screw drive
• Roll-rolled trapezoidal thread of the lead screw
• Leadscrew stored in two sintered bearings
• Longitudinal, top and top slides
• Right / left rotation in the control panel switchable
• Hardened main spindle mounted in adjustable precision tapered roller bearings
• Tapered roller bearings in P5 quality
• Cylindrical center mount
• Hardened spindle nose with Ø 21 mm spindle bore
• Chuck concentricity better than 0.04 mm
• Tailstock adjustable for bow turning
• Tailstock quill and handwheel with adjustable fine scale 0.02 mm
• Fast, easy and tool-free adjustment by means of a clamping lever
• Emergency stop impact switch
• Lathe chuck protection
• thrust bearing
• Change gear
• Quadruple steel holder, rotatable
• Replacement gear set in the standard scope of delivery enables large thread cutting area
• 3-jaw lathe chuck in the standard scope of delivery
• EMC filter class C1
