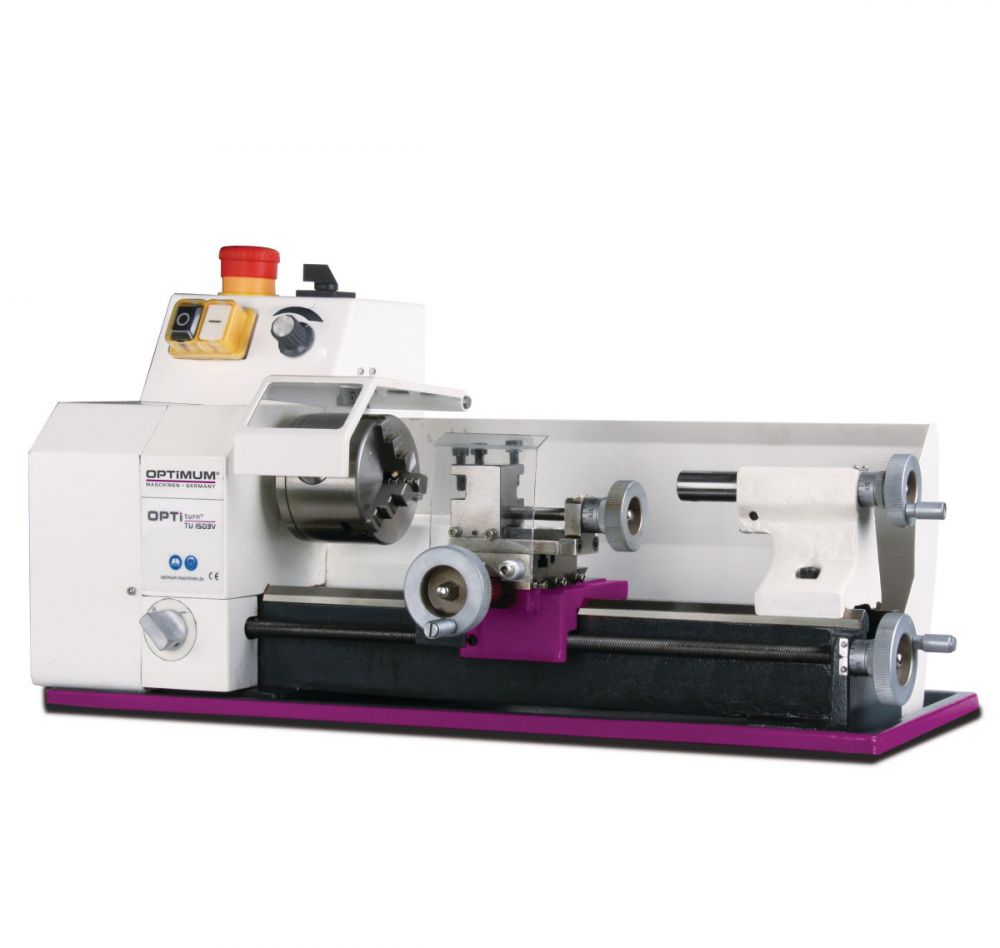

Sturmer Optimum OPTIturn TU 1503V Metal Turning Lathe 230v
Product Code: STU/3420260
Brand: Stuermer
Available to Order Please Call
01726 828 388
£999.98 Inc. VAT
£833.32 Exc. VAT
Sturmer Optimum
OPTIturn TU 1503V Metal Turning Lathe 230v
ref: 3420260
The smallest lathe with electronically adjustable speed.
Key Features
- TU 1503V OPTI-turn Metal turning lathe + 265x75mm capacity + electronic speed range 120-3000 rpm + MT1 spindle cone + guaranteed concentricity of spindle nose to 0.015mm + R & L rotation + 3 jaw lathe chuck + 450W motor 230v
- DC motor
- Verrippt prism bed made of gray cast iron, inductively hardened and ground
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Concentricity – lathe chuck max 0.05 mm
- Lead screw for thread cutting or automatic longitudinal turning
- Longitudinal, level and upper slide
- Automatic longitudinal / lead screw drive
- Large threading area due to change gear set
- 3-jaw lathe chuck in the standard scope of delivery
- Easy and fast speed change via V-belt
- Safety switch in the cover
- Right / left rotation in the control panel switchable
- Chuck protection with microswitch
- Handwheels with adjustable fine scale 0.04 / 0.01 mm
- All guides can be adjusted without clearance by means of wedge strips
- Emergency stop impact switch
- Low voltage electronics
- EMC filter class C1
Technical details
Dimensions and weights
- Length approx.: 570 mm
- Width/depth approx.: 340 mm
- Height approx.: 300 mm
- Weight approx.: 23 kg
Electrical Data
- Drive motor output: 0,45 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Feed
- Longitudinal feed range: 0,05 – 0,1 mm/rev
- Number of longitudinal feeds: 2
Pitches
- Metric pitch: 0,5 – 1,5 mm/rev
- Number of metric pitches: 8
- Diametrical pitch: 30
Speed range
- Number of gears: 1
- Speed range: 120 – 3000 min¯¹
- Speed control: electronically adjustable
Spindle
- Spindle chuck: cylindrical Ø 22
- Spindle bore/rod passage diameter: 11 mm
- Tool holder max. chuck height: 12 mm
- Spindle cone: MT 1
Standards and certifications
- Standard: DIN EN 55011
- EMC level: C1
Tailstock
- Chuck: Shortened MT 1
- Quill stroke: 30 mm
Travel
- Travel upper slide: 40 mm
- Travel cross slide: 55 mm
- Travel carriage saddle: 270 mm
Work areas
- Max. height: 75 mm
- Max. width: 265 mm
- Swing diameter above planing slide: 70 mm
- Bed width: 70 mm
- VPE: 1
