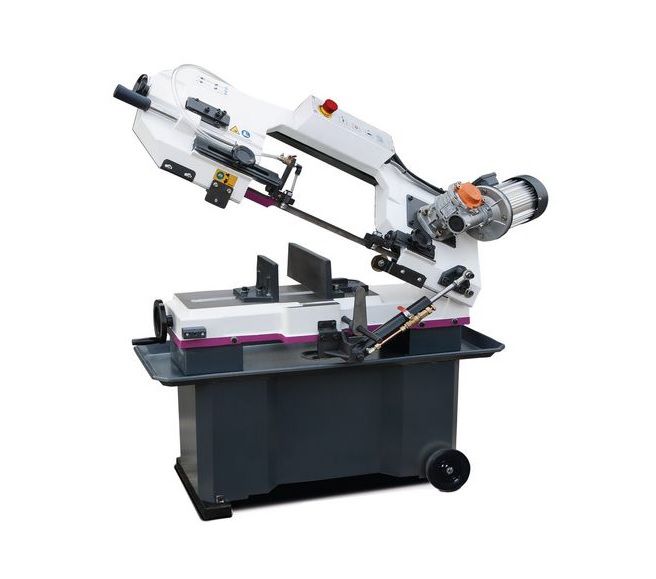

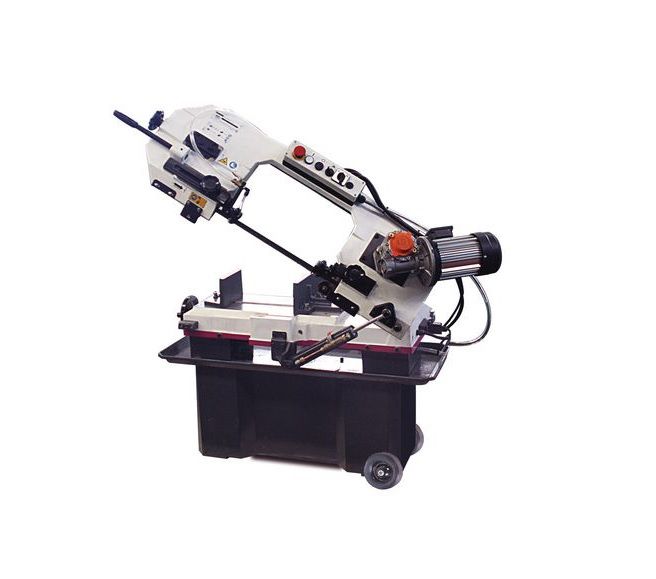

Sturmer Optimum OPTIsaw SD 200G Metal Cutting Bandsaw 550/750W 415v
Product Code: STU/3300200
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,039.99 Inc. VAT
£1,699.99 Exc. VAT
Sturmer Optimum
OPTIsaw SD 200G Metal Cutting Bandsaw 550/750W 415v
ref: 3300200
Key Features
- OPTI-saw SD 200G Infinitely variable feed 45-90 m/min + 180mm max sawing dia + 44-88m/min cutting speeds + silent running + quick action vise + mobile base unit + 550/750W motor 415v
- Silent run
- Stable cast execution
- Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
- Micro switch for automatic limit switch
- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel

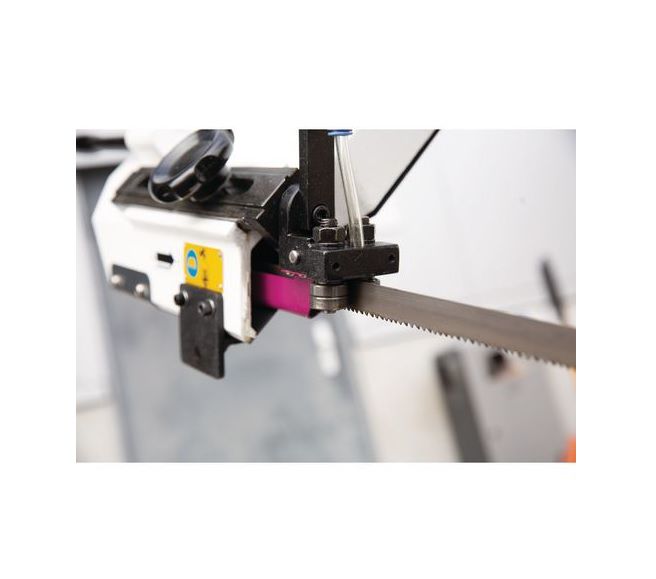

- Ball bearing saw band guide
- Robust machine base with large wheels and handy transport handle for easy location change of the machine
- Adjustable material stop for serial work
- Circuit breaker for the saw band cover
- Fully equipped, allowing the user to be productive immediately after commissioning
- Includes material stop, bi-metal blade, machine base
Technical details
Cutting ranges
- 0° round (full material): 180 mm
- 0° quadratic (full material): 180 mm
- 0° rectangle upright (full material): 180 x 240 / 50 x 300 mm
- +45° round (full material): 110 mm
- +45° quadratic (full material): 150 mm
- +45° rectangle upright (full material): 110 x 170 mm
- Explanation Cutting range: Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Width without material stop approx.: 475 mm
- Width with material stop approx.: 535 mm
- Height lower end position approx.: 790 mm
- Height upper end position approx.: 1200 mm
- Work table height: 530 mm
- Length approx.: 1295 mm
- Weight approx.: 130 kg
Electrical Data

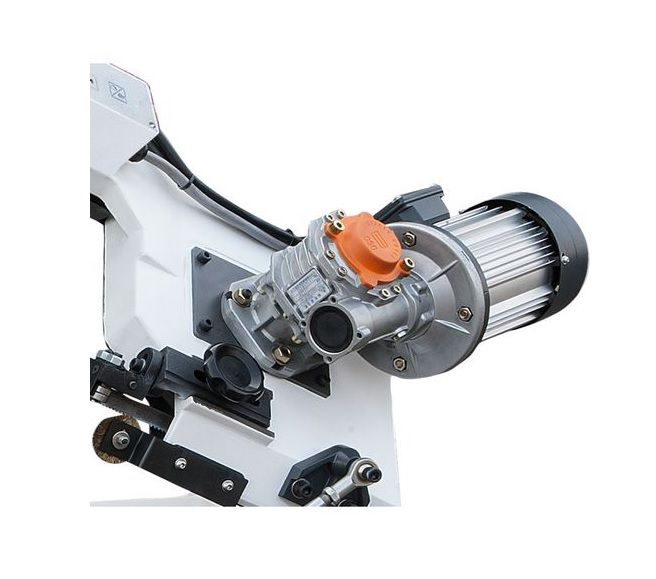

- Drive motor output: 0.55 / 0.75 kW
- Engine power coolant pump: 100 W
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Machine data
- Saw band speed(s): 44 / 88 m/min
- Saw band length: 2360 mm
- Saw band width: 19 mm
- Saw band thickness: 0.9 mm
- Cutting angle: 0 – 45 °
- Feed: infinitely variable
- Lifting the saw bow: Manual
- VPE: 1
