Sturmer Optimum OPTIsaw S 275NV Metal Cutting Bandsaw 550/750W 415v

X
Product Code: STU/3300265
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,999.99 Inc. VAT
£2,499.99 Exc. VAT
Stuermer

Sturmer Optimum

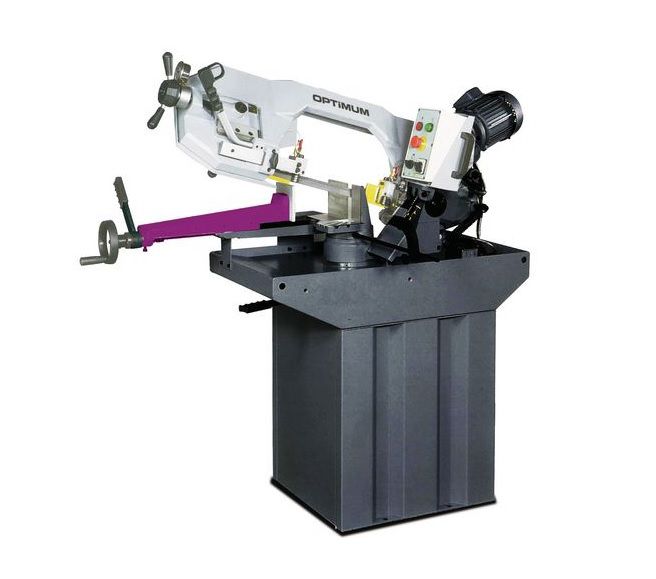

OPTIsaw S 275NV Metal Cutting Bandsaw 550/750W 415v

ref: 3300265



Key Features

  • OPTI-saw S 275NV Infinitely variable feed 20-90 m/min + 225mm max sawing dia + silent running + quick action vise + mobile base unit + 550/750W motor 415v
  • Metal band saws with swivel saw bow. S 275NV with continuously adjustable saw blade speed
  • Silent run
  • Stable cast execution
  • High cutting accuracy due to vibration-free running

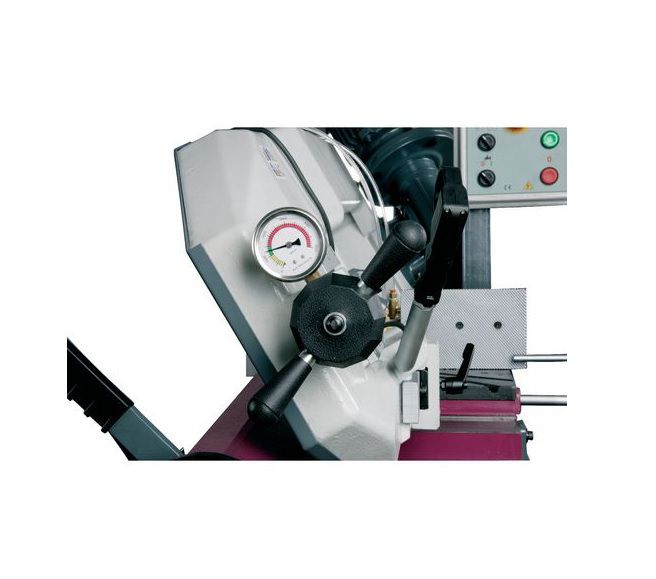

  • Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
  • Micro switch for automatic limit switch
  • Coolant system
  • As standard with high-quality bi-metal saw band
  • Adjustable material stop for serial work
  • Robust machine base
  • Ball bearing saw band guide

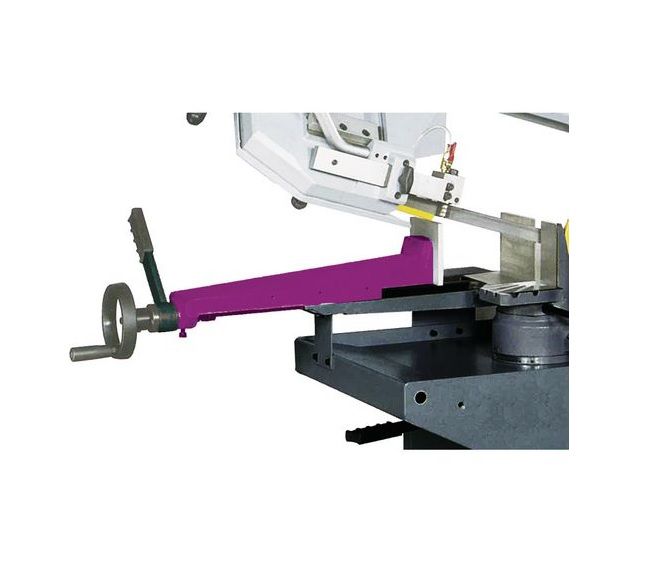

  • Quick-action vice adjustable by handwheel. Clamping the workpiece with a handy quick release lever
  • Easy to read scale for angle adjustment
  • Overload protection
  • Continuously adjustable saw band speed 20 - 90 m / min.
  • Speed change possible during operation
  • Includes material stop, bi-metal blade, substructure, coolant pump



Technical details

Cutting ranges

  • 0° round (full material): 225 mm
  • 0° quadratic (full material): 190 mm
  • 0° rectangle horizontal (full material): 150 x 245 mm
  • +45° round (full material): 145 mm
  • +45° quadratic (full material): 150 mm
  • +45° rectangle horizontal (full material): 190 x 150 mm
  • +60° round (full material): 90 mm
  • +60° quadratic (full material): 90 mm
  • +60° rectangle horizontal (full material): 120 x 90 mm
  • Explanation Cutting range: Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).

Dimensions and weights

  • Max. width/depth: 985 mm
  • Max. height: 1700 mm
  • Length approx.: 1400 mm
  • Width/depth approx.: 685 mm
  • Weight approx.: 185 kg

Electrical Data

  • Drive motor output: 1.5 kW
  • Engine power coolant pump: 90 W
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Machine data

  • Saw band speed(s): 20 – 90 m/min
  • Saw band length: 2480 mm
  • Saw band width: 27 mm
  • Saw band thickness: 0.9 mm
  • Cutting angle: 0 – 60 °
  • Feed: infinitely variable
  • Lifting the saw bow: Manual
  • VPE: 1



S275NV Optimum Optisaw Bandsaw Manual
