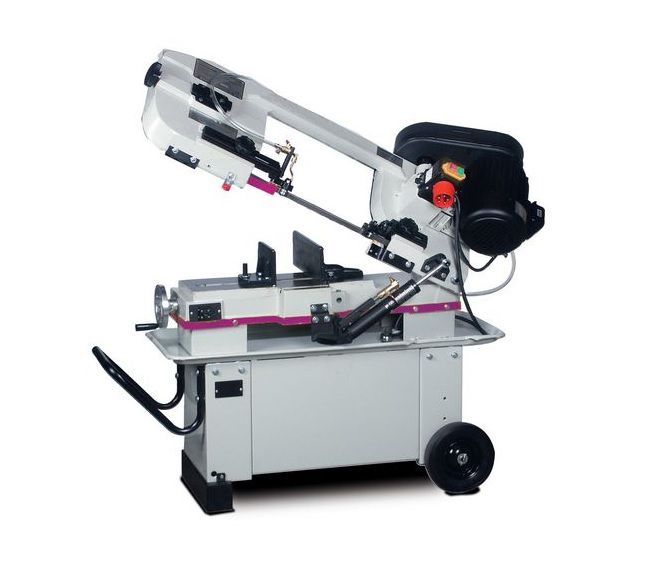

Sturmer Optimum OPTIsaw S 181 Metal Cutting Bandsaw 750W 415v
Product Code: STU/3300181
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,099.99 Inc. VAT
£1,749.99 Exc. VAT
Sturmer Optimum
OPTIsaw S 181 Metal Cutting Bandsaw 750W 415v
ref: 3300181
Key Features
- OPTI-saw S 181 4 Speed metal cutting bandsaw + 180mm max sawing dia + silent running + quick action vise + mobile base unit + 750W motor 415v

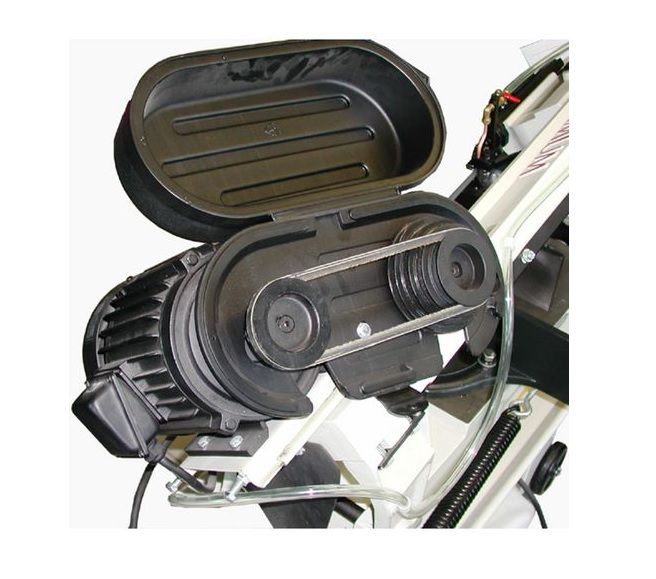

- The metal band saw for demanding sawing work. With drive belt and 4 sawing speeds
- Silent run
- Stable cast execution
- Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
- Micro switch for automatic limit switch
- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel
- Ball bearing saw band guide

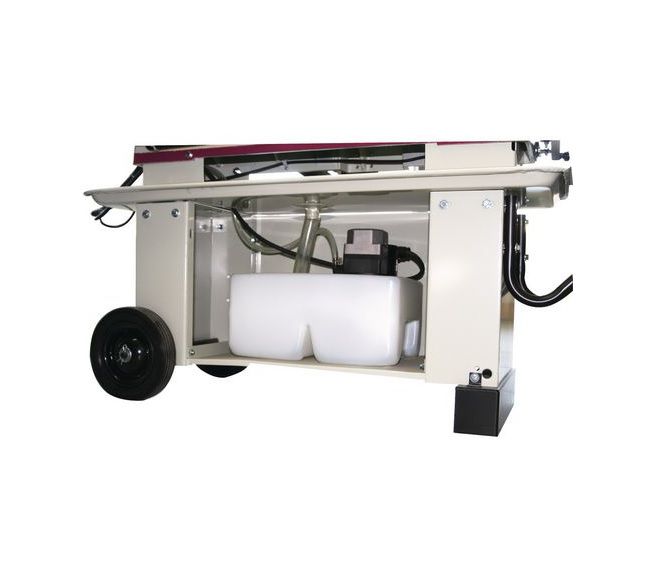

- Robust machine base with large wheels and handy transport handle for easy location change of the machine

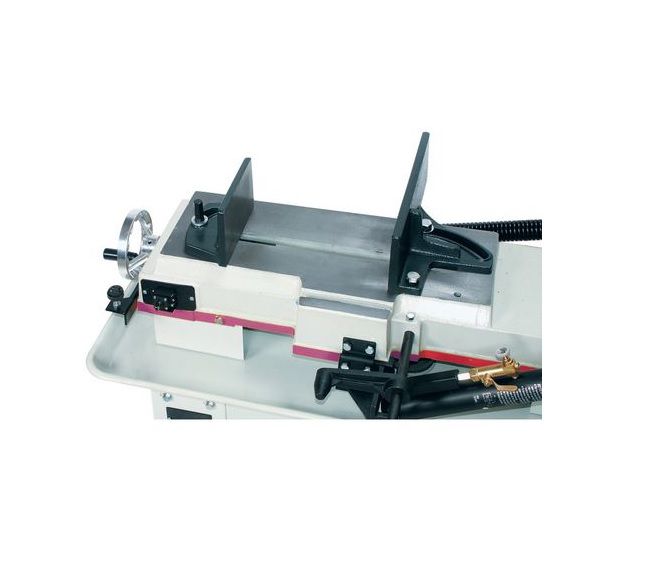

- Adjustable material stop for serial work
- Circuit breaker for the belt cover
- Fully equipped, allowing the user to be productive immediately after commissioning
- Includes bi-metal blade, material stop, substructure
Technical details
Cutting ranges
- 0° round (full material): 180 mm
- 0° quadratic (full material): 180 mm
- 0° rectangle horizontal (full material): 240 x 180 mm
- 0° rectangle upright (full material): 50 x 300 mm
- +45° round (full material): 110 mm
- +45° quadratic (full material): 150 mm
- +45° rectangle horizontal (full material): 110 x 170 mm
- Explanation Cutting range: Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Max. width/depth: 600 mm
- Max. height: 1550 mm
- Work table height: 530 mm
- Length approx.: 1295 mm
- Width/depth approx.: 450 mm
- Height approx.; 1060 mm
- Weight approx.: 130 kg
Electrical Data
- Drive motor output: 0,75 kW
- Engine power coolant pump: 90 W
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Machine data
- Saw band speed(s); 21 / 33.5 / 45 / 50 m/min
- Saw band length: 2362 mm
- Saw band width: 19 mm
- Saw band thickness: 0.9 mm
- Cutting angle: 0 – 45 °
- Feed: infinitely variable
- Lifting the saw bow; Manual
- VPE: 1
