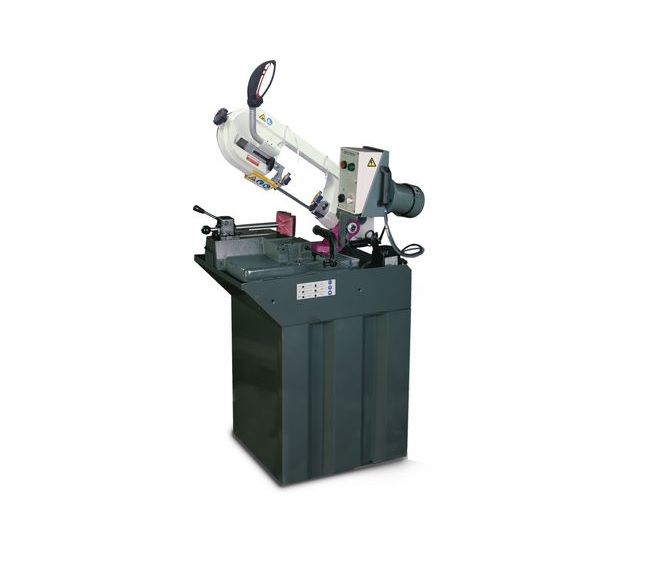

Sturmer Optimum OPTIsaw S 150G Metal Cutting Bandsaw 1100W 230v
Product Code: STU/3300150
Brand: Stuermer
Available to Order Please Call
01726 828 388
£1,799.99 Inc. VAT
£1,499.99 Exc. VAT
Sturmer Optimum
OPTIsaw S 150G Metal Cutting Bandsaw 1100W 230v
ref: 3300150
Key Features
- OPTI-saw S 150G Vario OPTIsaw Vario speed metal cutting bandsaw (20-65 m/min) + 150x160mm max sawing cap + silent running + quick action vise + 1100W motor 230v
- Band saw for metalworking with miter-pivoting saw bow and infinitely adjustable saw band speed
- Silent run
- Base plate and saw bow made of cast iron
- Stable saw frame, therefore quiet and low-vibration run
- Easy to read scale for angle adjustment
- As standard with high-quality bi-metal saw band
- Saw band tension adjustable on the front side via handwheel
- Adjustable material stop for serial work
- Quick hold of the workpiece by quick-action vice
- Pushbutton Manual saw band switches the blade of the saw blade on and off
- Ball bearing saw band guide
- Robust substructure
- Fully equipped machine; whereby the user can work immediately after commissioning
- Includes material stop, bi-metal blade, collant system, substructure
Technical details
Cutting ranges
- 0° round (full material): 150 mm
- 0° quadratic (full material): 160 mm
- 0° rectangle horizontal (full material): 150 x 160 mm
- +45° round (full material): 105 mm
- +45° quadratic (full material): 105 mm
- +45° rectangle horizontal (full material): 105 x 130 mm
- +60° round (full material): 65 mm
- +60° quadratic (full material): 65 mm
- +60° rectangle horizontal (full material): 65 x 65 mm
- Explanation Cutting range: Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Max. length: 1120 mm
- Max. width/depth: 720 mm
- Max. height: 1590 mm
- Length approx.: 930 mm
- Width/depth approx.: 510 mm
- Height approx.: 1240 mm
- Weight approx.: 100 kg
Electrical Data
- Drive motor output: 1,1 kW
- Engine power coolant pump: 50 W
- Supply voltage; 230 V
- Mains frequency: 50 Hz
Machine data
- Saw band speed(s): 20 – 65 m/min
- Speed levels: stepless
- Saw band length: 1735 mm
- Saw band width: 12.7 mm
- Saw band thickness: 0.9 mm
- Cutting angle: 0 – 60 °
- Feed: Manual
- VPE; 1
