Sturmer Optimum OPTIsaw S 131GH Metal Cutting Bandsaw and Stand 1100W 230v

X
Product Code: STU/3300131
Brand: Stuermer
Available to Order Please Call
01726 828 388
£1,319.99 Inc. VAT
£1,099.99 Exc. VAT
Stuermer

Sturmer Optimum

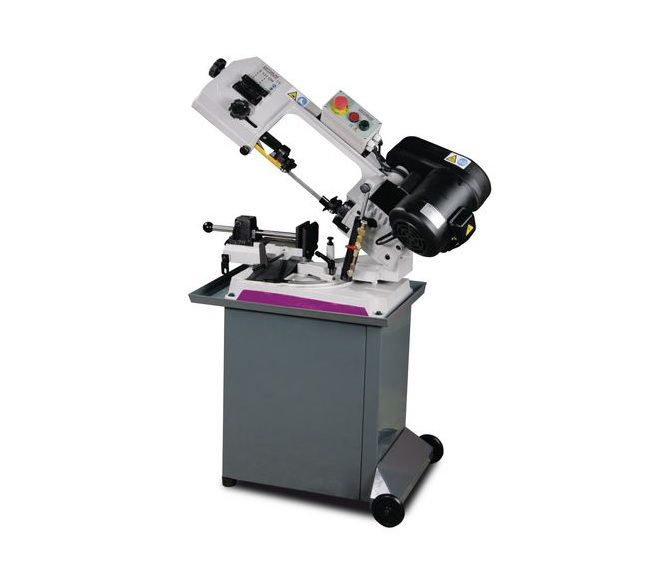

OPTIsaw S 131GH Metal Cutting Bandsaw and Stand 1100W 230v

ref: 3300131



Key Features

  • OPTI-saw S 131GH OPTIsaw 3 Speed metal cutting bandsaw + 100x145mm max sawing cap + silent running + quick action vise + mobile base unit + 1100W motor 230v
  • Metal band saw ideal for light sawing work. Miter saws from -45 ° to 60 ° via swiveling saw bow
  • Circuit breaker for the belt cover and the saw band cover in low-voltage version
  • Separate emergency stop impact switch
  • Low-voltage electronics 24 V
  • Silent run
  • Mobile machine base
  • Ball bearing saw band guide
  • Three speed levels for a wide range of materials
  • Micro switch for automatic limit switch

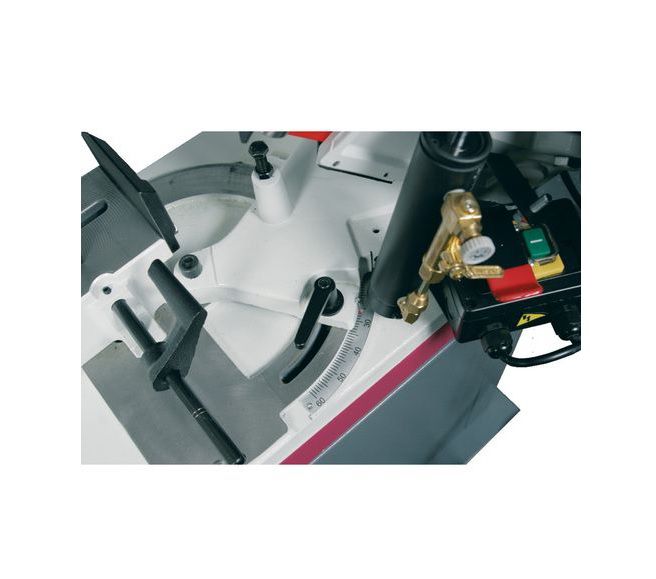

  • Easy to read scale for angle adjustment
  • As standard with high-quality bi-metal saw band

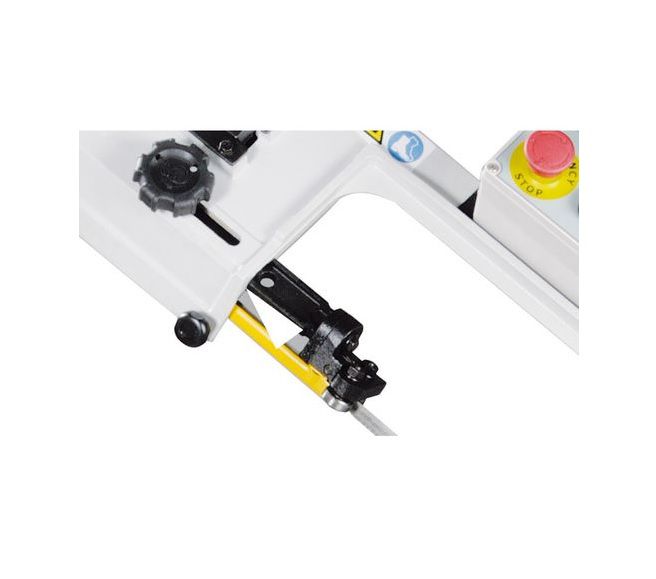

  • Saw band tension adjustable on the front side via handwheel
  • Adjustable material stop for serial work
  • Quick-action vice for fast workpiece clamping
  • With a powerful belt drive
  • Includes material stop, bi-metal blade, base.



Technical details

Cutting ranges

  • 0° round (full material): 128 mm
  • 0° rectangle horizontal (full material): 100 x 145 mm
  • -45° round (full material): 90 mm
  • -45° rectangle horizontal (full material): 70 x 85 mm
  • +45° round (full material): 90 mm
  • +45° rectangle horizontal (full material): 70 x 85 mm
  • +60° round (full material): 45 mm
  • +60° rectangle horizontal (full material); 45 x 55 mm
  • Explanation Cutting range: The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).

Dimensions and weights

  • Max. length: 1085 mm
  • Max. height: 1300 mm
  • Length approx.: 965 mm
  • Width/depth approx.: 498 mm
  • Height approx.: 978 mm
  • Weight approx.: 78 kg

Electrical Data

  • Drive motor output: 1,1 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Machine data

  • Saw band speed(s): 22 / 31 / 55 m/min
  • Saw band length; 1638 mm
  • Saw band width: 13 mm
  • Saw band thickness: 0,65 mm
  • Cutting angle: -45 – +60 °
  • Feed: infinitely variable
  • Lifting the saw bow: Manual
  • VPE: 1



S131GH Optimum Optisaw Bandsaw Manual
