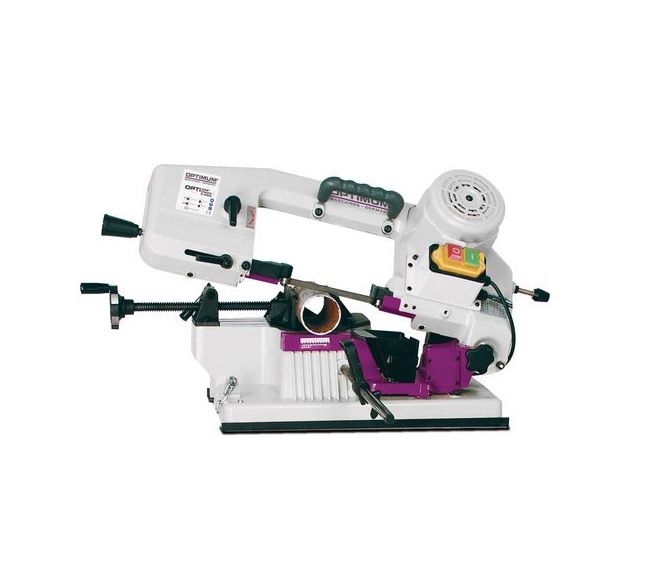

Sturmer Optimum OPTIsaw S 100G Portable Metal Cutting Bandsaw 370W 230v

X
Product Code: STU/3300100
Brand: Stuermer
Low Stock - Please Call For Availability
£1,031.99 Inc. VAT
£859.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Optimum

OPTIsaw S 100G Portable Metal Cutting Bandsaw 370W 230v

ref: 3300100



Key Features

  • OPTI-saw S 100G Portable metal cutting bandsaw + quick action vise + vario cutting speeds 30-80 m/mi+ automatic lowering of the saw bar + fixed base att w vise + 370W motor 230v
  • Quick-action vice for fast workpiece clamping
  • Saw bar can be swiveled from 0 ° to 45 ° to allow angled saw cuts
  • Easy to read scale for angle adjustment
  • Micro switch for automatic limit switch
  • Automatic lowering of the saw bar via three-stage adjustable saw bar lowering pressure
  • As standard with high-quality bi-metal saw band

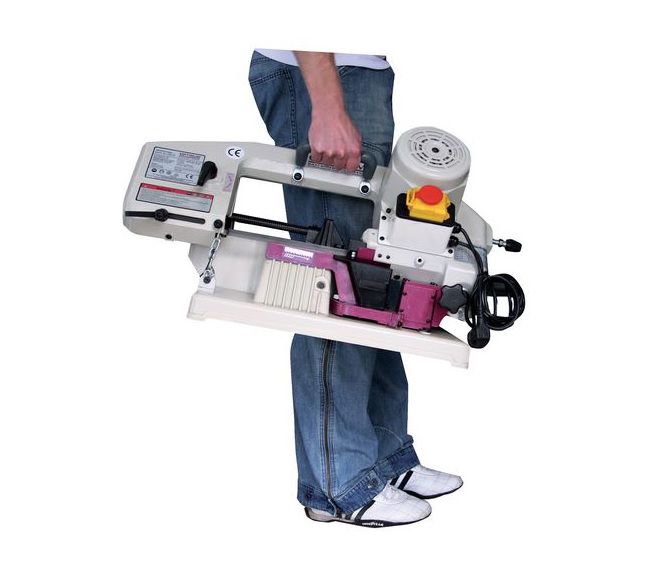

  • Large, handy handle and low weight allows easy transport to the construction site
  • Adjustable material stop for serial work
  • Fully equipped machine; The user can work productively immediately after commissioning
  • transport safety
  • Includes material stop, operating tool, bi-metal blade



Technical details

Cutting ranges

  • 0° round (full material): 100 mm
  • 0° quadratic (full material): 100 mm
  • 0° rectangle horizontal (full material): 100 x 150 mm
  • +45° round (full material): 65 mm
  • +45° quadratic (full material): 60 mm
  • +45° rectangle horizontal (full material): 60 x 100 mm
  • Explanation Cutting range: The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).

Dimensions and weights

  • Max. length: 950 mm
  • Max. width/depth: 660 mm
  • Max. height: 820 mm
  • Length approx.: 850 mm
  • Width/depth approx.: 300 mm
  • Height approx.: 680 mm
  • Weight approx.: 23 kg

Electrical Data

  • Drive motor output: 0.37 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Machine data

  • Saw band speed(s): 45 m/min
  • Saw band length: 1470 mm
  • Saw band width: 13 mm
  • Saw band thickness: 0,65 mm
  • Cutting angle: 0 – 45 °
  • VPE: 1



S100G Optimum Optisaw Bandsaw Manual
