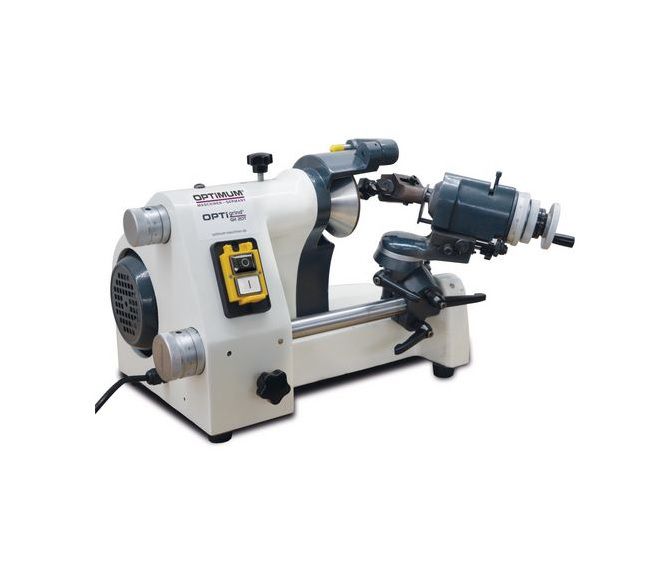

Sturmer Optimum OPTIgrind GH 20 T Tool Grinding Machine 370W 415v

X
Product Code: STU/3100125
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,199.99 Inc. VAT
£999.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Optimum

OPTIgrind GH 20 T Tool Grinding Machine 370W 415v

ref: 3100125



Key Features

  • OPTI-grind GH 20T OPTIgrind Multi-app tool grinding machine + generous accessory package for multi operations + 370W motor 415v
  • Universal use thanks to versatile swivel and adjustment options
  • Many pan and adjustment options for making engraving stylus
    (cylindrical, centric, conical)
  • For grinding punches, twist drills, electrodes, turning tools, centering tips, etc.
  • High precision due to robust machine body and vibration-free driven precision grinding spindle
  • Easy handling and operation

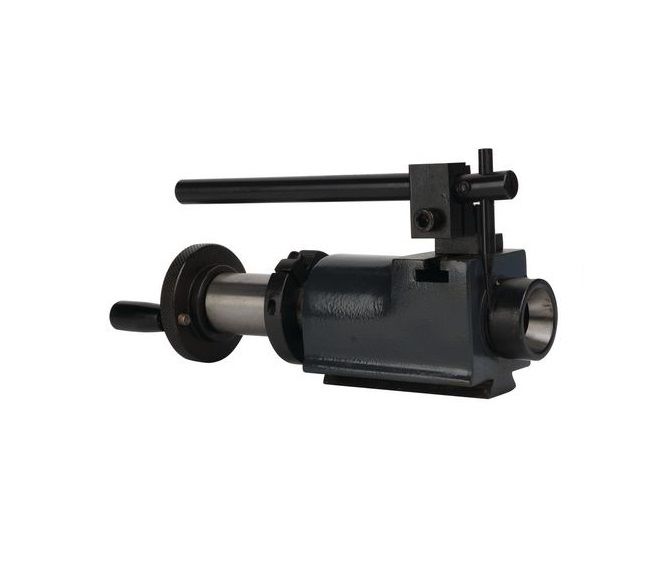

  • Index head with 24 locking positions
  • Adjustable puller



Technical details

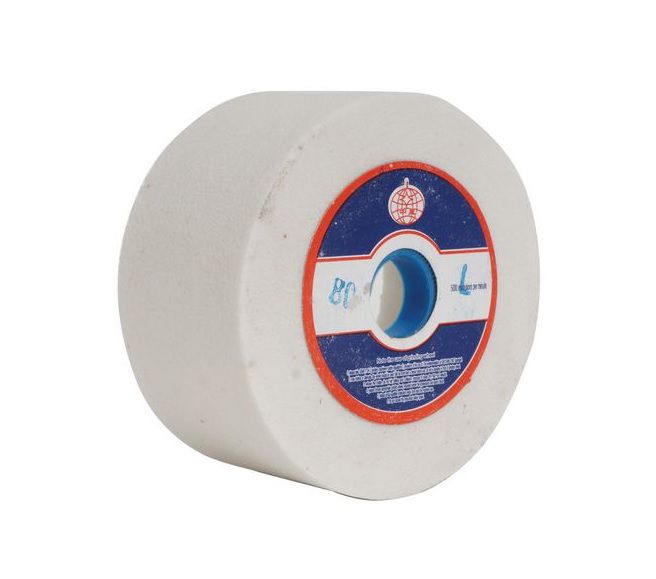

  • Grinding disc speed, diamond: 5000 min¯¹
  • Max. grinding speed: 35 m/s
  • Speed motor: 2750 min¯¹
  • Tool holder travel: 140 mm
  • Tool holder fine adjustment: 18 mm
  • Longitudinal fine adjustment: 6 mm
  • Adjustable angle vertical/rear side: 0 – 40 °
  • Adjustable angle horizontal/conical grinding: 0 – 180 °
  • Adjustable angle negative: 0 – 52 °
  • Latching setting angle of rotation: 22 x 15 / 180 °
  • Clamping range: 1 – 12 mm

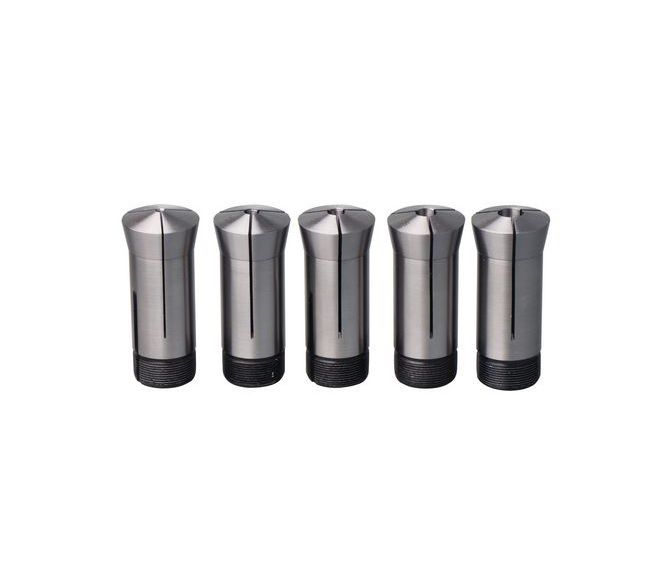

  • Clamping jaw type: 385E (5C), DIN 6341
  • Explanation about latching setting angle of rotation: Two detent positions for regrind drill are occupied
  • VPE: 1

Dimensions and weights

  • Length approx.: 350 mm
  • Width/depth approx.: 450 mm
  • Height approx.: 340 mm
  • Weight approx.: 45 kg

Electrical Data

  • Drive motor output: 0.37 kW
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz
