Sturmer Optimum OPTIgrind GH 15T Drill Grinding Machine 450W 230v

Sturmer Optimum

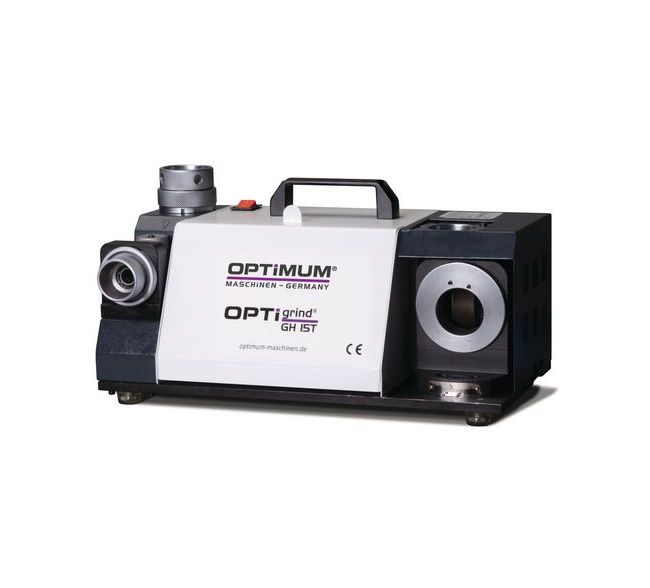

OPTIgrind GH 15T Drill Grinding Machine 450W 230v

ref: 3100115

• OPTI-grind GH 15 T 3-30mm Drill grinding machine + 11 collets (03-30mm) + 0.45kW 230v motor.
• Easy operation for precise and cost-effective grinding of double-edged twist drills
• Drill loops with no previous knowledge – clean, fast and precise
• Easy to transport
• Complete equipment with ER collets in the interior of the machine
• The cutting edges of the drill are fixed in the collet holder by means of the adjusting aid in a defined position and introduced in a predetermined order in the grinding openings to grind the blades with a short rotational movement of the collet holder

• Speed: 5000 min¯¹
• Grinding capacity drill diameter: 3 – 30 mm
• Tip sharpening angle: 90 – 145 °
• VPE: 1

Dimensions and weights

• Length approx.: 450 mm
• Width/depth approx.: 240 mm
• Height approx.: 270 mm
• Weight approx.: 33 kg

Electrical Data

• Drive motor output: 0,45 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
