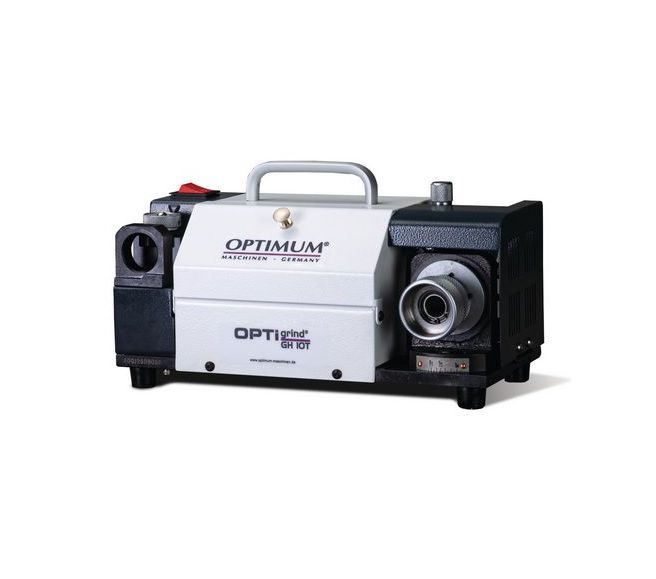

Sturmer Optimum OPTIgrind GH 10T Drill Grinding Machine 180W 230v

Sturmer Optimum

OPTIgrind GH 10T Drill Grinding Machine 180W 230v

ref: 3100110

• OPTI-grind GH 10 T 3-13mm Drill grinding machine + 11 collets (02-13mm) + diamond grinding stone for perfect finish + 180W motor 230v
• Easy operation for precise and cost-effective grinding of double-edged twist drills
• Drill loops with no previous knowledge - clean, fast and precise
• Easy to transport
• Steel disc coated with cubic crystalline boron nitride
• Complete equipment with ER collets in the interior of the machine

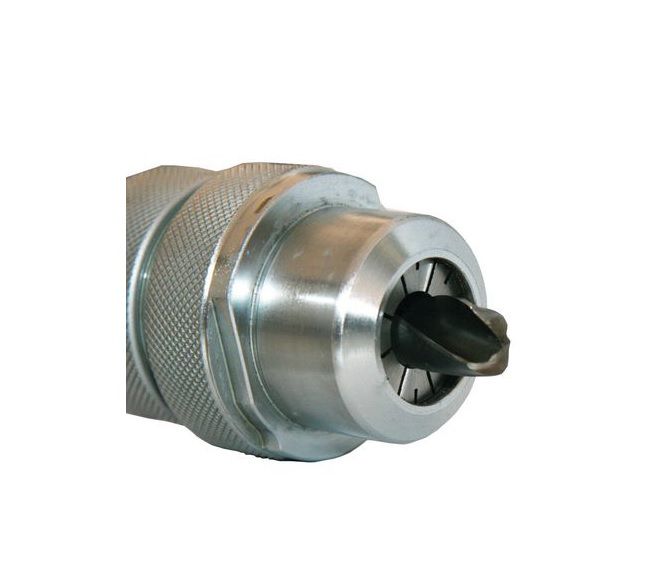

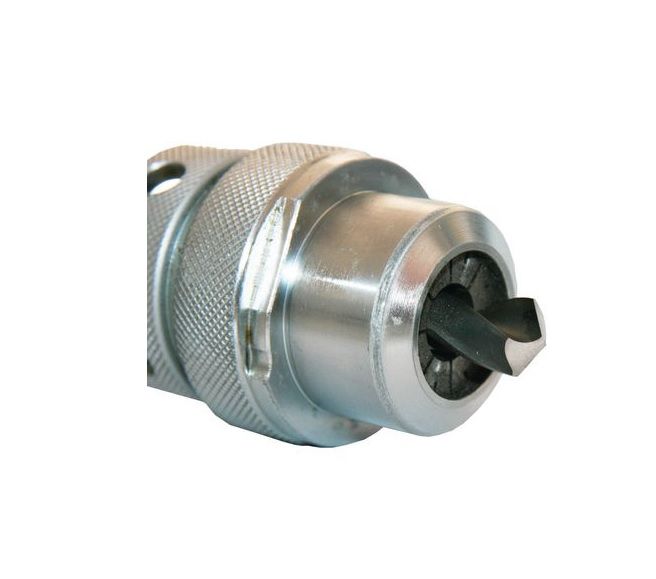

• The cutting edges of the drill are fixed in the collet holder by means of the adjusting aid in a defined position and introduced in a predetermined order in the grinding openings to grind the blades with a short rotational movement of the collet holder

• Speed: 5300 min¯¹
• Grinding capacity drill diameter: 3 – 13 mm
• Tip sharpening angle: 90 – 135 °
• VPE: 1

Dimensions and weights

• Length approx.: 310 mm
• Width/depth approx.: 180 mm
• Height approx.: 190 mm
• Weight approx.: 9,5 kg

Electrical Data

• Drive motor output: 0,18 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
