Sturmer Optimum OPTIdrill DQ 32 Upright Pillar Drill 1100W 415v

X
Product Code: STU/3191049
Brand: Stuermer
Low Stock - Please Call For Availability
£1,319.99 Inc. VAT
£1,099.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Optimum

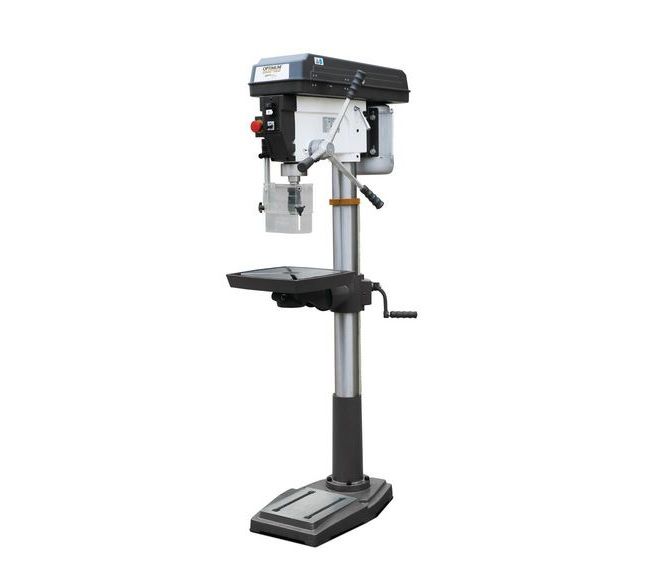

OPTIdrill DQ 32 Upright Pillar Drill 1100W 415v

ref: 3191049



Key Features

  • DQ 32 OPTI-drill 30mm (MK4) 9 Speed drill (120-1810 rpm) + GATES toothed V belt drive + + separate emergency STOP switch + guaranteed concentricity accuracy to 0.03mm + large base plate w T Slots + 1100W motor 415v

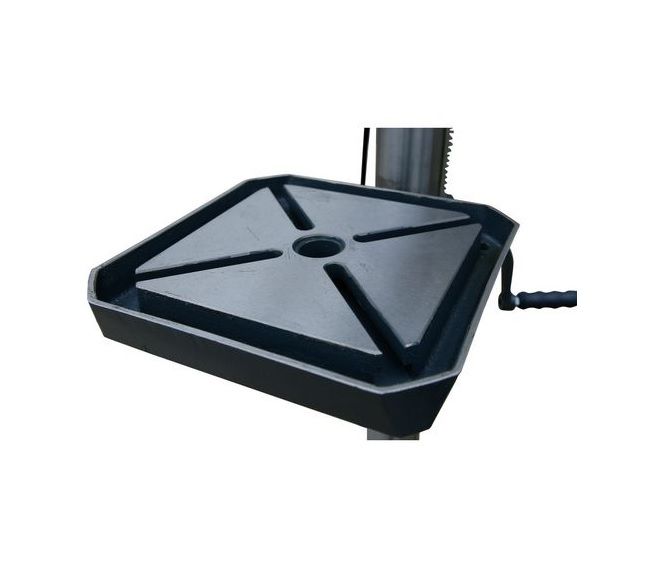

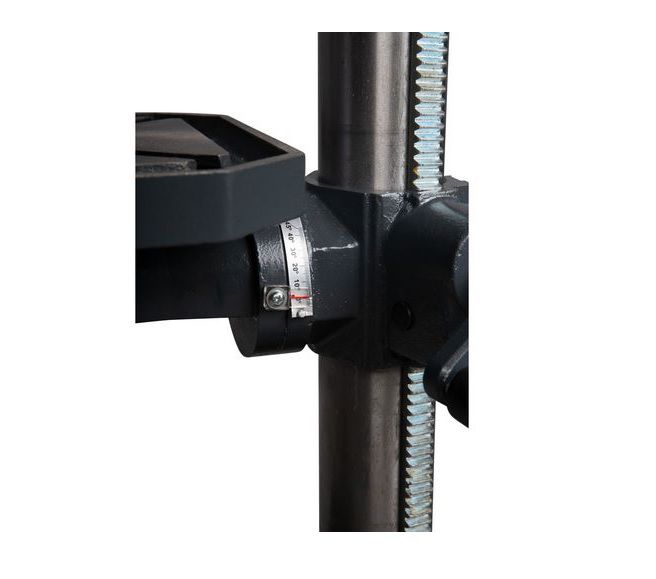

  • Precisely machined drilling table, ± 45° sideways tiltable and 360° rotatable
  • Massive, large dimensioned base plate with grooves, heavily ribbed at the backside
  • Ground multi-tooth driver

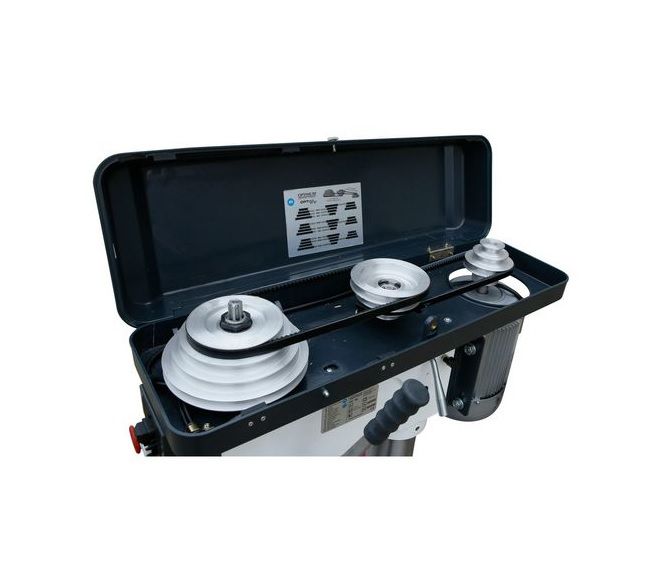

  • Best power transmission through aluminium pulleys in combination with toothed GATES quality V-belt
  • Guaranteed concentricity accuracy better than 0.03 mm measured in the drill spindle
  • Drill spindle with precision ball bearing
  • Quick action drill chuck as standard equipment
  • Belt cover with safety switch
  • Easy to use switch according to IP 54
  • Separate emergency stop pushbutton switch
  • Includes Quick action drill chuck 1 - 16 mm, T-nuts, Morse taper MK 3/B16 (DQ 25), Morse taper MK 4/B16 (DQ 32), drift punch.



Technical details

Dimensions and weights

  • Column diameter: 92 mm
  • Length approx.: 850 mm
  • Width/depth approx.: 390 mm
  • Height approx.: 1660 mm
  • Weight approx.: 120 kg

Drilling performance

  • Drilling performance steel (S235JR): 30 mm
  • Continuous drilling performance steel (S235JR): 25 mm

Drilling table

  • Workspace length: 355 mm
  • Workspace width: 355 mm
  • T-groove type: diagonal
  • T-groove size: 14 mm
  • T-groove number: 2
  • Rotation: 360 °
  • Angle: 45 °
  • Load bearing capacity: 55 kg
  • Max. distance spindle - drilling table: 640 mm

Electrical Data

  • Drive motor output: 1,1 kW
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz

Machine base

  • Max. distance spindle - machine base: 1170 mm
  • Work area length: 575 mm
  • Work area width: 350 mm
  • Machine base T-groove size: 15 mm
  • Machine base T-groove number: 2
  • Machine base T-groove spacing: 138 mm

Speed range

  • Speed range: 120 – 1810 min¯¹
  • Number of gears: 9

Spindle

  • Quill stroke: 120 mm
  • Spindle chuck: MT 4
  • Reach: 254 mm
  • VPE: 1



OPTIdrill DQ 32 Optimum Pillar Drill Manual
