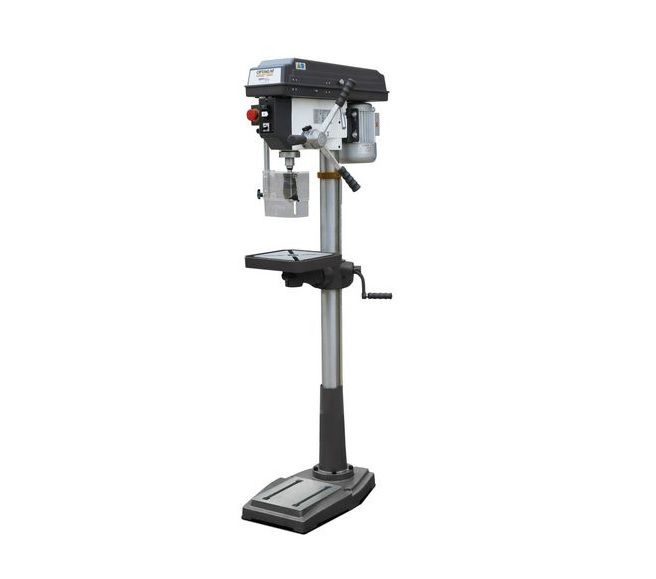

Sturmer Optimum OPTIdrill DQ 25 Upright Pillar Drill 750W 415v

X
Product Code: STU/3191047
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£875.99 Inc. VAT
£729.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Optimum

OPTIdrill DQ 25 Upright Pillar Drill 750W 415v

ref: 3191047



Key Features

  • DQ 25 OPTI-drill 25mm (MK3) 12 Speed drill (200-2440 rpm) + GATES toothed V belt drive + separate emergency STOP switch + guaranteed concentricity accuracy to 0.03mm + large base plate w T Slots + 750W motor 415v

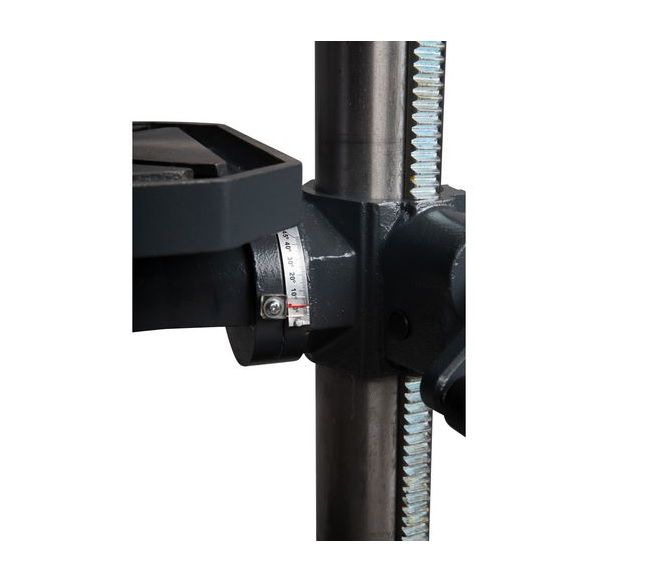

  • Precisely machined drilling table, ± 45° sideways tiltable and 360° rotatable
  • Massive, large dimensioned base plate with grooves, heavily ribbed at the backside

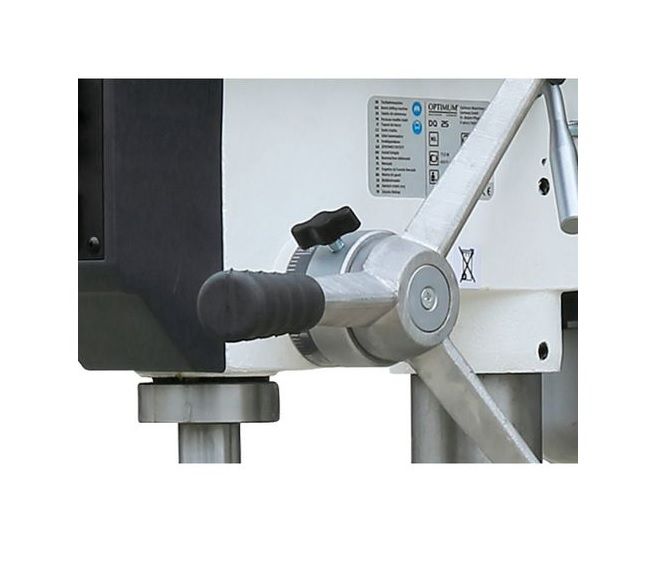

  • Ground multi-tooth driver

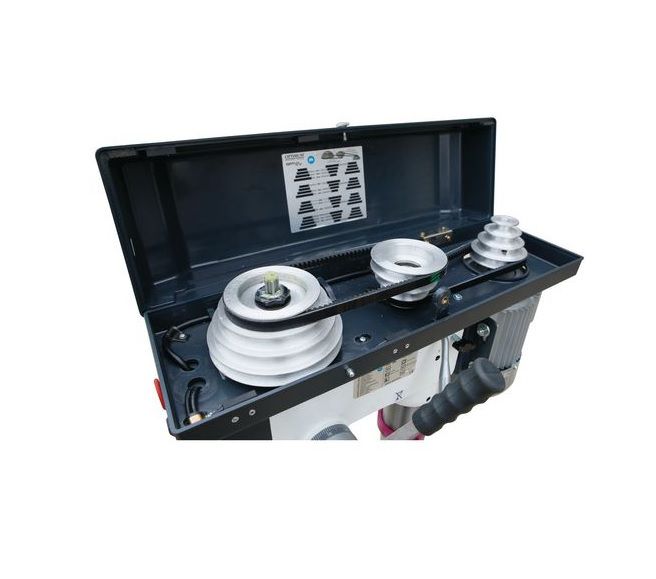

  • Best power transmission through aluminium pulleys in combination with toothed GATES quality V-belt
  • Guaranteed concentricity accuracy better than 0.03 mm measured in the drill spindle
  • Drill spindle with precision ball bearing
  • Quick action drill chuck as standard equipment
  • Belt cover with safety switch
  • Easy to use switch according to IP 54
  • Separate emergency stop pushbutton switch
  • Includes Quick action drill chuck 1 - 16 mm, T-nuts, Morse taper MK 3/B16 (DQ 25), Morse taper MK 4/B16 (DQ 32), drift punch



Technical details

Dimensions and weights

  • Column diameter: 73 mm
  • Length approx.: 700 mm
  • Width/depth approx.: 350 mm
  • Height approx.: 1620 mm
  • Weight approx.: 71 kg

Drilling performance

  • Drilling performance steel (S235JR): 25 mm
  • Continuous drilling performance steel (S235JR): 20 mm

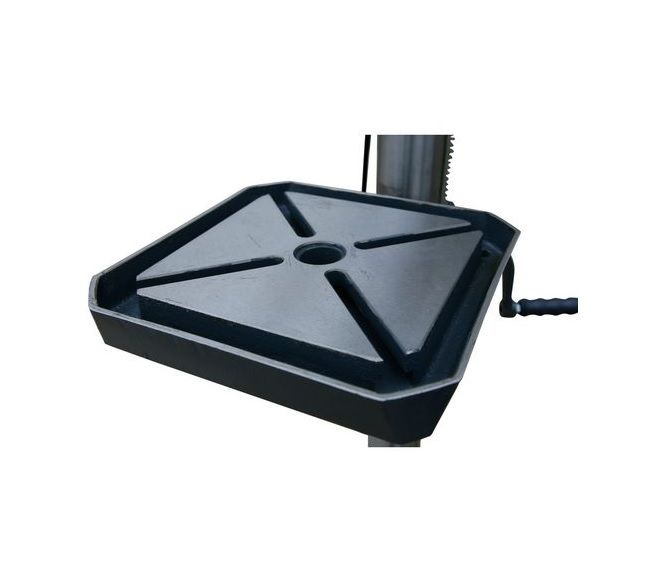

Drilling table

  • Workspace length: 280 mm
  • Workspace width: 280 mm
  • T-groove type: diagonal
  • T-groove size: 14 mm
  • T-groove number: 2
  • Rotation: 360 °
  • Angle: 45 °
  • Load bearing capacity: 40 kg
  • Max. distance spindle - drilling table: 690 mm

Electrical Data

  • Drive motor output: 0,75 kW
  • Supply voltage: 400 V
  • Mains frequency; 50 Hz

Machine base

  • Max. distance spindle - machine base: 1200 mm
  • Work area length: 500 mm
  • Work area width: 300 mm
  • Machine base T-groove size: 15 mm
  • Machine base T-groove number: 2
  • Machine base T-groove spacing: 120 mm

Speed range

  • Speed range: 200 – 2440 min¯¹
  • Number of gears: 12

Spindle

  • Quill stroke: 80 mm
  • Spindle chuck: MK 3
  • Reach; 181 mm
  • VPE: 1
