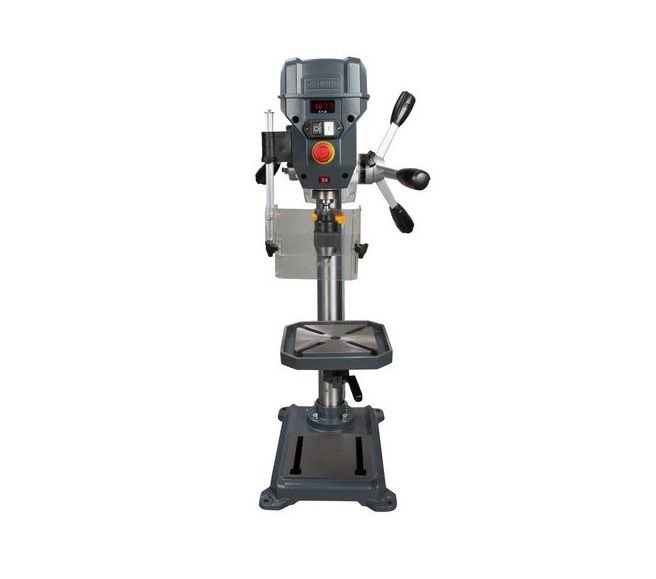

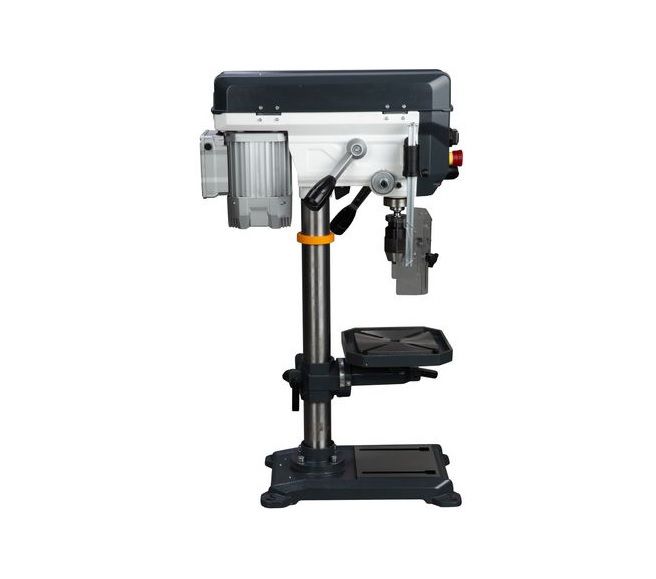

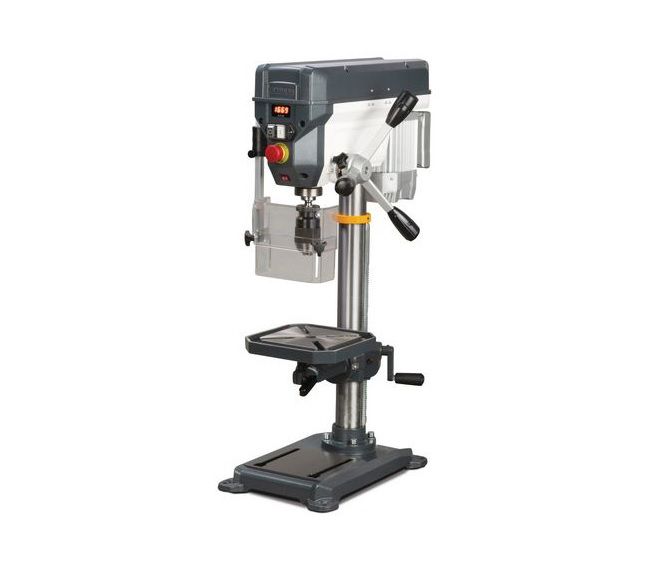

Sturmer Optimum OPTIdrill DQ 20V Bench Mounted Pillar Drill 750W 230v

X
Product Code: STU/3191080
Brand: Stuermer
Low Stock - Please Call For Availability
£719.99 Inc. VAT
£599.99 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Optimum

OPTIdrill DQ 20V Bench Mounted Pillar Drill 750W 230v

ref: 3191080



Key Features

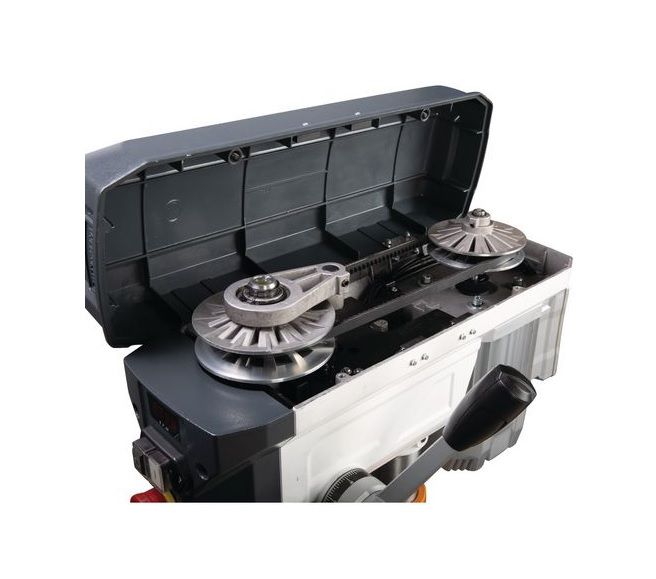

  • DQ 20V OPTI-drill MK2 chuck + 450-2500 rpm VARIO speed range + 5 gears + GATES toothed V belt drive + separate emergency STOP switch + guaranteed concentricity accuracy to 0.02mm + V belt cover safety switch + large base plate w T Slots + 750W motor 230v
  • Easy to operate safety switch according to IP 54
  • Separate emergency-stop pushbutton switch
  • Safety electrical system in 24 V direct voltage
  • Guaranteed concentricity accuracy of less than 0.03 mm measured in the drill spindle
  • Drill spindle with precision ball bearings
  • OPTIMUM quick-action drill chucks in standard scope of delivery
  • Precisely machined, stable drilling table with 2 diagonally running T-slots and circumferential cooling water trough

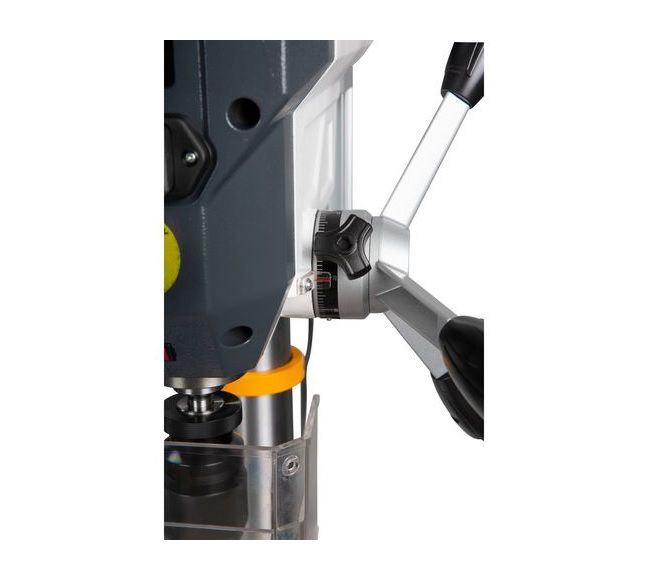

  • Measurement scale for drilling depth
  • V-belt cover with safety switch
  • Largely dimensioned, height-adjustable protective screen with safety switch

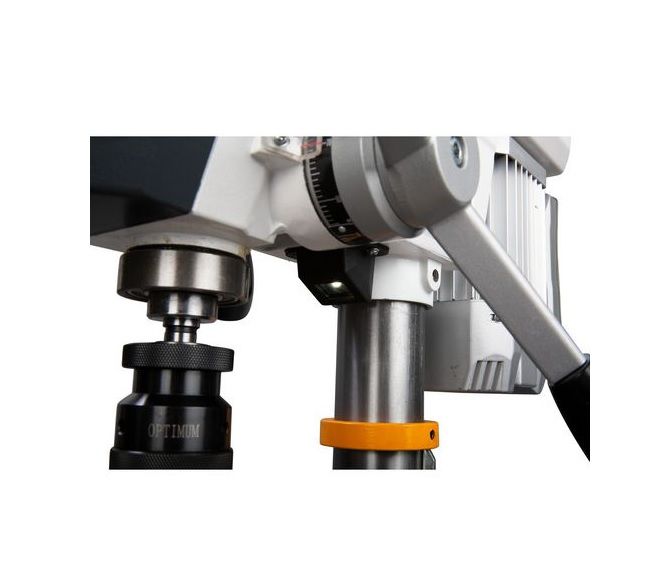

  • Includes Quick action drill chuck 1 - 16 mm, Morse taper MK 2/B16, T-nuts



Technical details

Dimensions and weights

  • Column diameter: 65 mm
  • Length approx.: 581 mm
  • Width/depth approx.: 397 mm
  • Height approx.: 957 mm
  • Weight approx.: 40.7 kg

Drilling performance

  • Drilling performance steel (S235JR); 16 mm
  • Continuous drilling performance steel (S235JR): 14 mm

Drilling table

  • Workspace length: 243 mm
  • Workspace width: 243 mm
  • T-groove type: diagonal
  • T-groove size: 14 mm
  • T-groove number: 2
  • Rotation: 360 °
  • Angle: ± 45 °
  • Load bearing capacity: 15 kg
  • Max. distance spindle - drilling table: 423 mm

Electrical Data

  • Drive motor output: 0,75 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Machine base

  • Max. distance spindle - machine base: 599 mm
  • Work area length: 181 mm
  • Work area width: 187 mm

Speed range

  • Speed range: 450 – 2500 min¯¹
  • Speed control: mechanical

Spindle

  • Quill stroke: 80 mm
  • Spindle chuck: MK 2
  • Reach: 152 mm
  • VPE: 1
