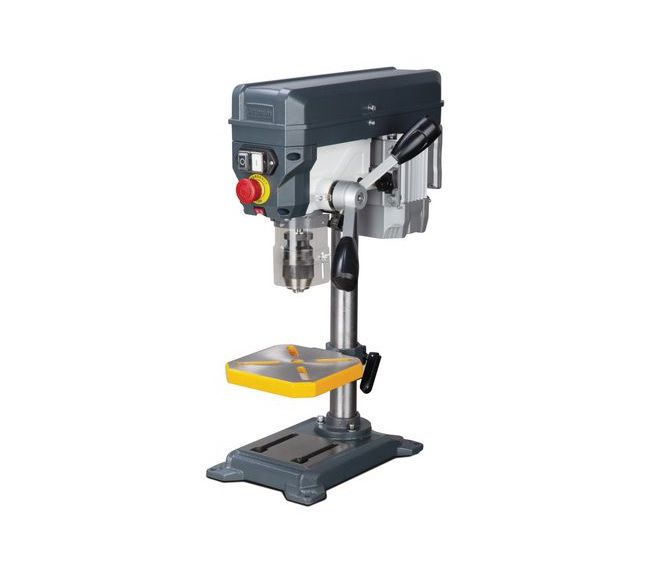

Sturmer Optimum OPTIdrill DQ 14 Bench Mounted Pillar Drill 350W 230v

X
Product Code: STU/3191040
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£287.99 Inc. VAT
£239.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Optimum

OPTIdrill DQ 14 Bench Mounted Pillar Drill 350W 230v

ref: 3191040



Key Features

  • OPTI-drill DQ 14 5 Speed drill (700-2500 rpm) + GATES toothed V belt drive + separate emergency stop switch + guaranteed concentricity accuracy to 0.03mm + LED illumination + 350W motor 230v
  • Separate emergency stop stop switch
  •  Drill depth stop

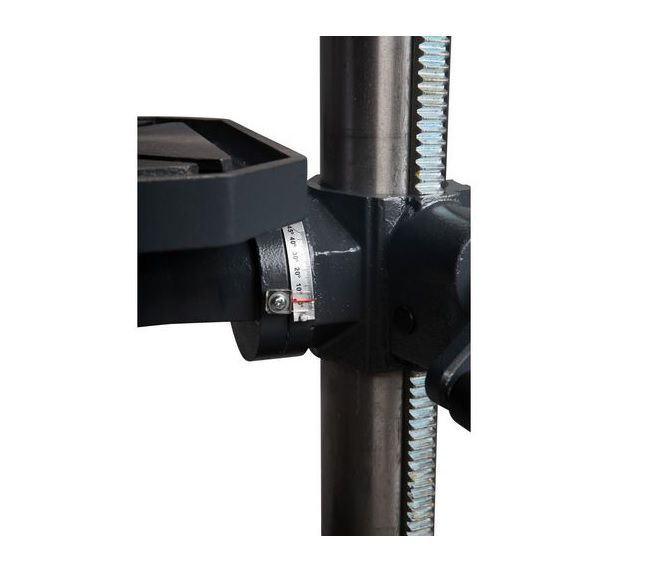

  • Drilling table ± 45° inclinable and 360° rotatable

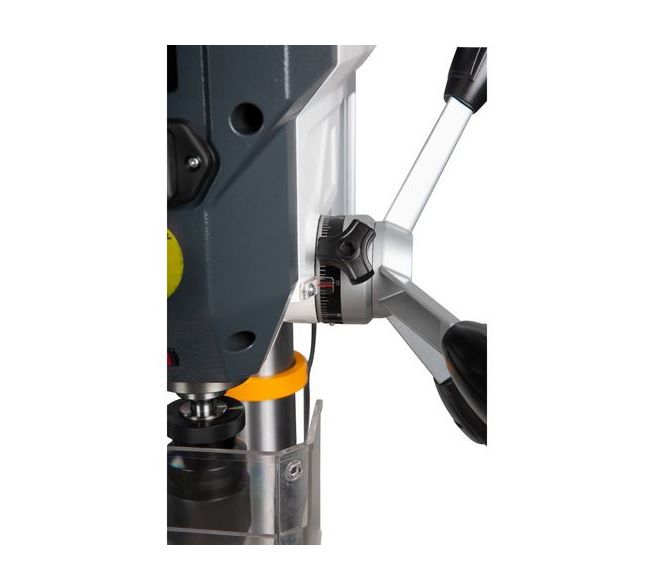

  • One-piece die-cast aluminium quill lever with soft-grip handles
  • Prezision spindle drilling
  • Safety electrics in 24 V DC voltage
  • Guaranteed concentricity accuracy of less than 0.03 mm measured in the drilling sleeve
  • Drilling spindle with preprecision ball bearings

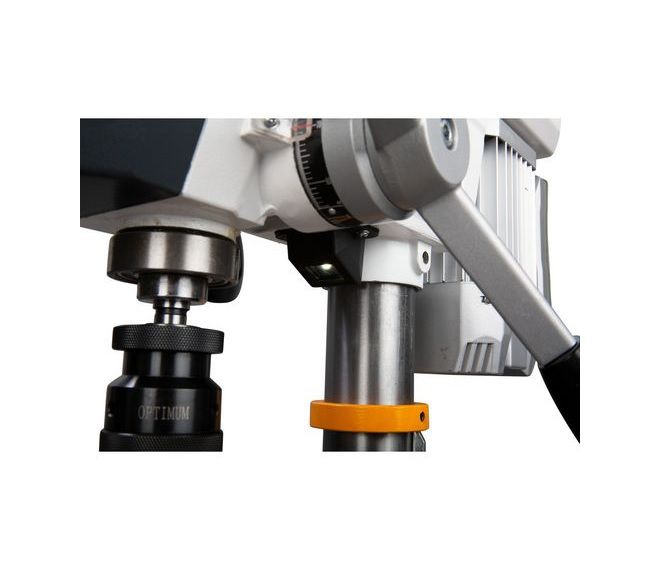

  • High-quality quick-action drill chuck

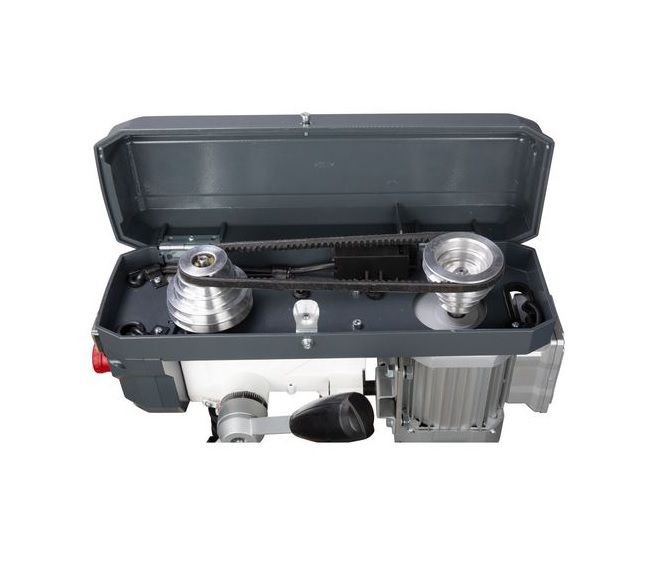

  • GATES quality belt
  • Largely dimensioned base plate with T-slots, heavily ribbed on the rear side
  • Includes Quick action drill chuck 1 – 15.9 mm, T-nuts



Technical details

Dimensions and weights
  • Column diameter: 46mm
  • Length (product) approx.: 472mm
  • Width/depth (product) approx.: 283mm
  • Height (product) approx.: 634mm
  • Net weight approx.: 18,5kg
Drilling performance
  • Drilling performance steel (S235JR): 13mm
  • Continuous drilling performance steel (S235JR): 12mm
Drilling table
  • Drilling table workspace length: 170mm
  • Drilling table workspace width: 170mm
  • Drilling table T-groove type: diagonal
  • Drilling table T-groove size: 14mm
  • Drilling table T-groove number: 2
  • Drilling table rotation: 360°
  • Drilling table angle: ± 45°
  • Drilling table load bearing capacity: 8kg
  • Max. distance spindle – drilling table: 250mm
Speed range
  • Speed range: 700 – 2500min¯¹
  • Number of gears: 5Steps
Electrical Data
  • Drive motor output: 0.35kW
  • Supply voltage: 230V
  • Mains frequency: 50Hz
Machine base
  • Max. distance spindle – machine base: 340mm
  • Machine base workspace length: 138mm
  • Machine base workspace width: 128mm
Spindle
  • Quill stroke: 52mm
  • Spindle chuck: solid/B16
  • Reach: 104mm
  • VPE: 1
