Sturmer Optimum OPTIdrill B 17PRO Basic Bench Mounted Pillar Drill 490W 230v

X
Product Code: STU/3003161
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£587.99 Inc. VAT
£489.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Optimum

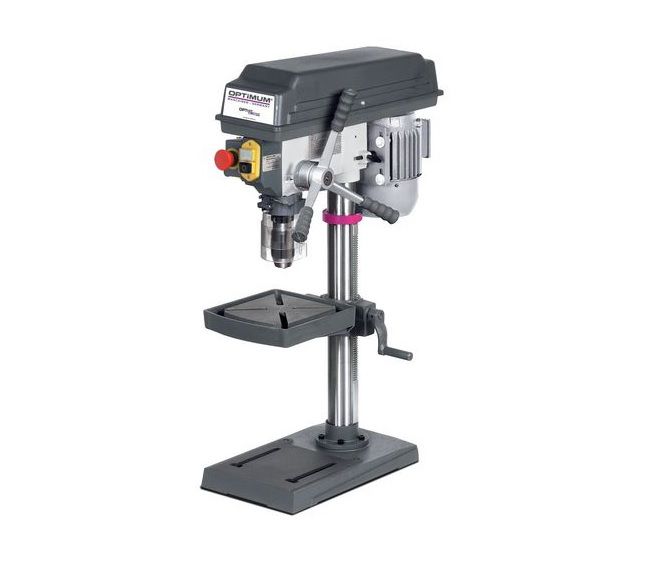

OPTIdrill B 17PRO Basic Bench Mounted Pillar Drill 490W 230v

ref: 3003161



Key Features

  • OPTI-drill B 17PRO basic MK2 chuck + 680-2700 speed range + 5 gears + GATES toothed V belt drive + + separate emergency STOP switch + guaranteed concentricity accuracy to 0.02mm + V belt cover safety switch + large base plate w T Slots + 490W motor 230v
  • Guaranteed concentricity less than 0.02 mm measured in the drilling spindle sleeve
  • Drill spindle with precision ball bearings
  • Premium quick clamping chuck

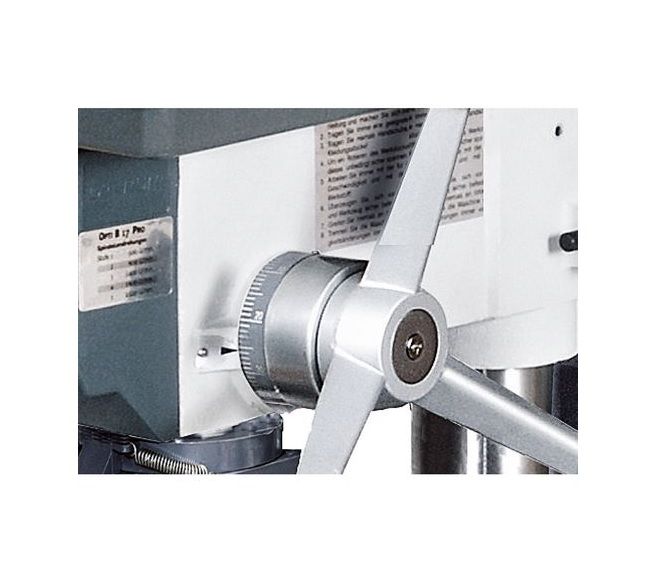

  • Measurement scale for drilling depth

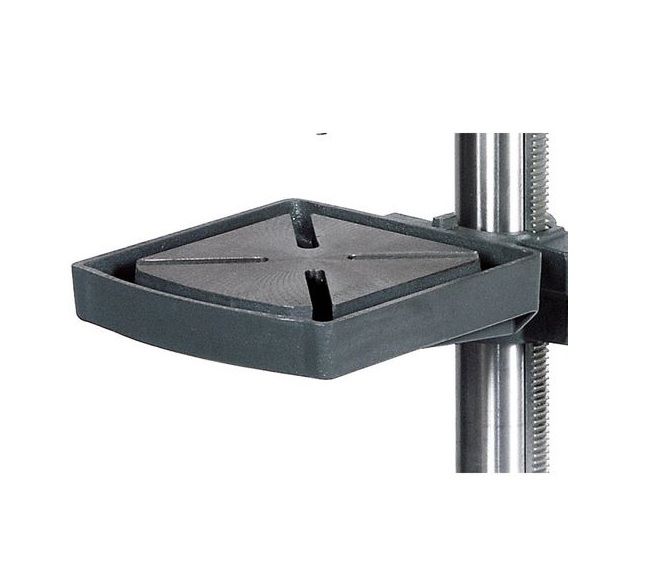

  • Precise workmanship; stable drilling table with diagonal T-slots and all-around cooling water channel

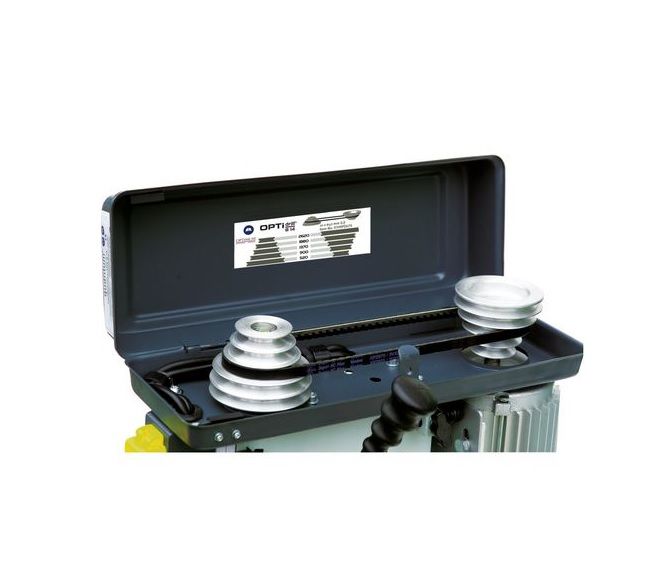

  • V-belt cover with safety switch
  • Single-piece, pressure cast aluminium spindle sleeve lever with Softgrip handles
  • Separate emergency stop button



Technical details

Dimensions and weights

  • Length approx.: 565 mm
  • Width/depth approx.: 275 mm
  • Height approx.: 840 mm
  • Weight approx.: 36.5 kg

Drilling performance

  • Drilling performance steel (S235JR): 15.5 mm
  • Continuous drilling performance steel (S235JR): 12 mm

Drilling table

  • Workspace length: 235 mm
  • Workspace width: 220 mm
  • T-groove type: diagonal
  • T-groove size: 12 mm
  • Max. distance spindle - drilling table: 325 mm

Electrical Data

  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Machine base

  • Max. distance spindle - machine base: 530 mm
  • Work area length: 170 mm
  • Work area width: 180 mm
  • Machine base T-groove size: 14 mm
  • Machine base T-groove number: 2
  • Machine base T-groove spacing: 148 mm
  • Length: 210 mm
  • Width: 215 mm

Motor

  • Spindle motor drive output: 0.49 kW

Speed range

  • Speed range: 680 – 2700 min¯¹
  • Number of gears: 5

Spindle

  • Quill stroke: 65 mm
  • Spindle chuck: MK 2
  • Reach: 152 mm
  • VPE: 1
