Sturmer Metallkraft MBSM 75-201-1 Wide Belt Sander 75mm with Floor Stand 3300W 230v
Product Code: STU/3925271
Brand: Stuermer
Low Stock - Please Call For Availability
£899.99 Inc. VAT
£749.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Metallkraft

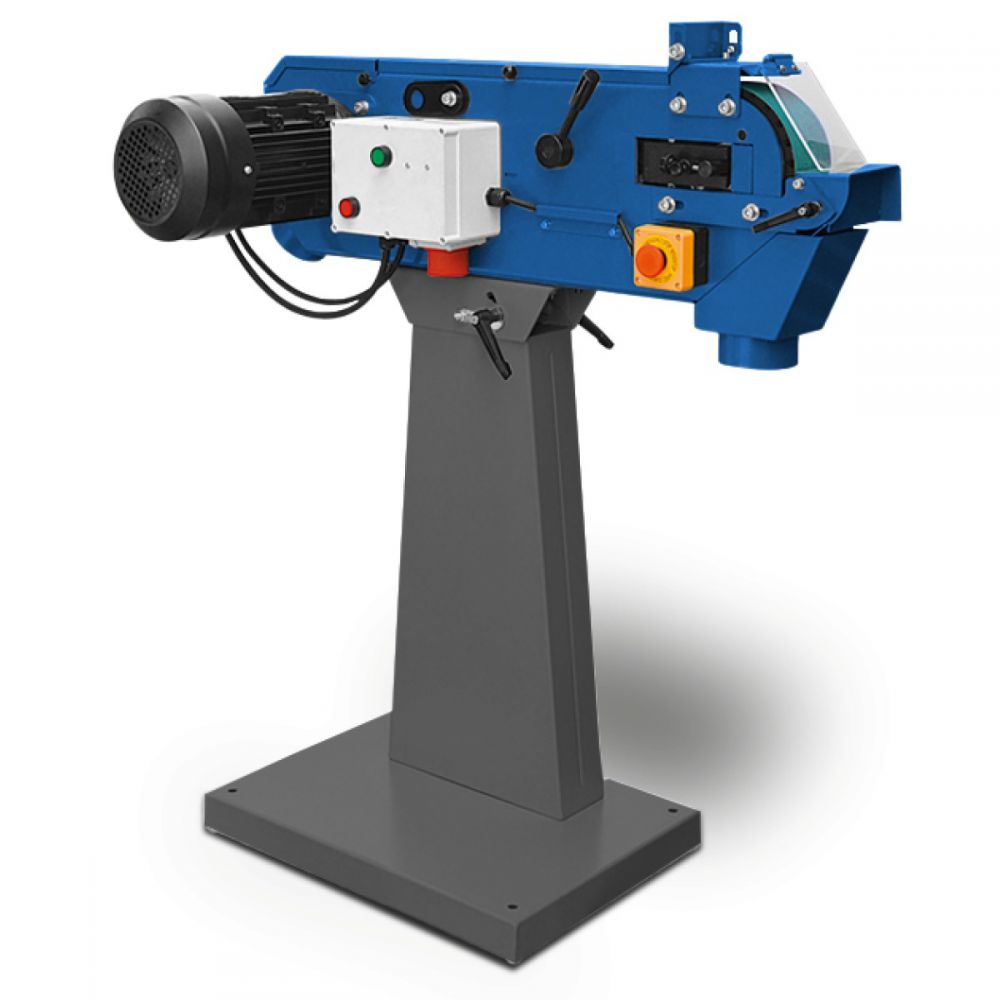

MBSM 75-201-1 Wide Belt Sander 75mm with Floor Stand 3300W 230v
ref: 3925271
Key Features
- Powerful motor and vibration-free operation for the best sanding results

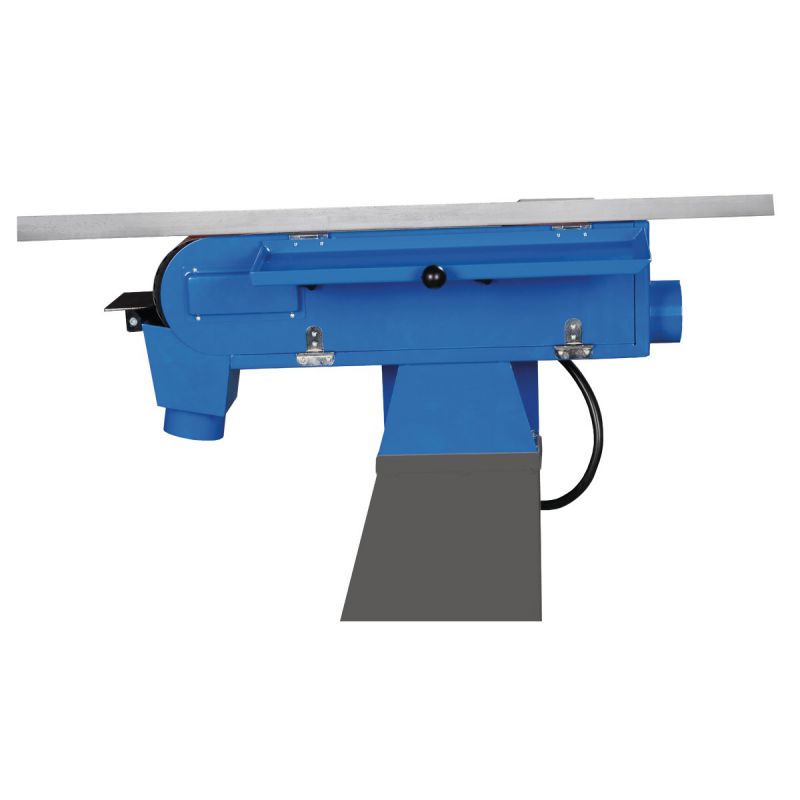

- Continuous face sanding surface thanks to removable attachments enables sanding of even long workpieces
- Quick clamping system enables fast sanding belt changes
- One extraction nozzle each directly on the spark box and on the rear belt roller
- Can be used with and without suction
- Simple adjustment of the belt run via adjusting screw

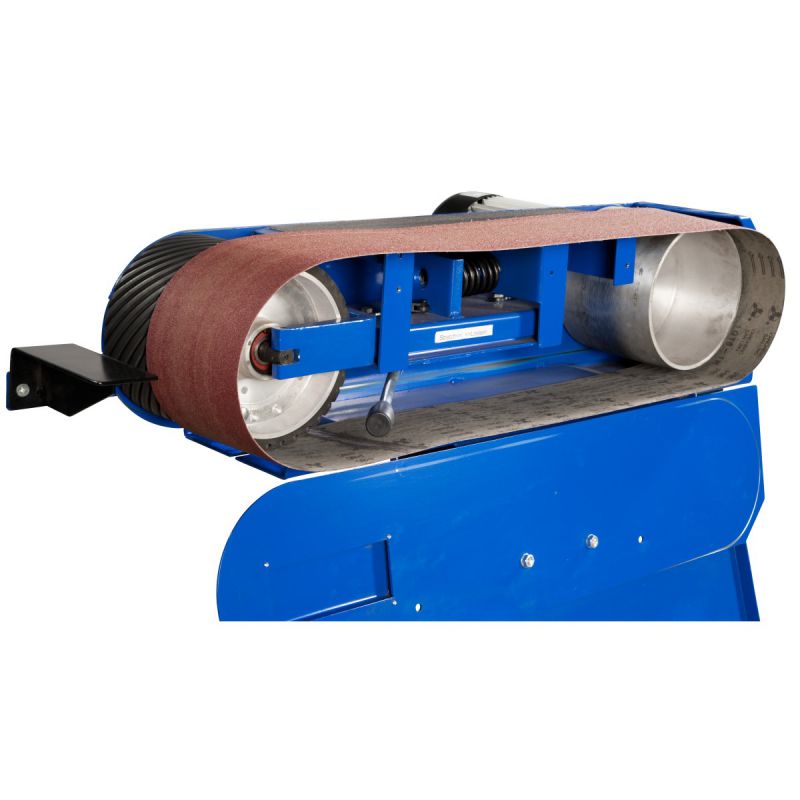

- Automatic retensioning of the sanding belt thanks to spring-loaded belt tensioning system
- Infinitely tiltable sanding unit
- Fold-away protective screen
- Includes Sanding belt K80
Technical details
Dimensions and weights
- Length approx.: 980 mm
- Width/depth approx.: 460 mm
- Height approx.: 1100 mm
- Weight approx.: 83 kg
Electrical Data
- Drive motor output: 3.3 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction
- Extraction duct nominal width outside: 2 × 100 mm
Noise emission
- Emissions sound pressure level at workstation Lp (idling without extraction unit): 87 dB(A)
Sanding machine
- Max. sanding width: 75 mm
- Sanding belt length: 2000 mm
- Sanding belt width: 75 mm
- Graphite support length: 495 mm
- Graphite support width: 75 mm
- Circumferential belt speed(s): 30 m/s
- Drive wheel diameter: 200 mm
- Contact wheel diameter: 200 mm
