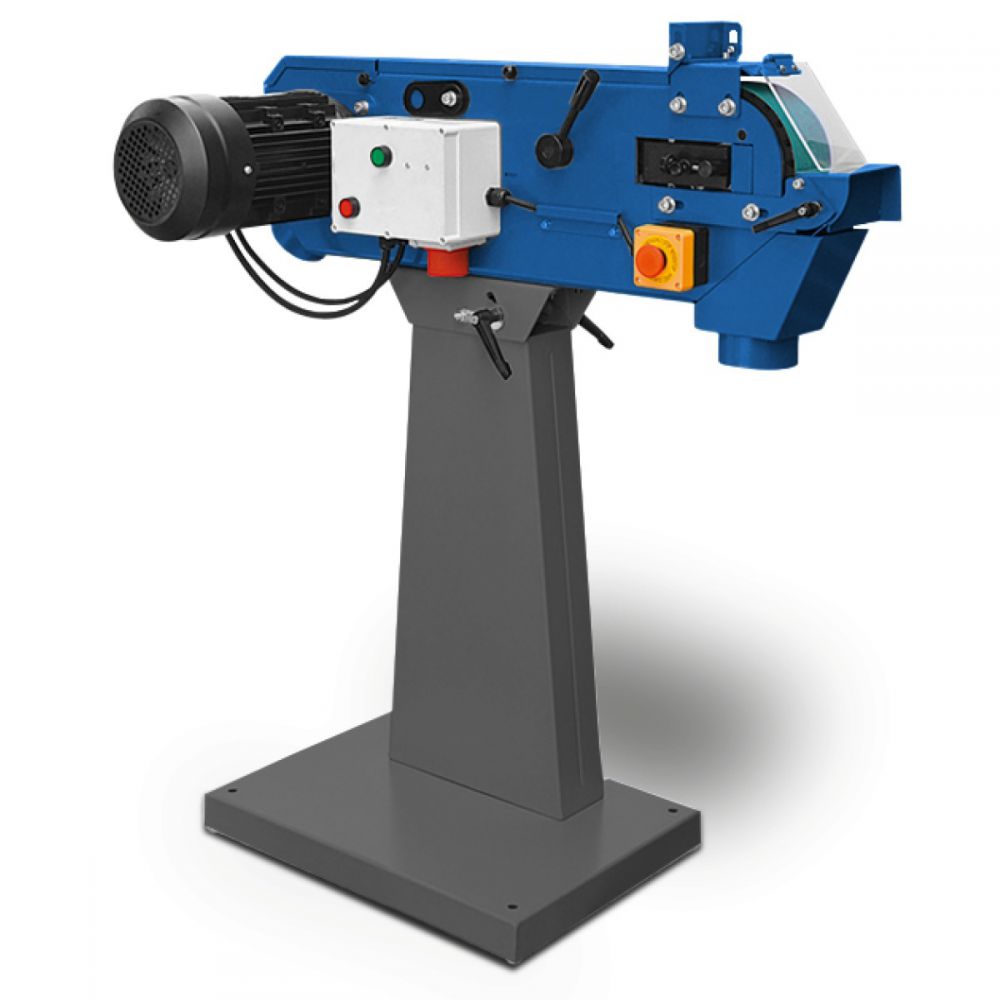

Sturmer Metallkraft MBSM 150-203-2 Wide Belt Sander 150mm Floor Standing 3300W 415v

Sturmer Metallkraft

MBSM 150-203-2 Wide Belt Sander 150mm Floor Standing 3300W 415v

ref: 3925315

• MBSM 150-203-2 150mm belt linisher + 2 speeds (steel & stainless steel) + floor standing + 3300W 415v
• Powerful motor and vibration-free operation for the best sanding results
• Continuous face sanding surface thanks to removable attachments enables sanding of even long workpieces
• With two belt speeds

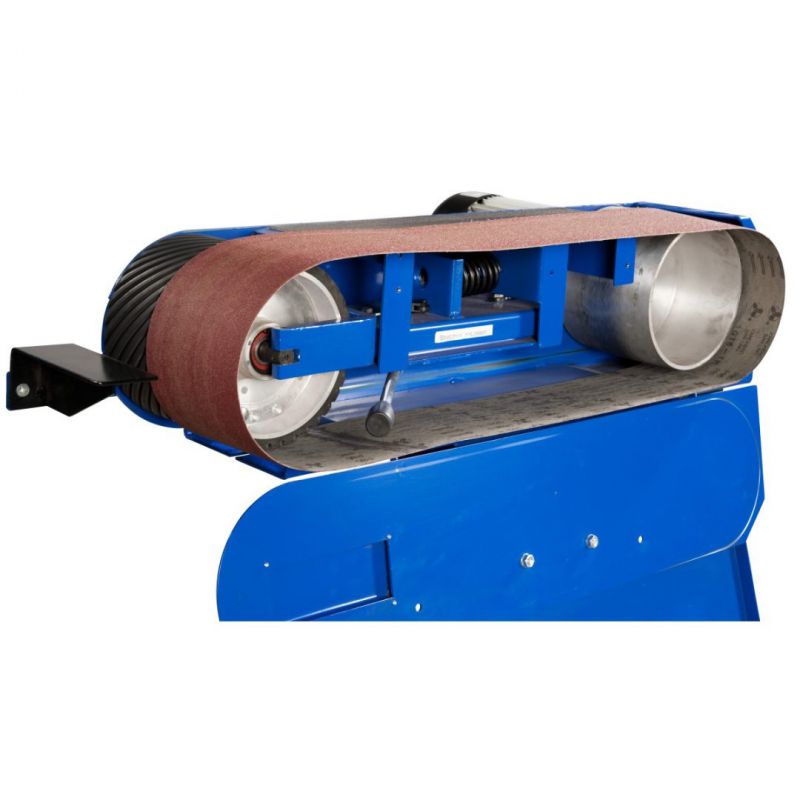

• Quick-clamping system enables fast sanding belt changes
• One extraction nozzle each directly on the spark box and on the rear belt roller
• Can be used with and without suction
• Easy adjustment of the belt run via adjusting screw on the front contact roller
• Automatic retensioning of the sanding belt thanks to spring-loaded belt tensioning system
• Infinitely tiltable sanding unit
• Fold-away protective screen

Dimensions and weights

• Length approx.: 955 mm
• Width/depth approx.: 530 mm
• Height approx.: 1025 mm
• Weight approx.: 99 kg

Electrical Data

• Drive motor output: 2.5 / 3.3 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Extraction

• Extraction duct nominal width outside: 2 × 100 mm

Noise emission

• Emissions sound pressure level at workstation Lp (idling without extraction unit): 87 dB(A)

Sanding machine

• Max. sanding width: 150 mm
• Sanding belt length: 2000 mm
• Sanding belt width: 150 mm
• Graphite support length: 495 mm
• Graphite support width: 150 mm
• Circumferential belt speed(s): 15/30 m/s
