Sturmer Metallkraft MBSM 150-20 Belt Sander Linisher 150mm 3600W 415v
Product Code: STU/3712150
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,159.99 Inc. VAT
£1,799.99 Exc. VAT
Sturmer Metallkraft

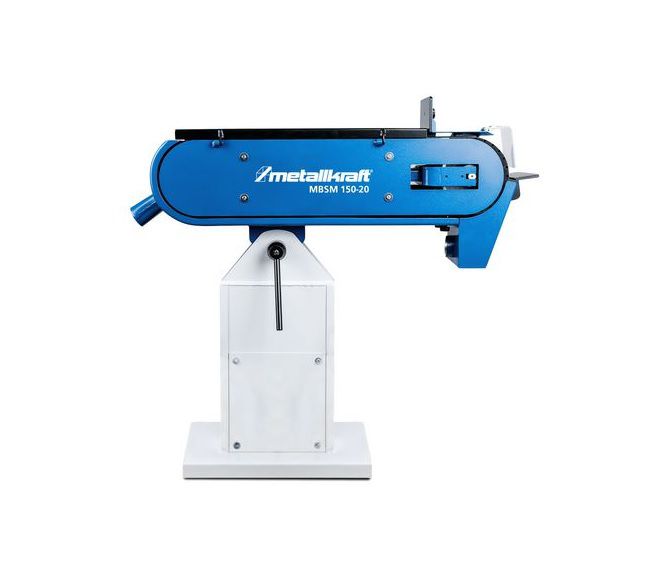

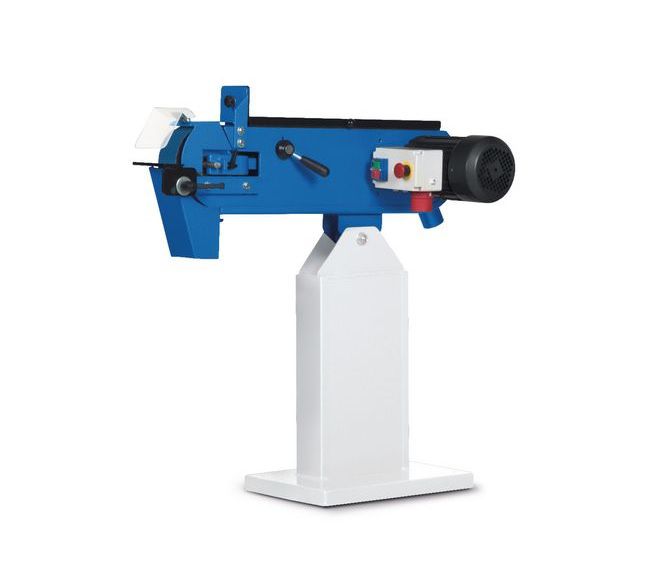

MBSM 150-20 Belt Sander Linisher 150mm 3600W 415v
ref: 3712150
Key Features
- MBSM 150-20 150mm belt linisher + 3.6kW motor 415v Made in Europe
- Powerful motor with vibration-free running to achieve the best grinding results

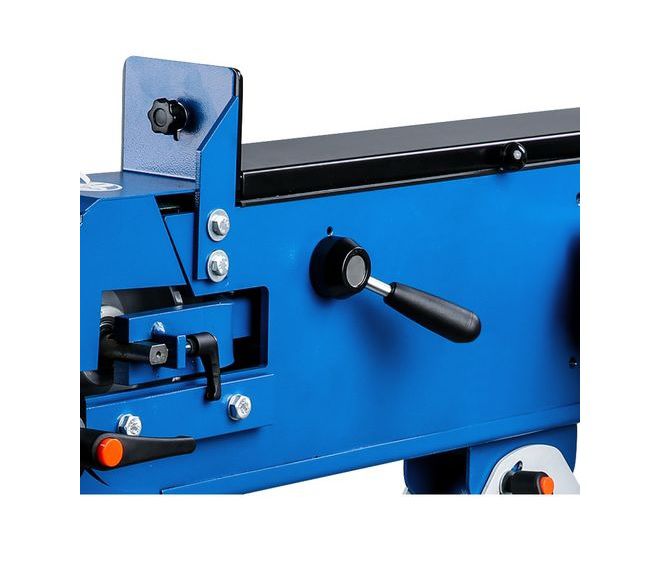

- Working height adjustable by stepless inclination of the grinding unit

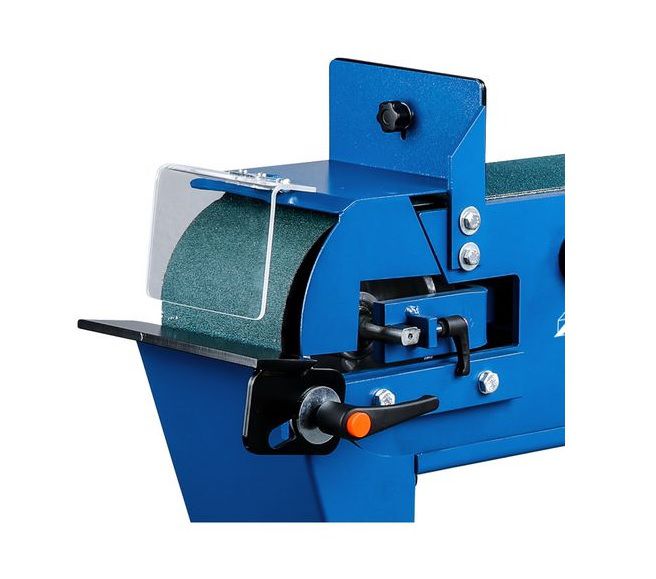

- Angle-adjustable workpiece support
- Continuous face grinding surface enables this Grinding even long workpieces
- One extraction nozzle on the spark box and one on the rear belt roll
- Protective disc can be folded away
- Grinding belt change in seconds thanks to the quick-release system
- Simple Adjustment of the belt run via adjusting screw
- motor with brake and circuit breaker
- Includes sanding belt K60
Technical details
Dimensions and weights
- Length approx.: 527 mm
- Width/depth approx.: 995 mm
- Height approx.: 1025 mm
- Weight approx.: 114 kg
Electrical Data
- Drive motor output: 3,6 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Extraction
- Extraction duct nominal width outside: 60 mm
Noise emission
- Emissions sound pressure level at workstation Lp (idling without extraction unit): 80 dB(A)
Sanding machine
- Max. sanding width: 150 mm
- Sanding belt length: 2000 mm
- Sanding belt width: 150 mm
- Circumferential belt speed(s): 30 m/s
- Contact wheel diameter: 200 mm
- VPE: 1
