Sturmer Metallkraft MBSM 150-20 AS Belt Sander Linisher 150mm 3600W 415v

X
Product Code: STU/3712151
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£2,639.99 Inc. VAT
£2,199.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Metallkraft

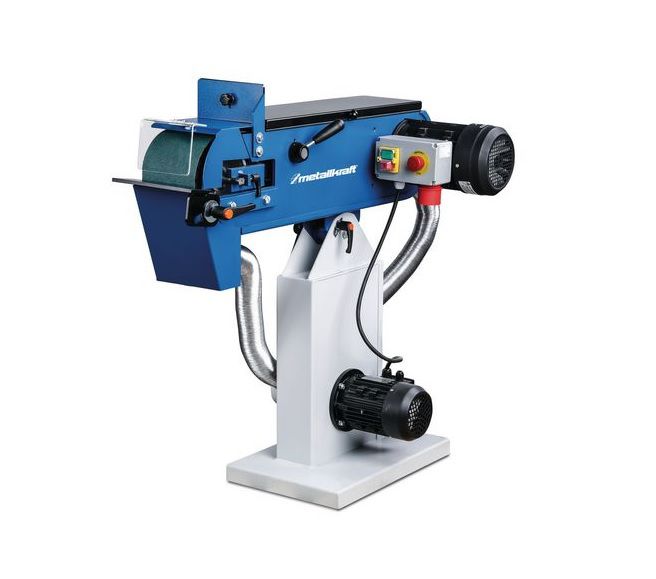

MBSM 150-20 AS Belt Sander Linisher 150mm 3600W 415v

ref: 3712151



Key Features

  • MBSM 150-20 AS 150mm belt linisher + twin extraction nozzles + 3.6kW motor 415v Made in Europe
  • Powerful motors with vibration-free running to achieve the best grinding results

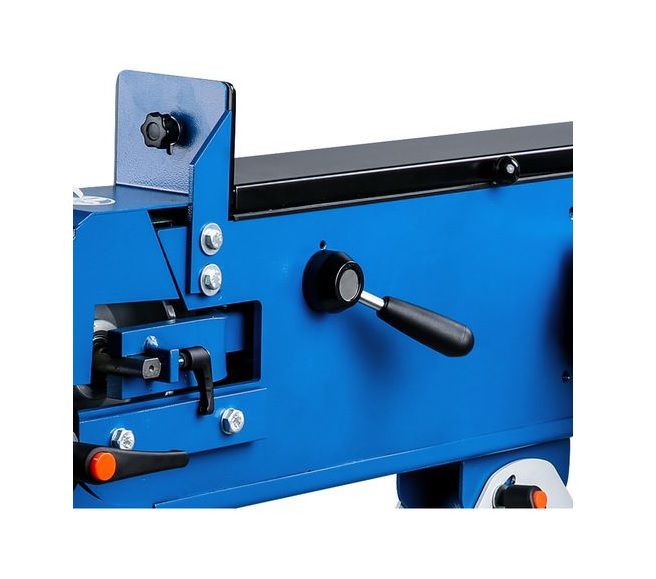

  • Working height adjustable by stepless inclination of the grinding unit

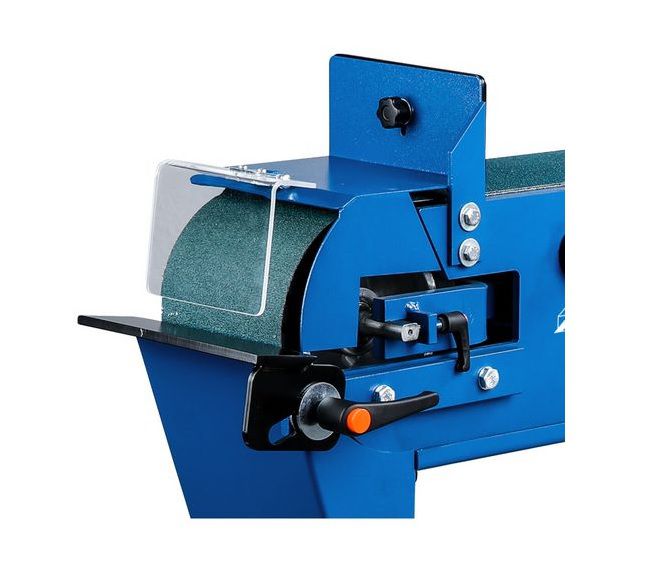

  • Angle-adjustable workpiece support
  • Continuous face grinding surface enables this Grinding even long workpieces
  • One extraction nozzle on the spark box and one on the rear belt roll
  • Protective disc can be folded away
  • Grinding belt change in seconds thanks to the quick-release system
  • Simple Adjustment of the belt run via adjusting screw
  • motor with brake and circuit breaker
  • Includes swarf bag, sanding belt K60



Technical details

Dimensions and weights

  • Length approx.: 527 mm
  • Width/depth approx.: 995 mm
  • Height approx.: 1025 mm
  • Weight approx.: 140 kg

Electrical Data

  • Drive motor output: 3,6 kW
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz

Extraction

  • Extraction duct nominal width outside: 60 mm
  • Motor power suction: 0.37 kW
  • Suction capacity without dustbag/hose: 540 m³/h
  • Suction capacity with dustbag/hose: 540 m³/h

Noise emission

  • Emissions sound pressure level at workstation Lp (idling without extraction unit): 80 dB(A)

Sanding machine

  • Max. sanding width: 150 mm
  • Sanding belt length: 2000 mm
  • Sanding belt width: 150 mm
  • Circumferential belt speed(s): 30 m/s
  • Contact wheel diameter: 200 mm
  • VPE: 1
