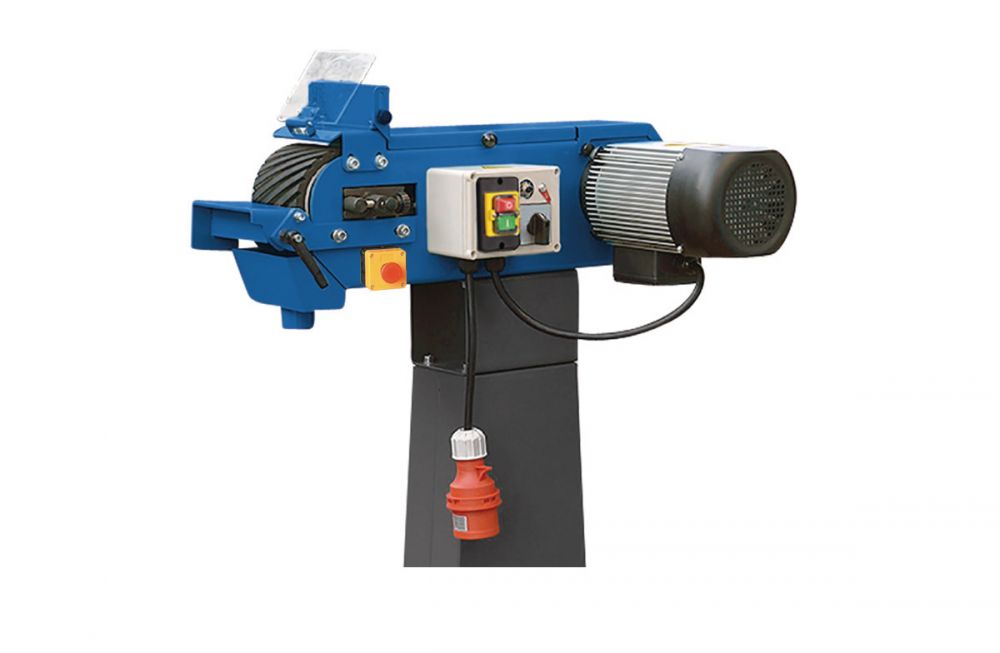

Sturmer Metallkraft MBSM 100-140-2 Belt Sander Linisher 100mm - Twin Motors 415v
Product Code: STU/3923142
Brand: Stuermer
Available to Order Please Call
01726 828 388
£599.99 Inc. VAT
£499.99 Exc. VAT
Sturmer Metallkraft
MBSM 100-140-2 Belt Sander Linisher 100mm - Twin Motors 415v
ref: 3923142
Key Features
- MBSM 100-140 -2 Bench top 100mm wide belt linisher + 2 speeds for steel & stainless steel 1500W motor 415v
- floor stand shown is not included
- Powerful motors and vibration-free running for the best grinding results
- Sanding belt change in seconds due to the quick-tensioning system
- Automatic re-tensioning of the sanding belt by spring-assisted belt tensioning system
- Large surface grinding area by foldaway upper sanding belt cover
- Simple adjustment of the belt run using the adjusting screw
- Continuous surface grinding area after removal of attachments enables grinding of long workpieces
- Can be used with and without suction
- One extraction nozzle on the spark box and one on the rear belt reel
- Protective screen can be folded away
- Can be used as a table model and also as a standing model with the optional base
- Model MBSM 100-140-2 with two belt speeds – for grinding steel and stainless steel
- 1 Sanding belt K80, 1 Socket wrench
Technical details
Dimensions and weights
- Length approx.: 640 mm
- Width/depth approx.: 450 mm
- Height approx.: 420 mm
- Weight approx.: 39 kg
Electrical Data
- Drive motor output: 1/1.5 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Extraction
- Extraction duct nominal width outside: 2 x 75 mm
Noise emission
- Emissions sound pressure level at workstation Lp (idling without extraction unit): 87 dB(A)
Sanding machine
- Max. sanding width: 100 mm
- Sanding belt length: 1220 mm
- Sanding belt width: 100 mm
- Graphite support length: 285 mm
- Graphite support width: 100 mm
- Graphite support thickness: 2 mm
- Circumferential belt speed(s): 10/20 m/s
- Drive wheel diameter: 140 mm
- Contact wheel diameter: 127 mm
- VPE: 1
