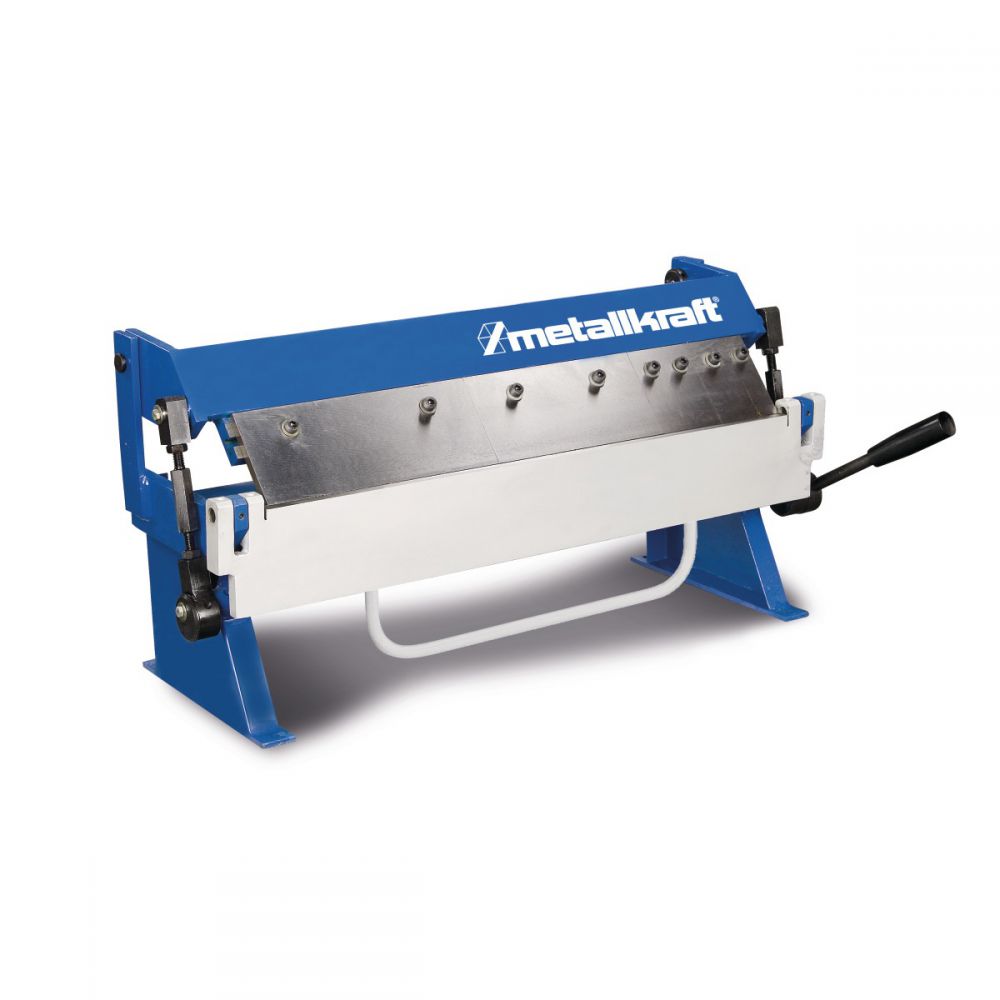

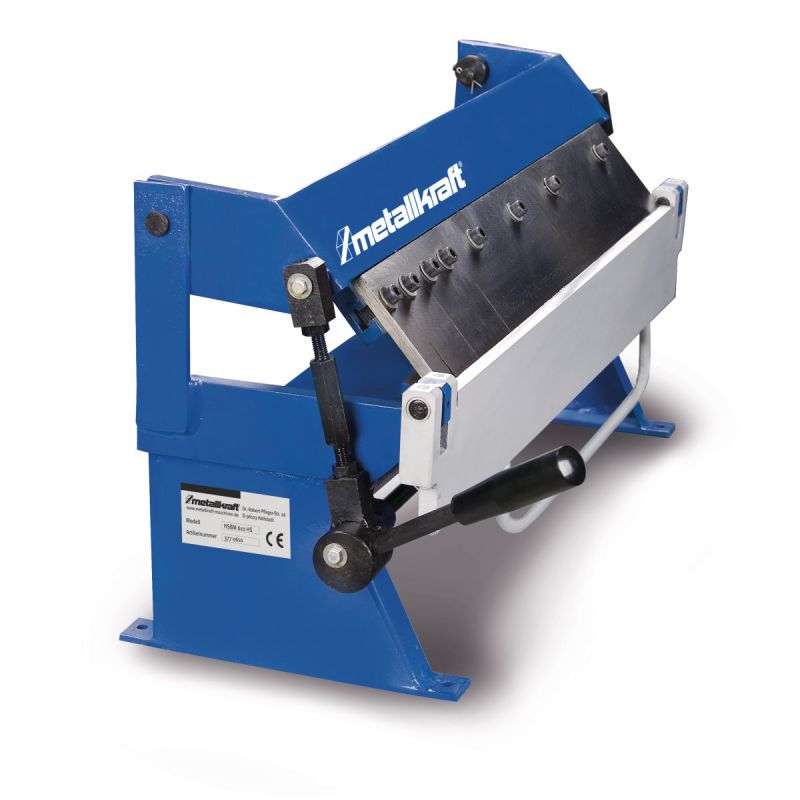

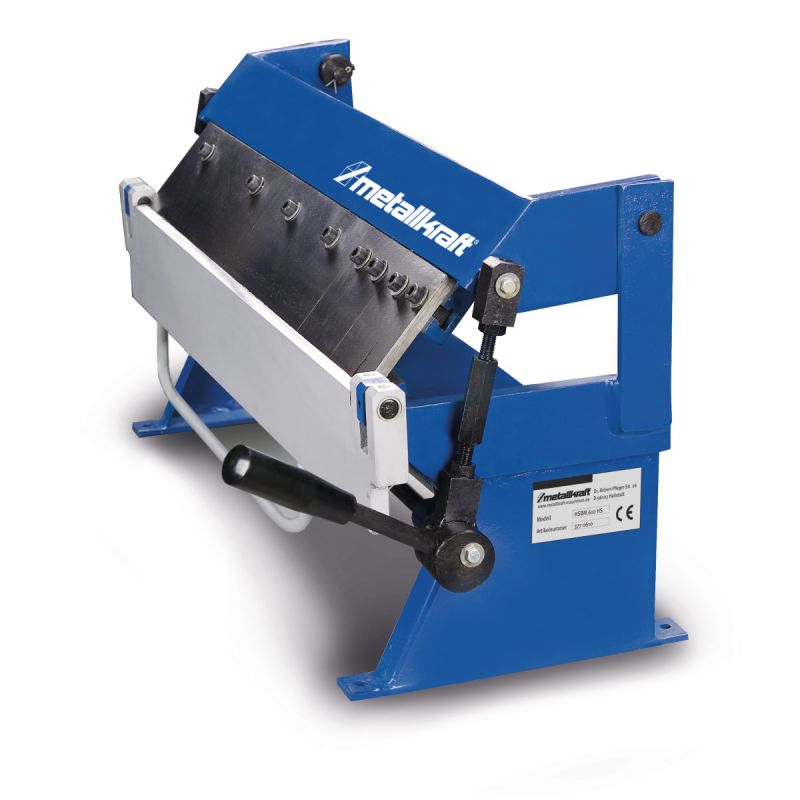

Sturmer Metallkraft HSBM 610 HS Bench Top Bending Machine

Sturmer Metallkraft HSBM 610 HS Bench Top Bending Machine

ref: 3772610

• Inexpensive beginner models for craftsmen
• Simple design and solid construction ensure accurate work
• Secure fixing of the workpiece via clamping device
• Segmented upper cheek
• Ideal for the production of all profiles up to all around edged boxes
• Fast, user-friendly adjustment of the upper beam via eccentric
• Upper beam for high U-profiles
• Swivel bending over bow handle
• Easy to transport

• Max. working width: 610 mm
• Max. bending angle: 135 °
• Segmentation: 25-50-75-205-255 mm
• VPE: 1

Bending capacity

• 400N/mm²: 1.0 mm

Dimensions and weights

• Length approx.: 850 mm
• Width/depth approx.: 360 mm
• Height approx.: 420 mm
• Weight approx.: 42 kg
