Sturmer Metallkraft FSBM 1020-25 E Manual Swing Bending Machine
Product Code: STU/3772125
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,099.99 Inc. VAT
£1,749.99 Exc. VAT

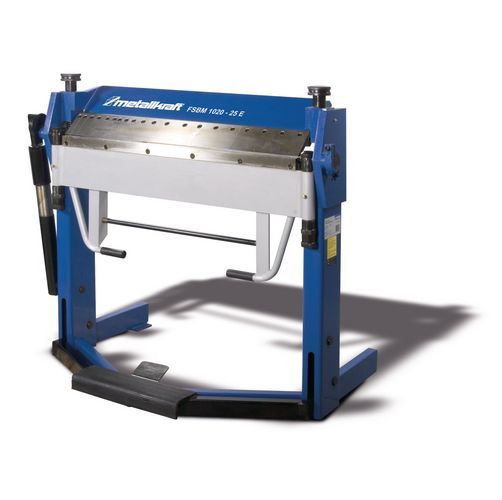

Sturmer Metallkraft FSBM 1020-25 E Manual Swing Bending Machine
ref: 3772125
Key Features
- The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
- Different tool variants available E, S2, HS2 and HSG
- The powerful auxiliary cylinder facilitates bending
- Next passage between top and bottom cheek of up to 25 mm
- Self-lubricating plain bearings
- Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
- Adjustment of material thickness by means of knurled screw
- Adjustable stop for bending angle
- With workpiece clamp by foot pedal
Technical details
- Max. working width: 1020 mm
- Max. bending angle: 135 °
- Segmentation: 25-30-35-40-45-50-75-100-150-200-270 mm
- VPE: 1
Bending capacity
- 235N/mm²: 2.5 mm
- Stainless steel: 1.5 mm
- Explanation stainless steel: Hardened top tools are required to bend VA
- Aluminium: 3 mm
Dimensions and weights
- Length approx.: 1350 mm
- Width/depth approx.: 800 mm
- Height approx.: 1130 mm
- Weight approx.: 290 kg
