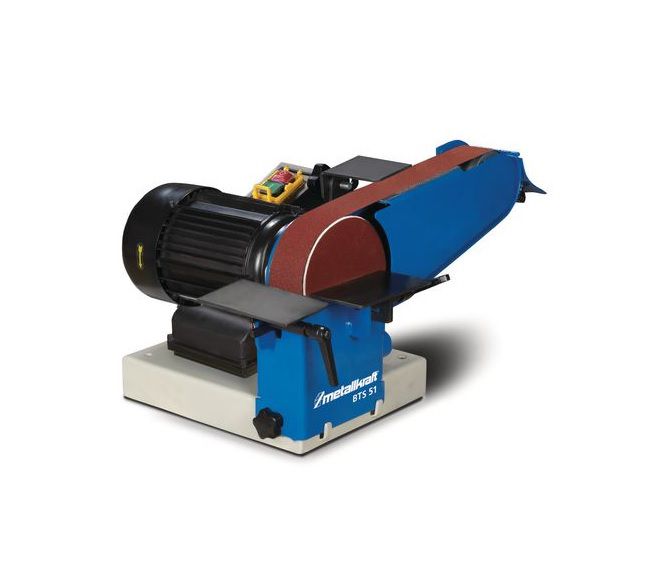

Sturmer Metallkraft BTS 51 Combined Belt and Disc Linisher 150mm x 50mm 750W 230v
Product Code: STU/3700051
Brand: Stuermer
Low Stock - Please Call For Availability
£719.99 Inc. VAT
£599.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Metallkraft
BTS 51 Combined Belt and Disc Linisher 150mm x 50mm 750W 230v
ref: 3700051
Key Features
- BTS 51 150x50mm Disc & belt linisher + 2 x tilting tables + fine adjustment for parallel belt running + Velcro pad + 750W motor 230v
- Fine adjustment for parallel tape running
- 2 swiveling grinding tables, adjustable via clamping lever
- Powerful engine
- Standard with extraction nozzle on the spark arrester
- Very fast sanding belt change due to easy operation
- Conveniently fixable on workbench
- Includes Sanding belt 1000 x 50 mm, K80 + Sanding sheet Ø 150 mm, K80 + Velcro pad Ø 150 mm
Technical details
Dimensions and weights
- Length approx.: 375 mm
- Width/depth approx.: 230 mm
- Height approx.: 620 mm
- Weight approx.: 20 kg
Electrical Data
- Drive motor output: 0.75 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction
- Extraction port diameter: 38 mm
Sanding machine
- Sanding belt length: 1000 mm
- Sanding belt width: 50 mm
- Grinding disc diameter: 150 mm
- Graphite support length: 160 mm
- Graphite support width: 60 mm
- Graphite support thickness: 1.5 mm
- Circumferential belt speed(s): 22 m/s
- Drive wheel diameter: 152 mm
- Contact wheel diameter: 75 mm
- VPE: 1
