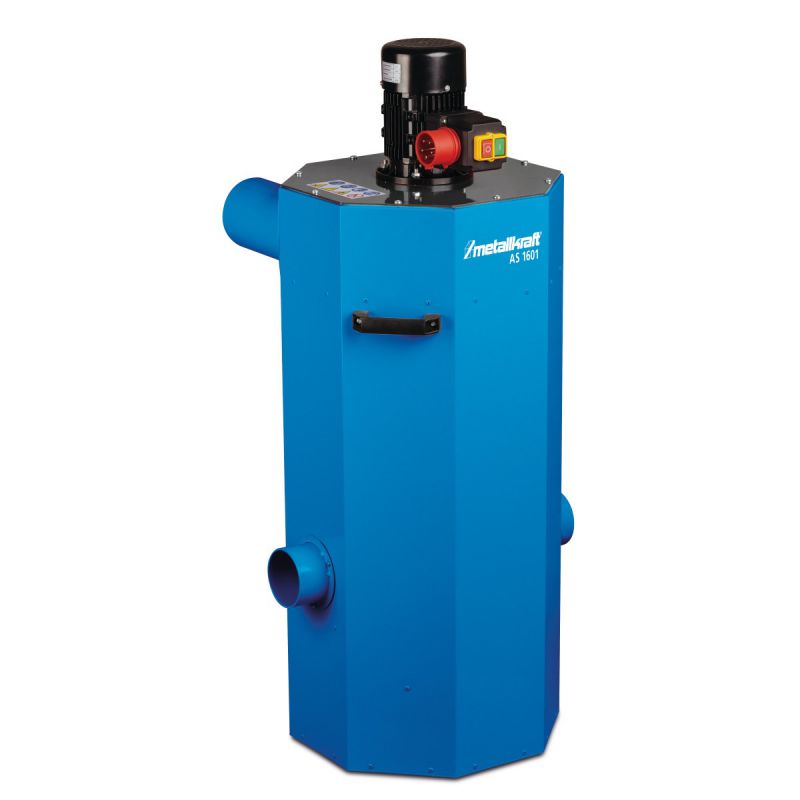

Sturmer Metallkraft AS 1601 Dust Extraction Set for Metal 415v

Sturmer Metallkraft AS 1601 Dust Extraction Set for Metal 415v

ref: 3922006

• AS 1601 Extractor (Suitable for MBSM 57-200-2 & MBSM 150-200-2) 415v
• Effective suction
• Quick and easy filter change

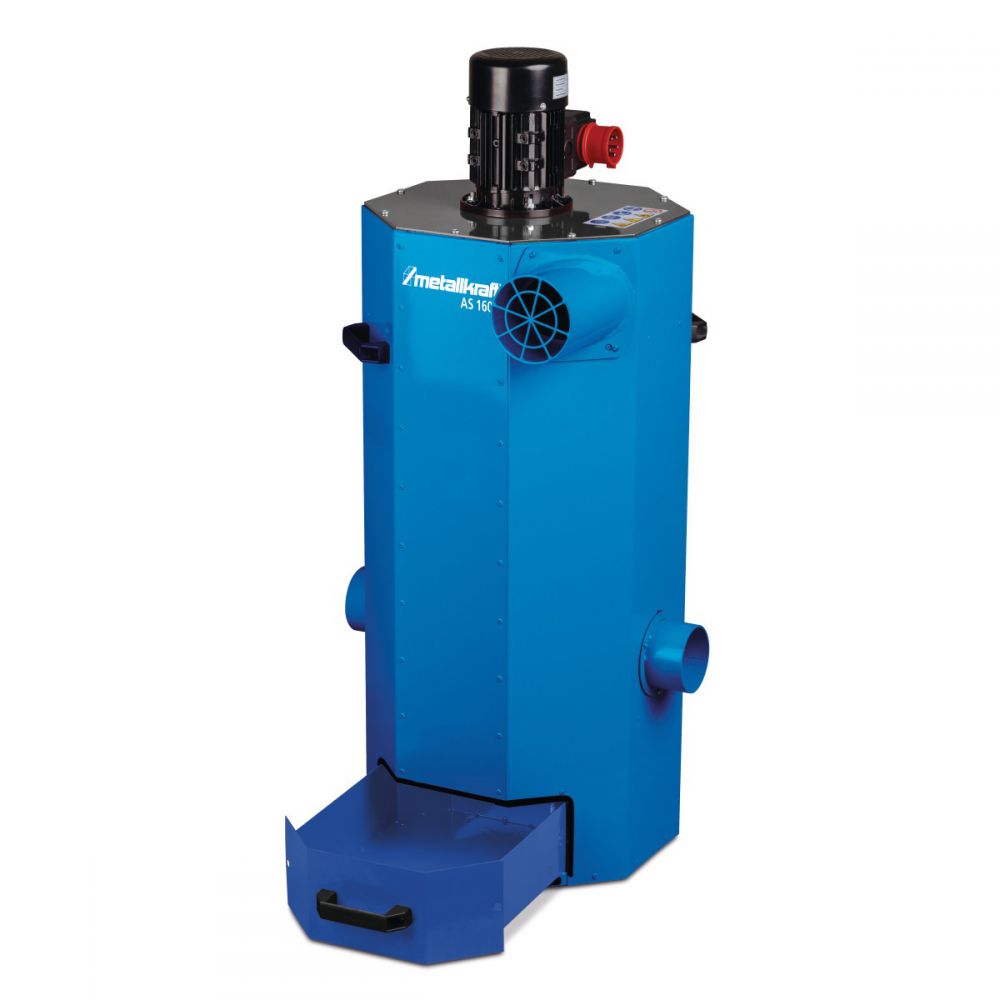

• Large collection container with quick access via drawer
• Compact and stable housing
• High interior capacity

Dimensions and weights

• Extraction duct diameter: 2 x 100 mm
• Dust bag diameter: 350 mm
• Dust bag length: 470 mm
• Fan wheel diameter: 325 mm
• Length approx.: 560 mm
• Width/depth approx.: 840 mm
• Height approx.: 1180 mm
• Weight approx.: 36 kg

Electrical Data

• Drive motor output: 0,75 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Intake capacity

• without dust bag/hoses: 1100 m³/h

Noise emission

• Sound pressure level max.: 86.5 dB(A)
