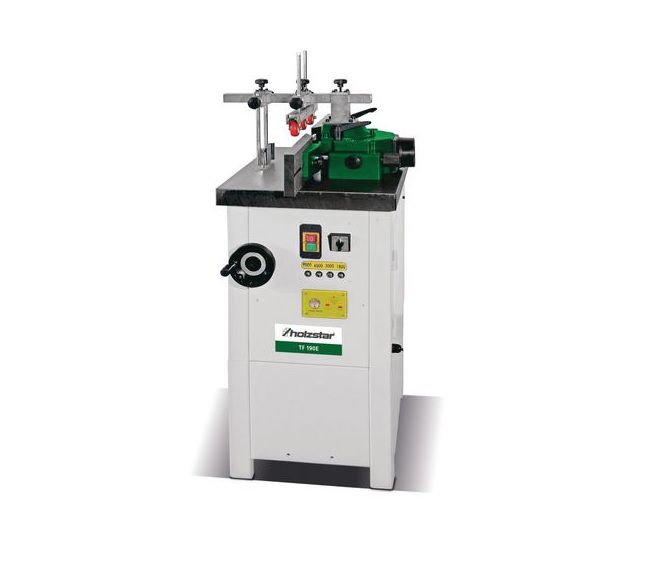

Sturmer Holzstar TF 190 E Spindle Moulder 4-Speed 2800W 230v

X
Product Code: STU/5901921
Brand: Stuermer
Stock Expected
Delivery typically within 3-4 days
£2,039.99 Inc. VAT
£1,699.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

TF 190 E Spindle Moulder 4-Speed 2800W 230v

ref: 5901921



Key Features

  • TF 190 E 4 Speed spindle moulder (1800-9000 rpm) + LED display + selector switch for L or R spindle roatation + triple pressure roller safety device + 2800W motor 230v 16 Amp
  • Milling stop with finely adjustable aluminum stops
  • Quick and easy changing of the speed using multiple V-belts
  • Speed setting displayed by LED lights
  • Large work surface thanks to the torsion-free grey cast iron table
  • Selector switch for clockwise/counterclockwise rotation of the milling spindle
  • Milling unit made of grey cast iron
  • Hold-down unit for precise workpiece guidance



Technical details

Dimensions and weights

  • Length approx.: 730 mm
  • Width/depth approx.: 500 mm
  • Height approx.: 1200 mm
  • Weight approx.: 140 kg

Electrical Data

  • Drive motor output: 2,2 kW
  • Absorbed power drive motor: 2,8 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter: 100 mm

Milling cutter diameter max.

  • Max. tool diameter lowerable: 200 mm

Milling spindle

  • Usable length: 100 mm
  • Stroke: 100 mm
  • Max. protrusion over the table: 100 mm
  • Speed(s): 1800/3000/6000/9000 min¯¹
  • Speed regulation: Strap
  • Speed display: LED on the machine front
  • Arbor diameter: 30 mm

Work table

  • Length: 690 mm
  • Width: 480 mm
  • Table height: 900 mm
  • VPE: 1
