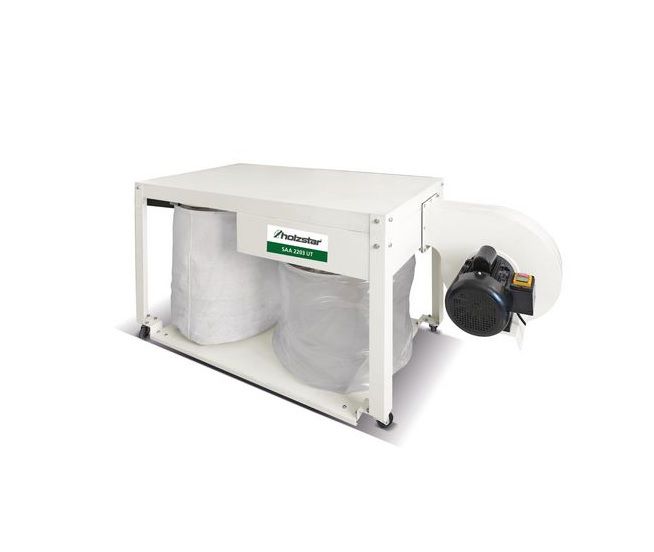

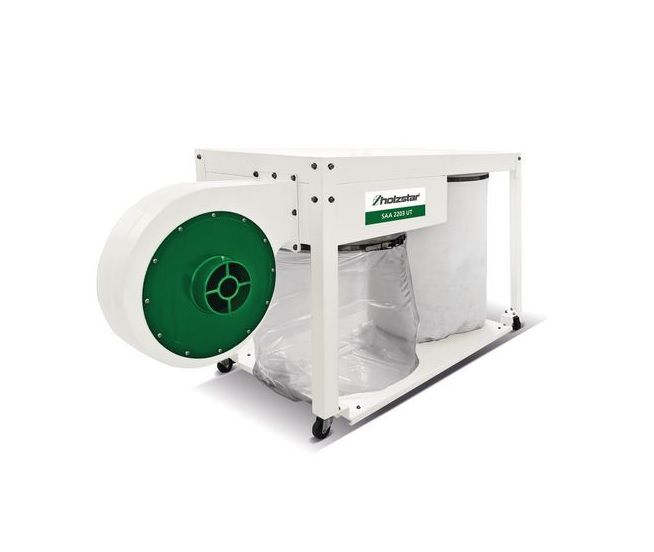

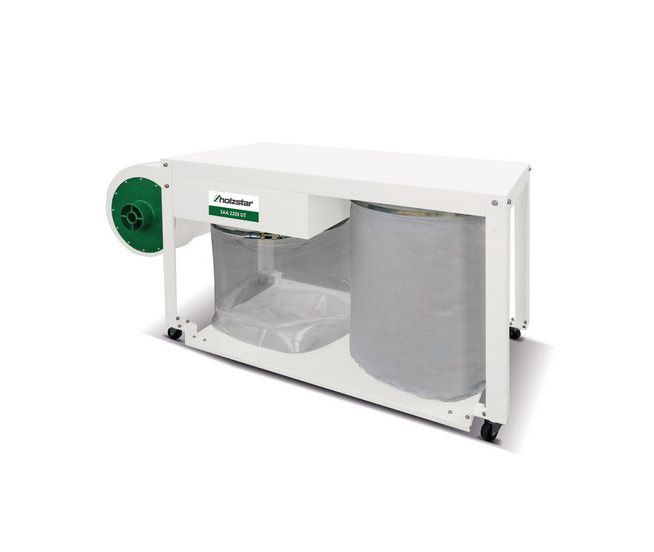

Sturmer Holzstar SAA 2203 UT Space Saving Under Table Chip Extractor 2200W 415v
Product Code: STU/5922123
Brand: Stuermer
Available to Order Please Call
01726 828 388
£815.99 Inc. VAT
£679.99 Exc. VAT
Sturmer Holzstar
SAA 2203 UT Space Saving Under Table Chip Extractor 2200W 415v
ref: 5922123
Key Features
- SAA 2203 UT Space saver dust / wood chip extractor + for positioning adjacent to or under machine extension tables + 2200W motor 415v

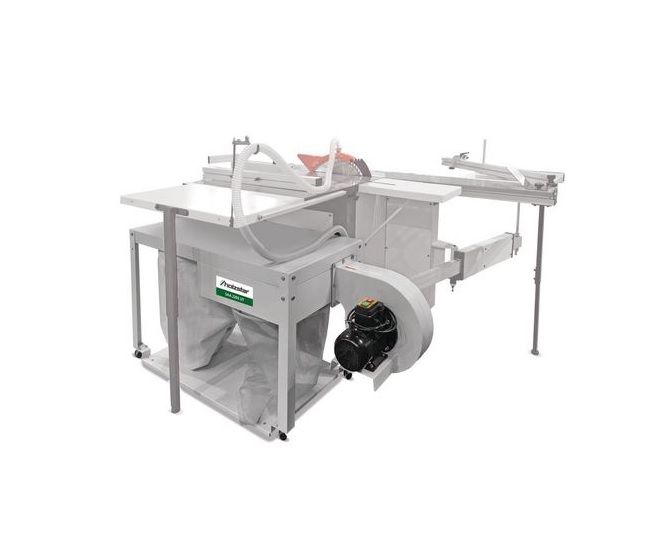

- Ideal for e.g. positioning under the machine table thanks to its flat design
- For extracting milling, planing and sawing chips
- For a clean and healthy workplace in the workshop
- Steel paddle fan wheel ensures constantly high extraction performance
- Supplied with chassis as factory standard
- Easy fastening of bags with tensioning straps

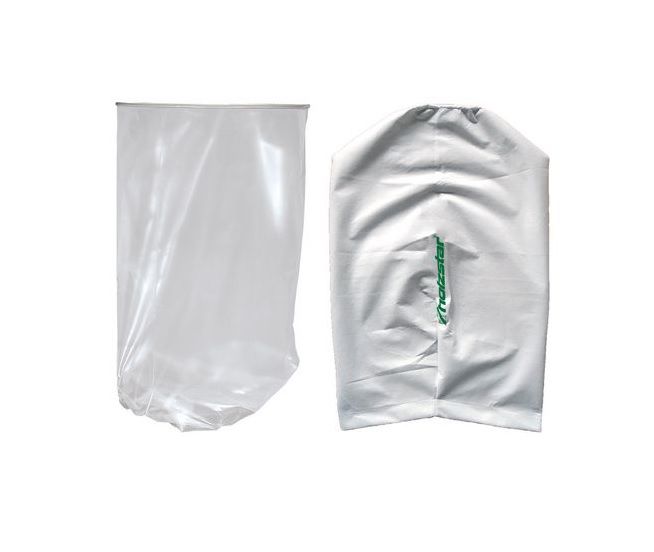

- Includes: chip bag, filter bag, two tensioning straps
Technical details
Dimensions and weights
- Extraction duct inlet outside nominal width: 120 mm
- Extraction duct outlet outside nominal width: 1 x 120 mm
- Length approx.: 1540 mm
- Width/depth approx.: 550 mm
- Height approx.: 750 mm
- Weight approx.: 50 kg
Electrical Data
- Motor input: 2,2 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Noise emission
- Max. sound pressure level; 89 dB(A)
Volume flow
- Rated volume flow: 2200 m³/h
- Max. negative pressure: 2200 Pa
- VPE: 1
