Sturmer Holzstar OBSS 100 Oscillating Spindle and Belt Sander 450W 230v

X
Product Code: STU/5903501
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£299.99 Inc. VAT
£249.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

OBSS 100 Oscillating Spindle and Belt Sander with Accessories 450W 230v

ref: 5903501



Key Features

  • OBSS 100 Oscilating belt & bobbin sander + cast iron table + generous accy kit + 450W motor 230v
  • For sanding shaped parts, inner radii, round and straight edges, recesses or cut-outs

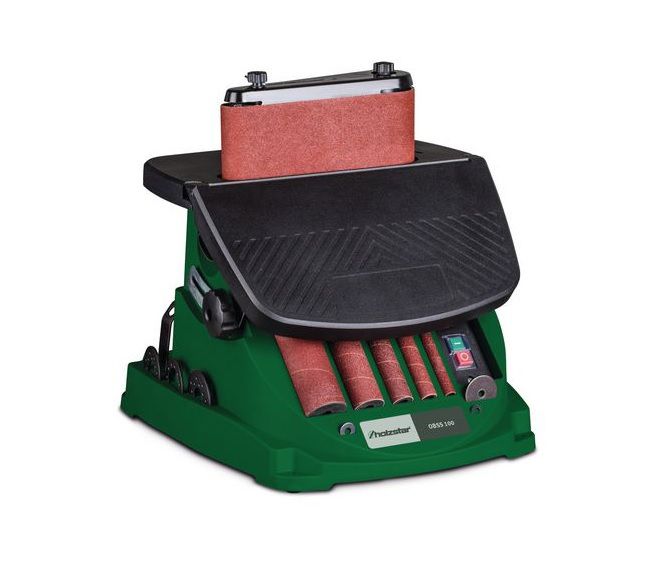

  • Tilting work table continuously adjustable from 0 ° to 45 °. Additionally fixed angle steps at 0 °, 15 °, 22.5 °, 30 ° and 45 °
  • Safe and clean working thanks to integrated extraction nozzle for connection of an external suction unit
  • Practical storage for accessories and assembly tools

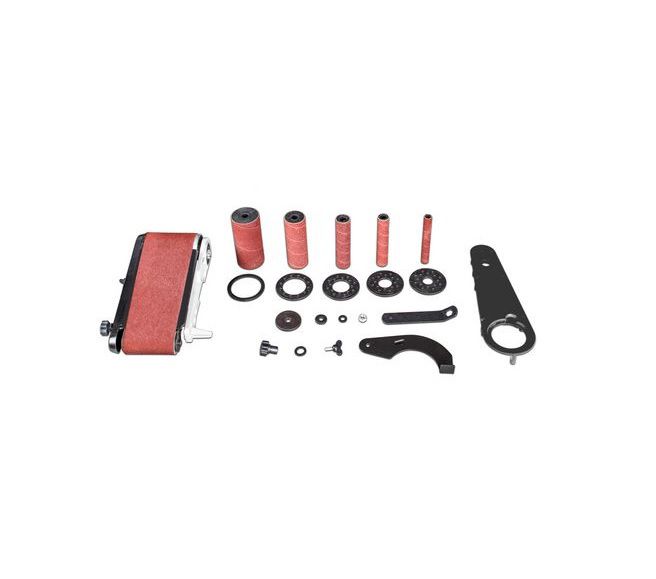

Items included

  • 5 sanding sleeves K80, Ø 13/19/26/38/51 mm
  • 4 rubberized sanding rollers, length 115 mm, Ø 19/26/38/51 mm
  • 5 table inserts Ø 13/19/26/38/51 mm
  • 3 spindle discs Ø 16/22/44 mm
  • Sanding belt attachment
  • Cover for sanding belt attachment
  • Workpiece stop
  • Assembly tool
  • Sanding belt
  • 3 Spindle discs Ø 16/22/35



Technical details

Dimensions and weights

  • Length approx.: 530 mm
  • Width/depth approx.: 480 mm
  • Height approx.: 480 mm
  • Weight approx.: 12 kg

Electrical Data

  • Absorbed power drive motor: 0,45 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter: 38 mm

Sanding machine

  • Sanding belt length: 610 mm
  • Sanding belt width: 100 mm
  • Circumferential belt speed(s): 8 m/s
  • Sanding surface length: 220 mm
  • Sanding surface width: 100 mm
  • Max. sanding height: 98 mm
  • Sanding sleeves diameter: 13, 19, 26, 38, 51 mm
  • Spindle diameter: 12.7 mm
  • Oscillation stroke: 16 mm
  • Oscillation: 58 min¯¹

Work top(s)

  • Work table length: 430 mm
  • Work table width: 410 mm
  • VPE: 1
