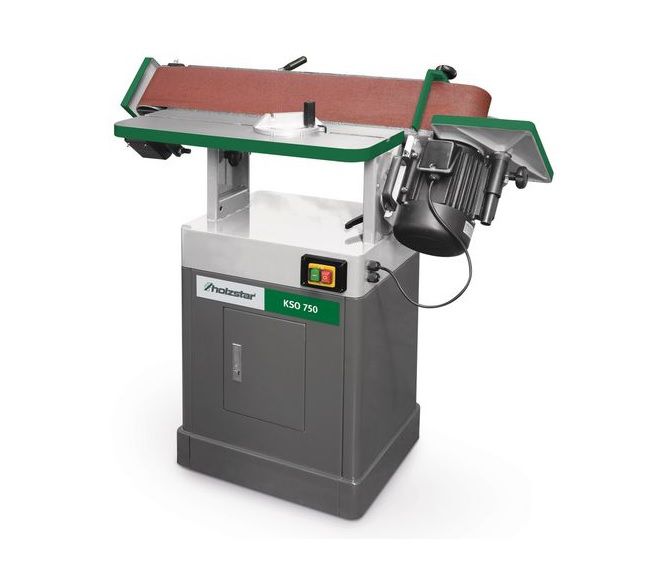

Sturmer Holzstar KSO 750 Osc' Tilting Belt and Spindle Sander 2200W 230v
Product Code: STU/5900751
Brand: Stuermer
Available to Order Please Call
01726 828 388
£1,199.99 Inc. VAT
£999.99 Exc. VAT
Sturmer Holzstar
KSO 750 Osc' Tilting Belt and Spindle Sander 2200W 230v
ref: 5900751
Key Features
- KSO 750 150mm Osciallating tilting belt & spindle sander + cast iron table w T slots + mitre att + cabinet base + 2200W motor 230v 16 Amp
- With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
- With height-adjustable sanding table
- Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop
- Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding
- Table height adjustment by handwheel
- Robust gray cast iron work table with T-slots, stable machine stand when working
- With height-adjustable additional table for contour sanding
- Quick and easy sanding belt change via quick clamping system
- Spring-loaded clamping device for a uniform belt tension
- Sanding sole with graphite coating as standard
- Extraction nozzle Ø 100 mm
- With lockable storage option in the standard substructure
- Due to the steplessly adjustable sanding unit, the edge sanding machine is suitable for a wide variety of sanding operations, such as sanding. B. vertical and horizontal sanding used
- Includes mitre gauge, workpiece stop 499 x 178 x 69mm, sanding belt K60.
Technical details
Dimensions and weights
- Length approx.: 1300 mm
- Width/depth approx.: 750 mm
- Height approx.: 1200 mm
- Weight approx.: 120 kg
Electrical Data
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter: 100 mm
Sanding machine
- Sanding belt length: 2270 mm
- Sanding belt width: 150 mm
- Circumferential belt speed(s): 16.3 m/s
- Sanding surface length: 820 mm
- Sanding surface width: 170 mm
Work top(s)
- Work table height adjustment: 80 mm
- Longitudinal table length: 750 mm
- Longitudinal table width: 250 mm
- Longitudinal table height adjustment; 80 mm
- Min. cross table height: 980 mm
- VPE: 1
