Sturmer Holzstar KSO 1500 F Osc' Tilting Belt and Spindle Sander 3000W 415v
Product Code: STU/5901500
Brand: Stuermer
Available to Order Please Call
01726 828 388
£3,599.99 Inc. VAT
£2,999.99 Exc. VAT
Sturmer Holzstar

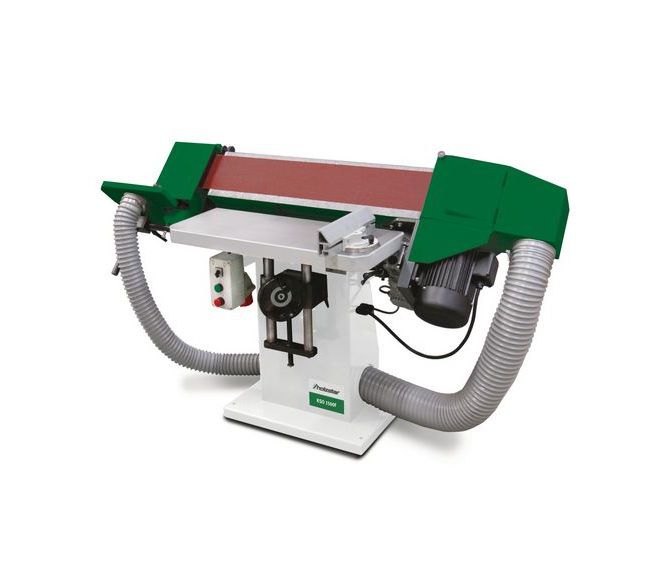

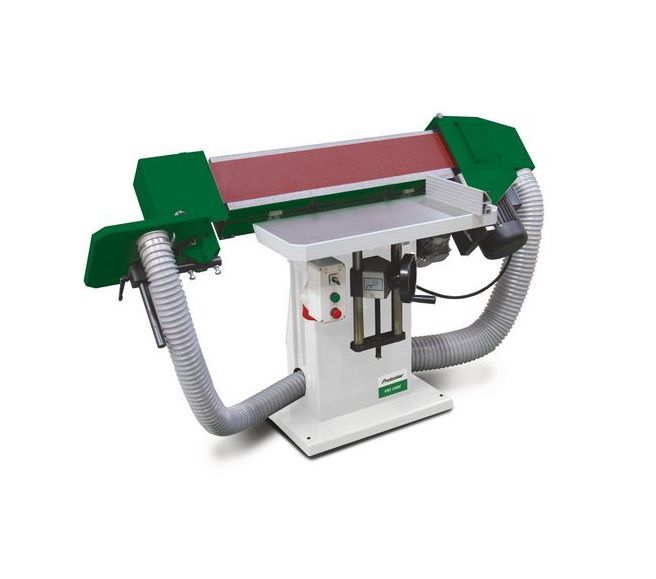

KSO 1500 F Osc' Tilting Belt and Spindle Sander 3000W 415v
ref: 5901500
Key Features
- KSO 1500 F 152mm Osciallating tilting belt & spindle sander + handwheel R&F work table + mitre att + welded steel base + 3000W motor 415v
- With swiveling sanding unit and oscillating sanding belt for perfect sanding results
- Machine stand made of welded steel guarantees high torsional rigidity and vibration-free working
- sanding unit can be swiveled up to 45 ° via lever for sanding straight and bevelled edges
- Oscillating sanding belt with separate gear motor for better sanding results
- Oscillation optionally switchable
- sanding sole with graphite coating for a longer service life of the sanding belt
- Height-adjustable additional table with suction for sanding radii
- Automatic compensation of belt length differences due to spring-loaded belt tension
- Includes mitre, sanding belt K100.
Technical details
Dimensions and weights
- Length approx.: 1720 mm
- Width/depth approx.: 700 mm
- Height approx.: 1030 mm
- Weight approx.: 180 kg
Drive output
- Oscillation motor: 0.25 kW
Electrical Data
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter: 120/80 mm
Sanding machine
- Sanding belt length: 2600 mm
- Sanding belt width: 150 mm
- Circumferential belt speed(s): 20 m/s
- Sanding surface length: 850 mm
- Sanding surface width: 200 mm
Work top(s)
- Work table height adjustment: 180 mm
- Longitudinal table length: 750 mm
- Longitudinal table width: 300 mm
- Longitudinal table height adjustment: 180 mm
- Min. cross table height: 740 mm
- VPE: 1
