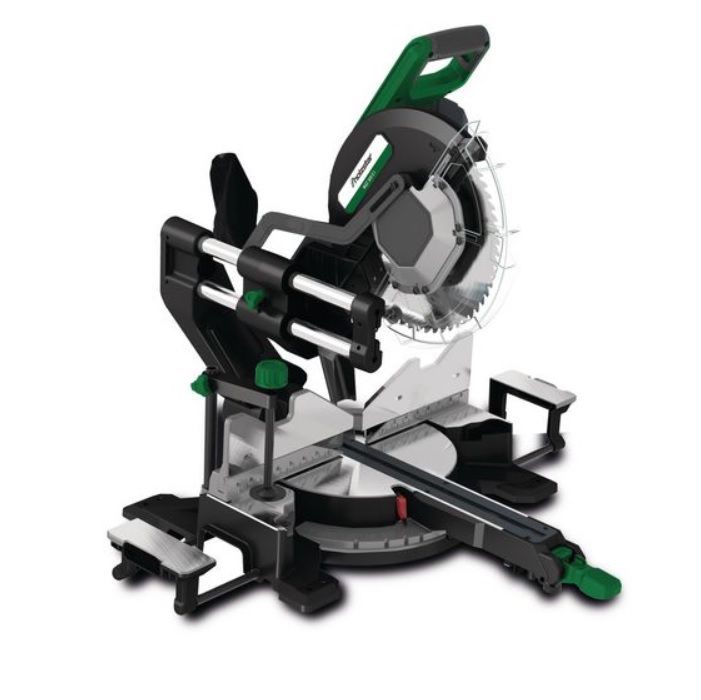

Sturmer Holzstar KGZ 305 E I Sliding Crosscut Mitre Saw 2000W 230v

Sturmer Holzstar

KGZ 305 E I Sliding Crosscut Mitre Saw 2000W 230v

ref: 5702306

• KGZ 305 E I 305mm Double bevel sliding crosscut mitre saw + laser 230v
• With infinitely adjustable double mitre and double tilt as standard
• Base plate and turntable made of die-cast aluminum, compact, robust and easy to transport

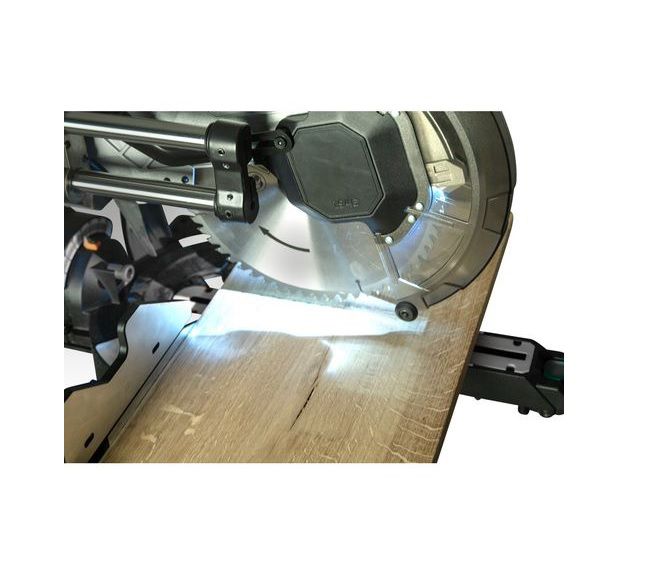

• LED projection on the workpiece for precise control of the cutting position
• Adjustable stop rails on the right and left
• Laterally extendable support aids for longer workpieces
• Double adjustable cross-cut depth limiter
• Pull function for extended cutting range

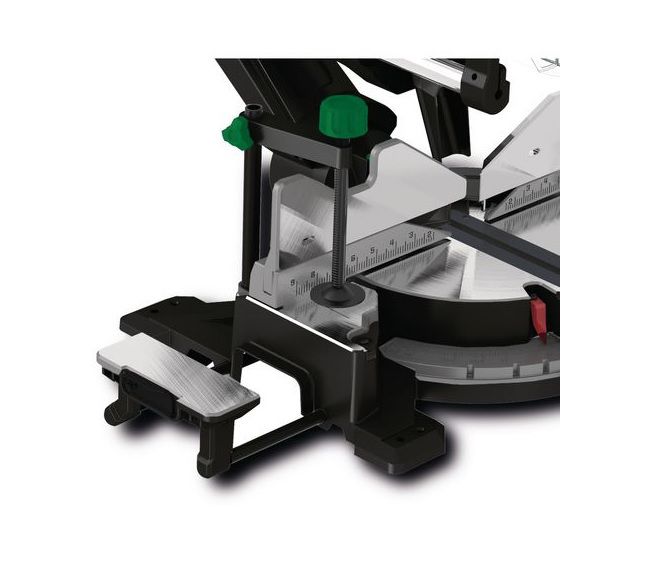

• With screw clamp and clamping device for secure workpiece locking as standard
• Suction nozzle for dust collection bag or connection of an external suction unit

• Saw blade diameter: 305 mm
• Max. bevel angle range left: 45 °
• Max. bevel angle range right: 45 °

Cutting capacity

• 0° inclination / 0° mitre: 340 x 105 mm
• -45° inclination / 0° mitre: 235 x 105 mm
• +45° inclination / 0° mitre: 340 x 60 mm
• 0° inclination / -45° mitre: 340 x 25 mm
• -45° inclination / -45° mitre: 340 x 60 mm
• +45° inclination / +45° mitre: 235 x 25 mm
