Sturmer Holzstar KGZ 255 E Sliding Crosscut Mitre Saw 255mm 1800W 230v
Product Code: STU/5702255
Brand: Stuermer
Low Stock - Please Call For Availability
£319.99 Inc. VAT
£266.66 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Holzstar

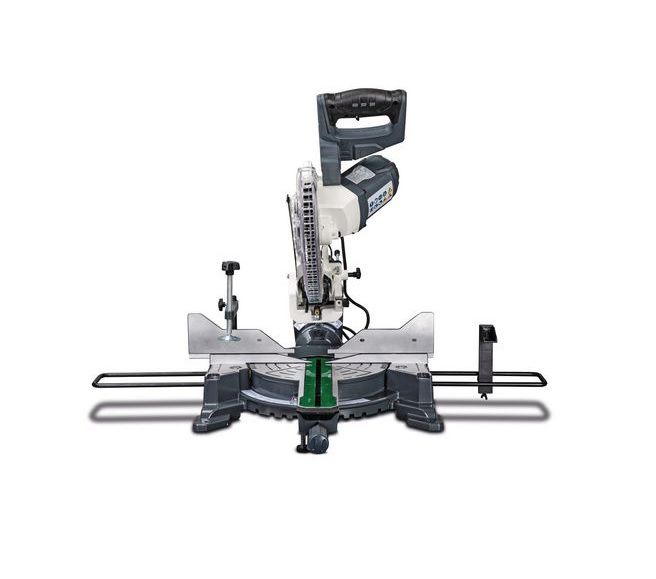

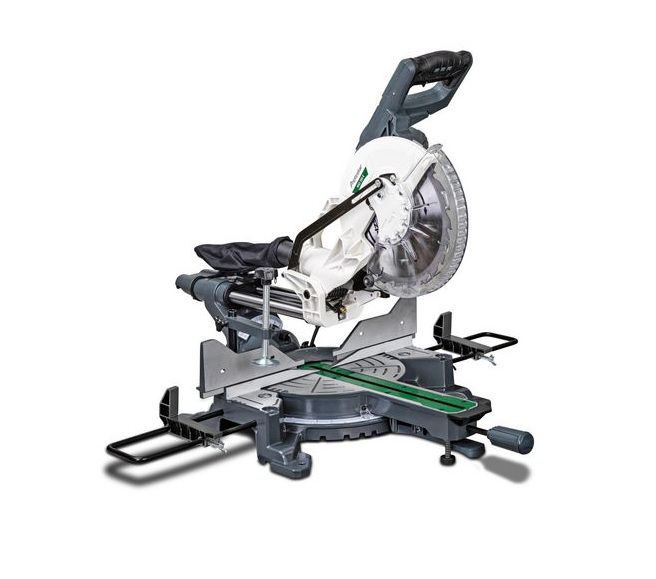

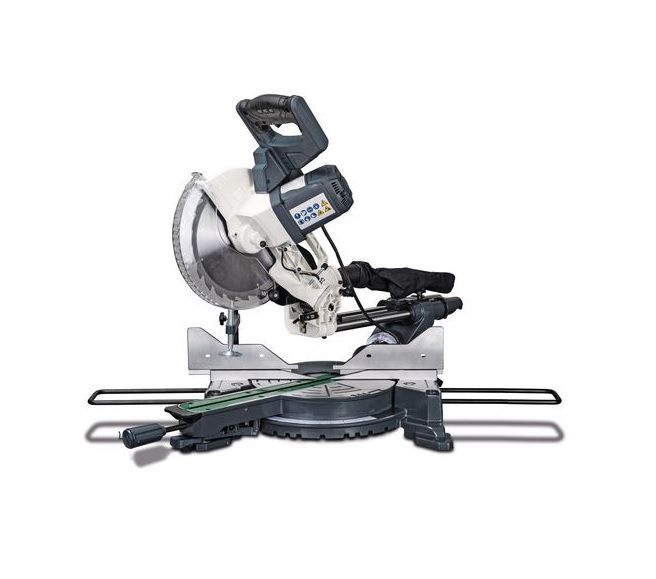

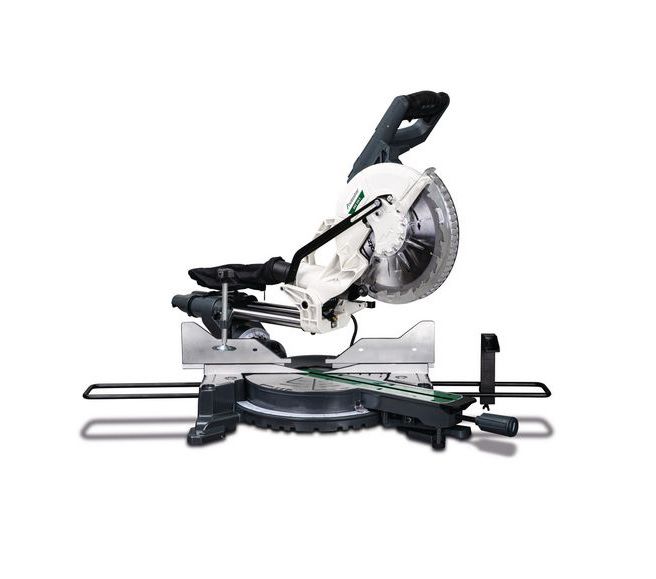

KGZ 255 E Sliding Crosscut Mitre Saw 255mm 1800W 230v
ref: 5702255
Key Features
- KGZ 255 E 255mm Sliding crosscut mitre saw + laser + 1800W motor 230v

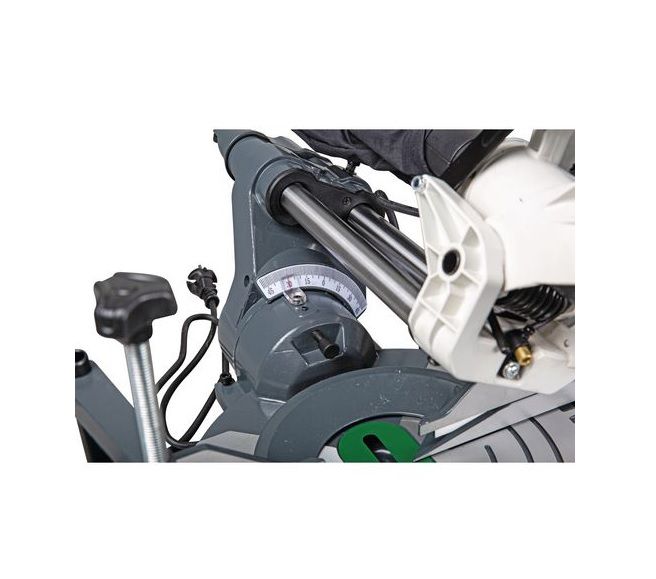

- With infinitely adjustable double mitre and double tilt as standard.

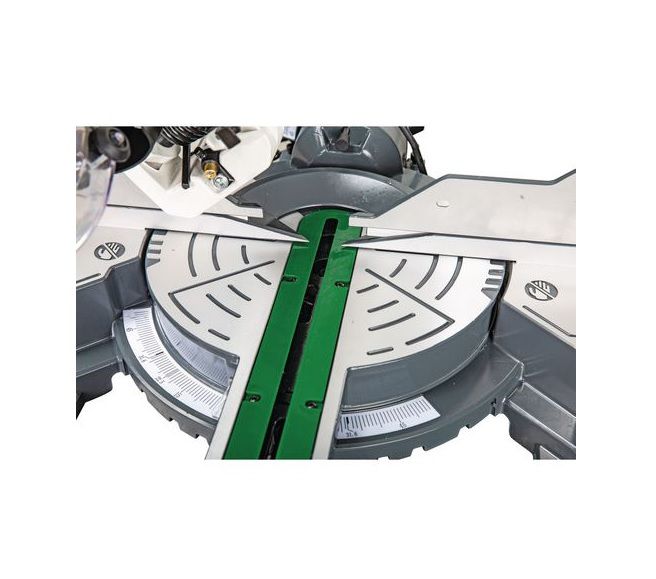

- Base plate and rotary table made of die-cast aluminium, at the same time compact, robust and easily transportable

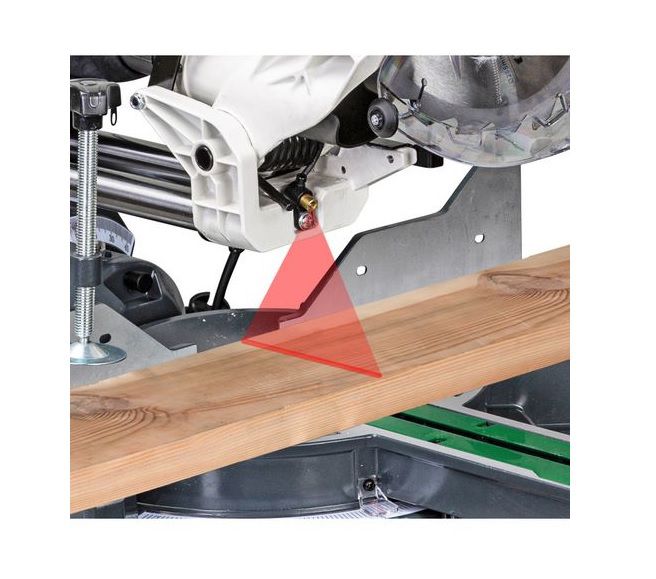

- Laser projection on the workpiece for precise control of the cutting position
- Adjustable stop rails on the right and left side

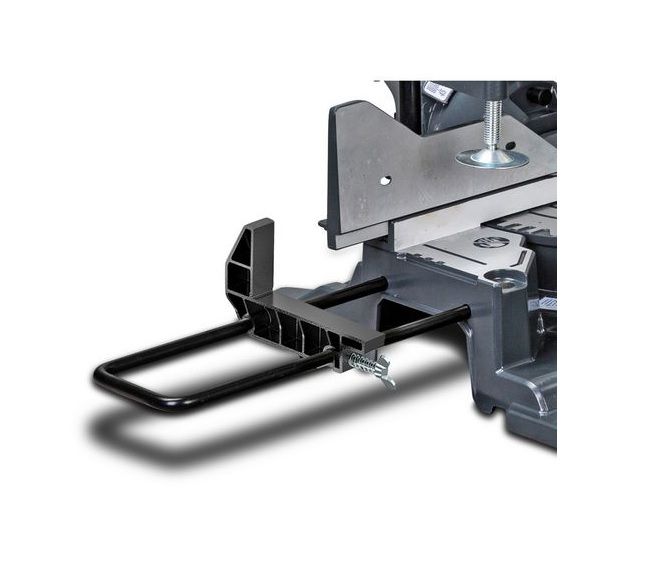

- Laterally extendable support aids for longer workpieces

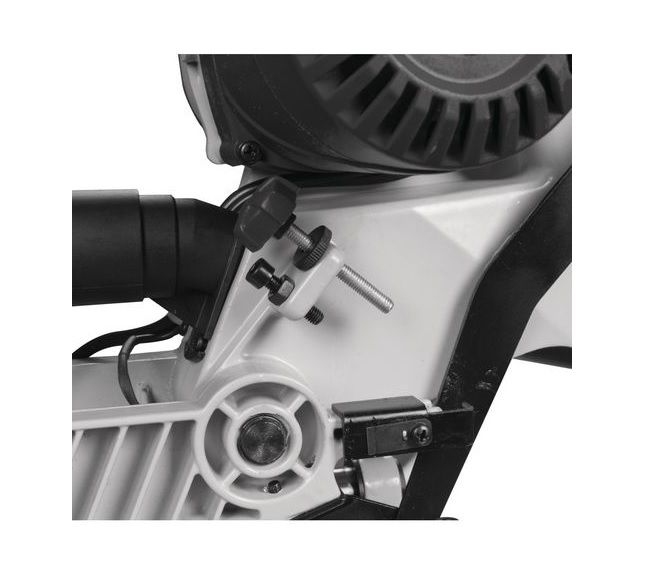

- 2-fold adjustable cross-cut depth limitation
- Pull function for extended cutting range
- Standard with hold-down clamp for safe workpiece locking
- Suction socket for dust collection bag or connection of an external suction unit
- Includes Hold-down clamp, dust collection bag, blade
Technical details
- Saw band speed: 5000 min¯¹
- Saw blade diameter: 255 mm
- Max. bevel angle range left: 45 °
- Max. bevel angle range right: 45 °
- Max. mitre left: 45 °
- Max. mitre right: 45 °
- VPE: 1
Cutting capacity
- 0° inclination / 0° mitre: 315 x 90 mm
- -45° inclination / 0° mitre: 215 x 90 mm
- +45° inclination / 0° mitre: 215 x 90 mm
- 0° inclination / -45° mitre: 315 x 40 mm
- -45° inclination / -45° mitre: 215 x 40 mm
- +45° inclination / +45° mitre: 215 x 40 mm
Dimensions and weights
- Length approx.: 900 mm
- Width/depth approx.: 550 mm
- Height approx.: 430 mm
- Weight approx.: 17 kg
