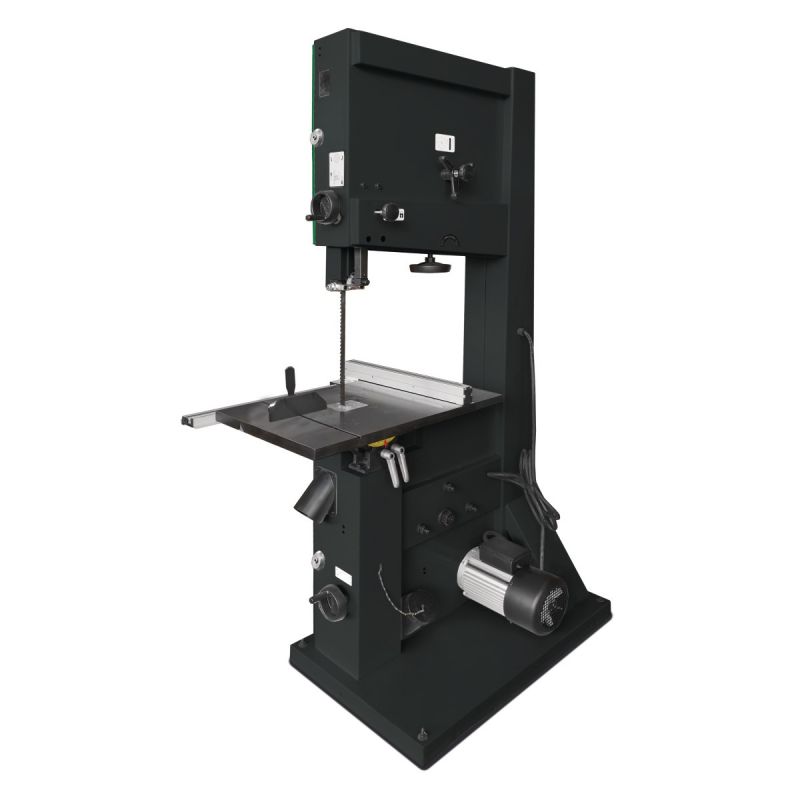

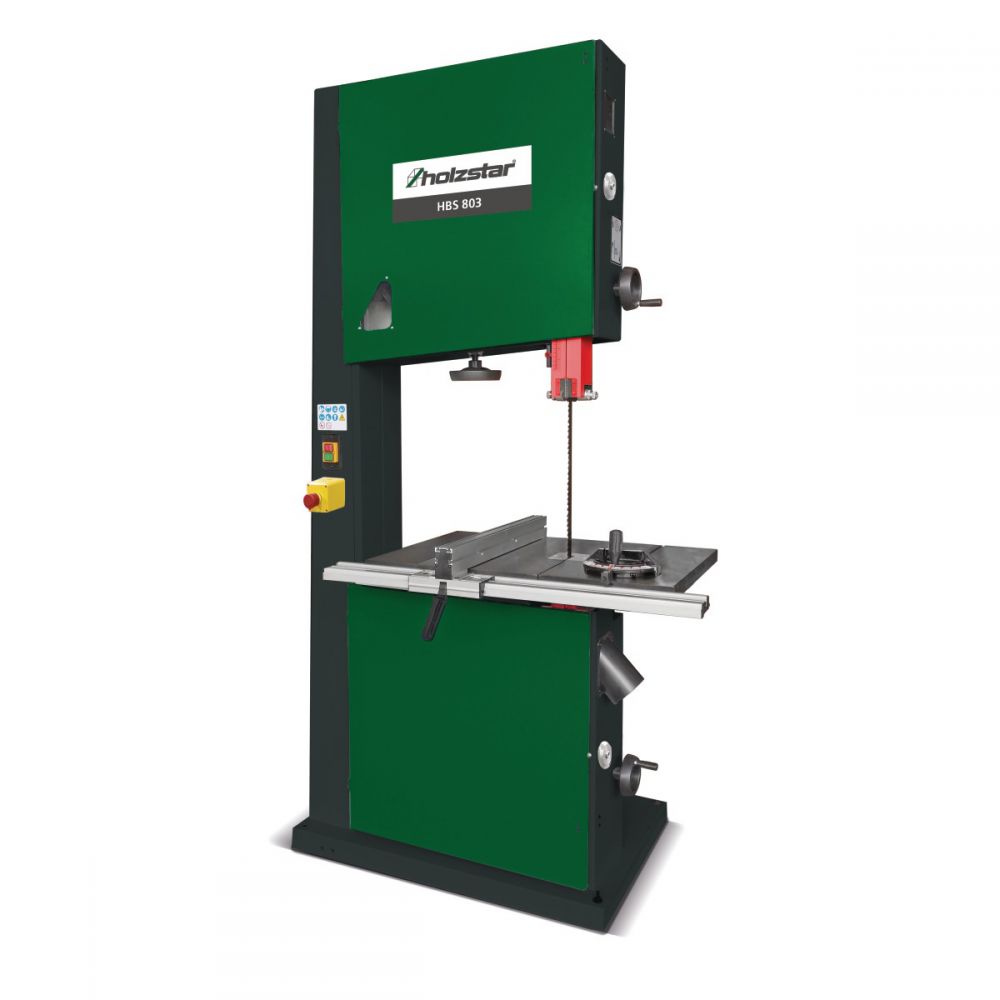

Sturmer Holzstar HBS 803 810mm Woodworking Bandsaw 3300W 415v

Sturmer Holzstar

HBS 803 810mm Woodworking Bandsaw 3300W 415v

• HBS 803 810mm Dia bandsaw + 420x800mm max cutting cap + mitre guage inc + rigid fence stop +3300W 415v motor
• Heavy-duty design with high dead weight for maximum running smoothness
• Quiet and precise running thanks to torsion-resistant machine housing
• Precisely adjustable aluminium parallel fence
• Cast-iron flywheels with rubber coating and chip scraper brush
• Large cast-iron saw table, swivels from 0° to +45° with ground and polished surface
• Precise cutting height adjustment via toothed rack with millimetre scale
• Two suction ports

Cutting ranges

• Max. cutting height 90°: 470 mm
• Max. cutting height 45°: 285 mm
• Max. cutting width with stop: 420 mm
• Max. cutting width without stop: 800 mm

Dimensions and weights

• Length approx.: 1300 mm
• Width/depth approx.: 800 mm
• Height approx.: 2500 mm
• Weight approx.: 365 kg

Electrical Data

• Delivery power: 3.3 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Extraction port

• Extraction port diameter: 2 x 120 mm

Saw band

• Speed(s): 1080 m/min
• Length: 5610 mm
• Width: 38 mm
• Strength: 0,65 mm

Work top(s)

• Length: 640 mm
• Width: 500 mm
• Height: 1050 mm
• Extension length: 200 mm
• Extension width: 500 mm
• Pivot: 0 – 45 °
• Pivot explanation: For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping!
