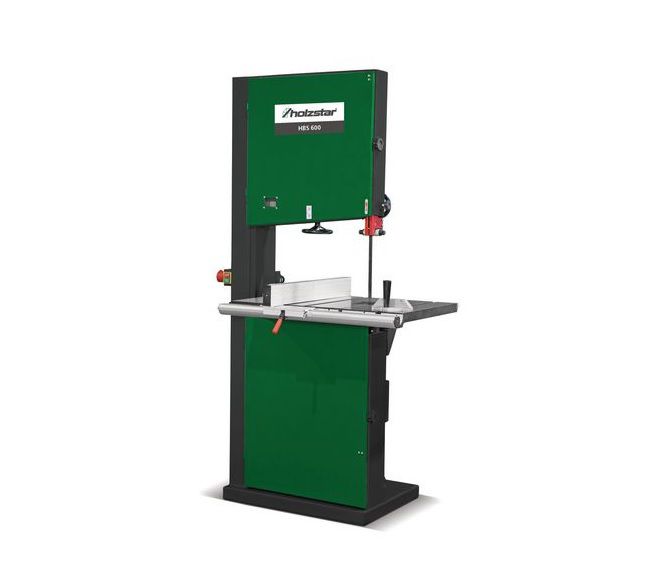

Sturmer Holzstar HBS 600 Woodworking Bandsaw 3000W 415v
Product Code: STU/5902463
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,999.99 Inc. VAT
£2,499.99 Exc. VAT
Sturmer Holzstar
HBS 600 Woodworking Bandsaw 3000W 415v
ref: 5902463
Key Features
- HBS 600 600mm Dia bandsaw + 310mm x 580mm max cutting cap + mitre gauge inc + cast iron table and flywheels + rigid rip fence with measurement scale + 3000W 415v motor
- Enclosed base with high stability
- Safe and run-free saw cuts in wood
- Heavy, tiltable cast-iron worktable with ground surface
- Powerful motor
- Safety switch shuts off the machine when the door is opened and prevents unintentional start-up
- Grey cast iron flywheels ensure smooth running
- Set cutting width can be easily read off a scale

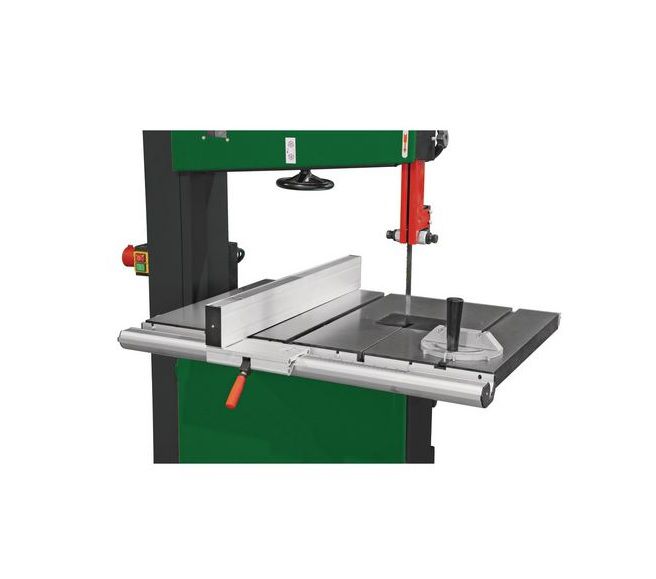

- The heavy cast iron work table with a ground surface can be inclined from 0 to 35°
Technical details
Cutting ranges
- Max. cutting height 90°: 310 mm
- Max. cutting width with stop: 540 mm
- Max. cutting width without stop: 580 mm
Dimensions and weights
- Length approx.: 1150 mm
- Width/depth approx.: 930 mm
- Height approx.: 2000 mm
- Weight approx.: 280 kg
Electrical Data
- Delivery power: 3,0 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter: 100 mm
Saw band
- Speed(s): 600 m/min
- Length: 4080 mm
- Width: 32 mm
- Strength: 0,65 mm
Work top(s)
- Length: 860 mm
- Width: 550 mm
- Height: 35 mm
- Pivot: 0 – 20 °
- Sliding carriage length: 200 mm
- Sliding carriage width: 100 mm
- VPE: 1
