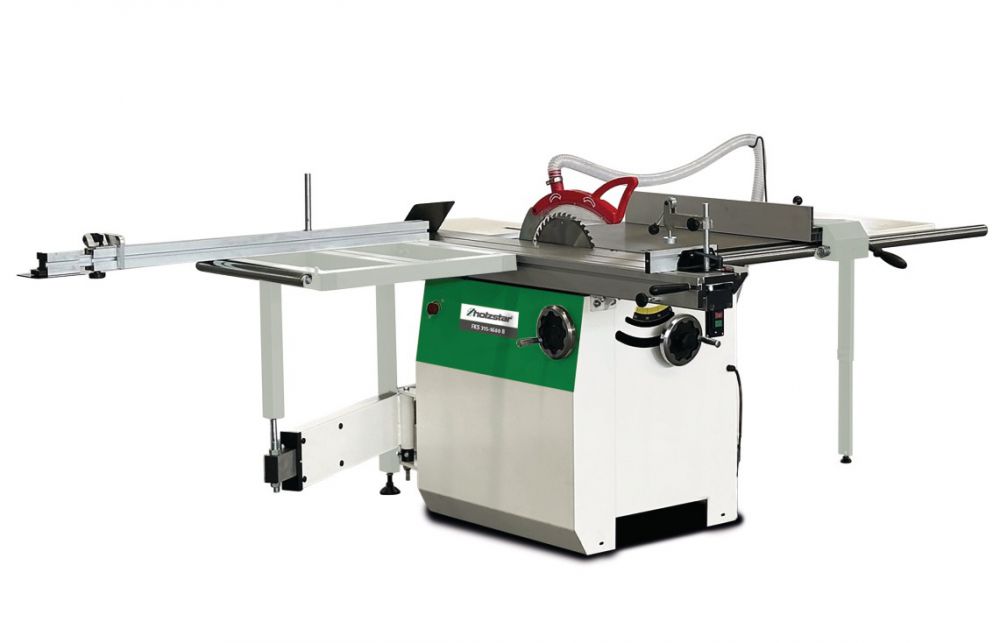

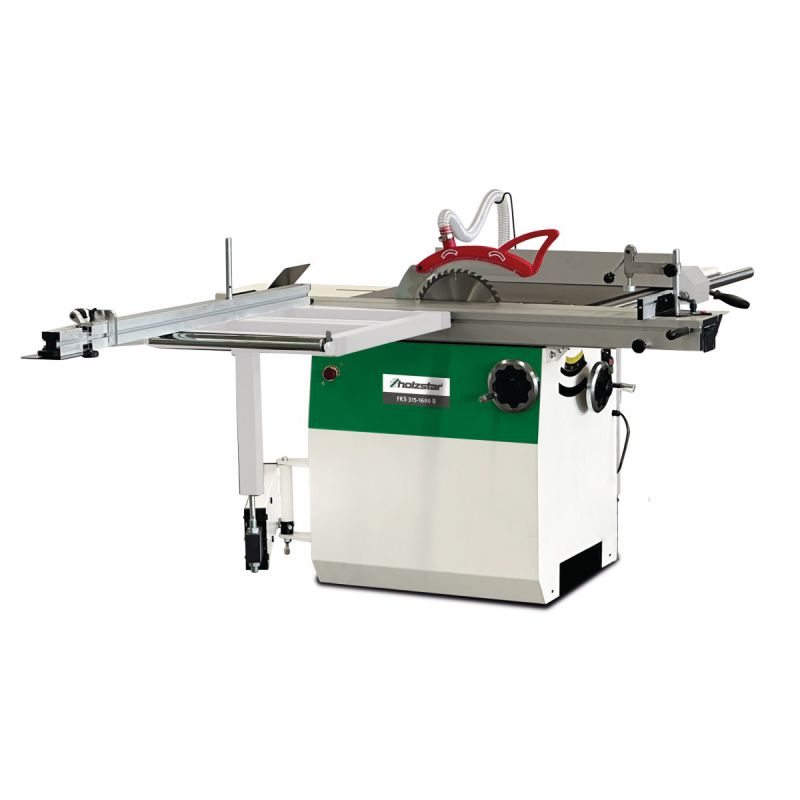

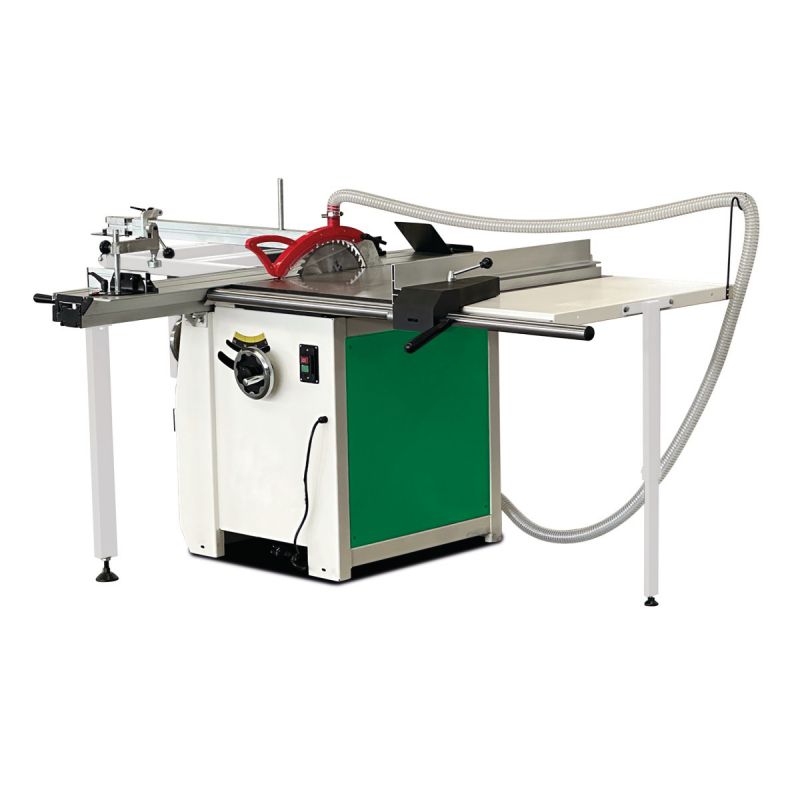

Sturmer Holzstar FKS315-1600B Sliding Table Saw with Pre-Scoring 315mm 400V Panel Saw

Sturmer Holzstar

FKS315-1600B Sliding Table Saw with Pre-Scoring 315mm 400V Panel Saw

The Holzstar FKS 315-1600 B is a professional sliding table saw designed for precise and efficient cutting of large panels and timber. Ideal for workshops and industrial use, it features a powerful motor, integrated scoring unit, and a robust sliding carriage system. Built for accuracy and durability, it delivers smooth, vibration-free performance for demanding woodworking tasks.

• Powerful 3.0kW motor for consistent cutting performance
• Sliding carriage with 1600mm travel for large workpieces

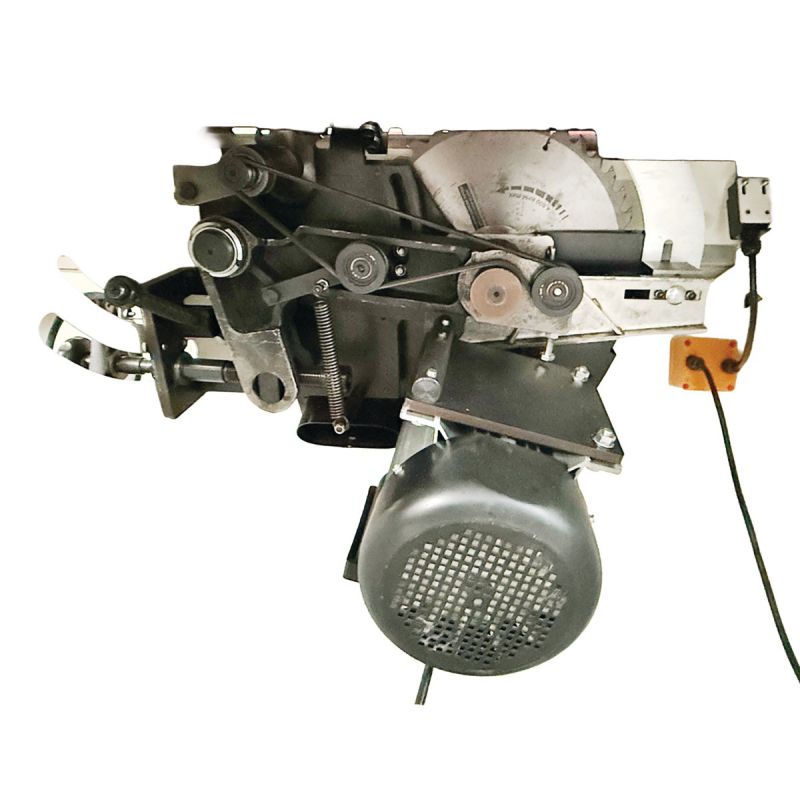

• Integrated scoring unit for clean, splinter-free cuts
• Large cast iron work table for stability and precision
• Adjustable blade height and tilt (90°–45°) via handwheel
• Telescopic fence with angle adjustment from -45° to +45°
• Heavy-duty outrigger table with support arm and roller
• High cutting capacity up to 100mm depth

• 1 x Holzstar FKS 315-1600 B Sliding Table Saw
• 1 x Mitre Fence
• 1 x Hold-Down Clamp
• 1 x Parallel Fence
• 1 x User Manual

• Power Source: Electric (3 Phase)
• Voltage: 400V
• Frequency: 50Hz
• Motor Power (Input): 3.0 kW
• Motor Power (Output): 2.3 kW
• Motor Speed: 2800 min⁻¹
• Blade Diameter: 315 mm
• Blade Speed: 4500 min⁻¹
• Scoring Blade Diameter: 100 mm
• Scoring Blade Speed: 8500 min⁻¹
• Max Cutting Height (90°): 100 mm
• Max Cutting Height (45°): 80 mm
• Max Cutting Width (Rip Fence): 900 mm
• Max Cross Cut Width: 2430 mm
• Sliding Carriage Length: 1600 mm
• Table Size: 1300 x 1260 mm
• Work Height: 865 mm
• Extraction Port (Main): 98 mm
• Extraction Port (Guard): 40 mm
• Sound Pressure Level: 85 dB(A)
• Dimensions: 4700 x 3850 x 1300 mm
• Net Weight: 270 kg
• Gross Weight: 310 kg
