Sturmer Holzstar DB 1202 Vario Woodturning Lathe 1185mm x 460mm 1500W 230v

X
Product Code: STU/5921202
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,759.99 Inc. VAT
£2,299.99 Exc. VAT
Stuermer

Sturmer Holzstar

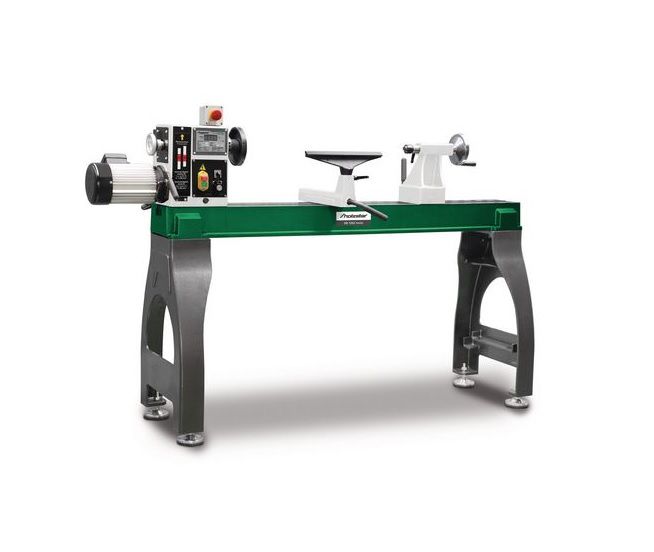

DB 1202 Vario Woodturning Lathe 1185mm x 460mm 1500W 230v

ref: 5921202



Key Features

  • DB 1202 VARIO Woodturning lathe + 1185x460mm capacity + 2 x variable speed range changes 0-3200rpm + R&L rotation + 1500W motor 230v
  • The torsion-resistant cast iron machine bed ensures smooth running and precision
  • Tailstock and headstock are also made of sturdy gray cast iron

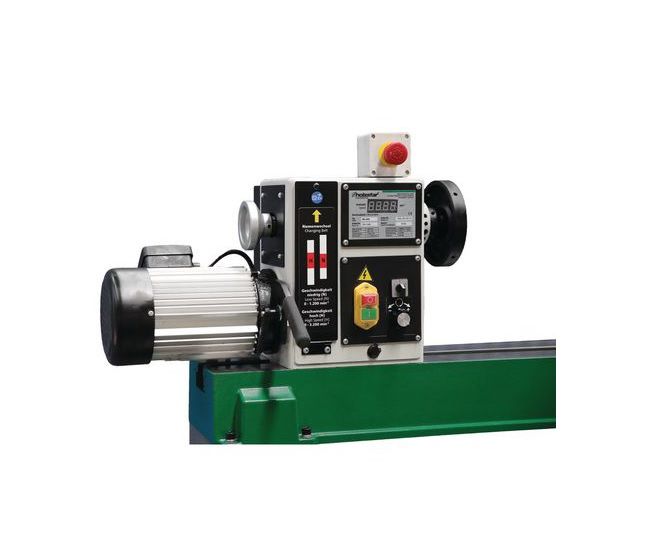

  • Drive can be moved freely on the machine bed
  • Tailstock with quick release lever and handwheel
  • Tailstock standard with revolving center point
  • Tailstock quill with bore for machining long workpieces
  • The tailstock is easily and quickly clamped on the machine bed thanks to single lever clamping

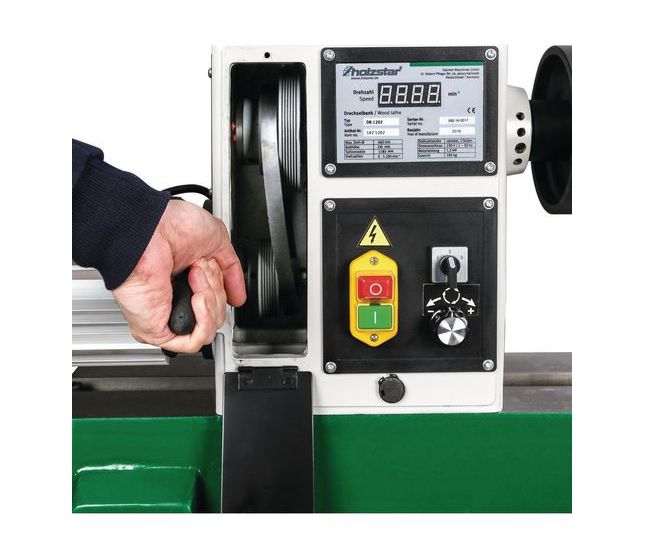

  • Variable speed regulation from 0 - 3,200 rpm in two speed levels: 0 - 1,200 and 0 - 3,200 rpm

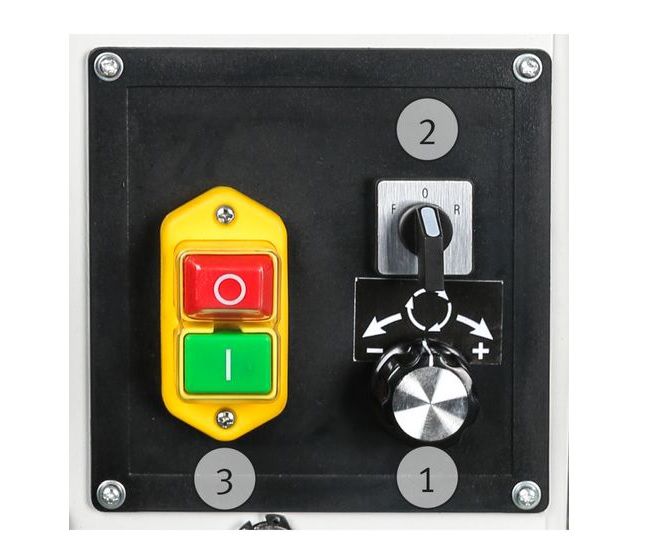

  • A digital display shows the currently selected speed
  • Right-left rotation as standard



Items included

  • Revolving center of gravity
  • Digital display
  • Cast iron machine bed
  • Tailstock with quick release lever and handwheel



Technical details

  • Max. turning diameter: 460 mm
  • Speeds: 0 – 3200 min¯¹
  • Speed stages: 2
  • Speed control: Electronically variable
  • Travel of tailstock sleeve: 110 mm
  • VPE: 1

Dimensions and weights

  • Length approx.: 2060 mm
  • Width/depth approx.: 500 mm
  • Height approx.; 1200 mm
  • Weight approx.: 189 kg

Electrical Data

  • Supply voltage: 230 V
  • Mains frequency: 50 Hz



DB 1202 Vario Holzstar Lathe Manual
