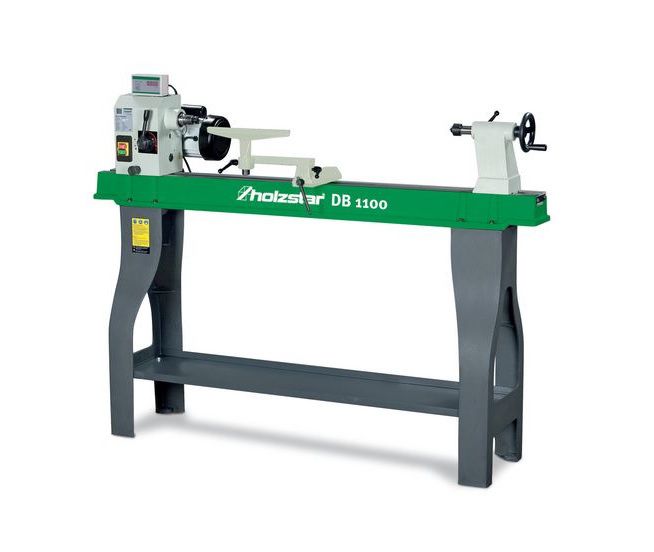

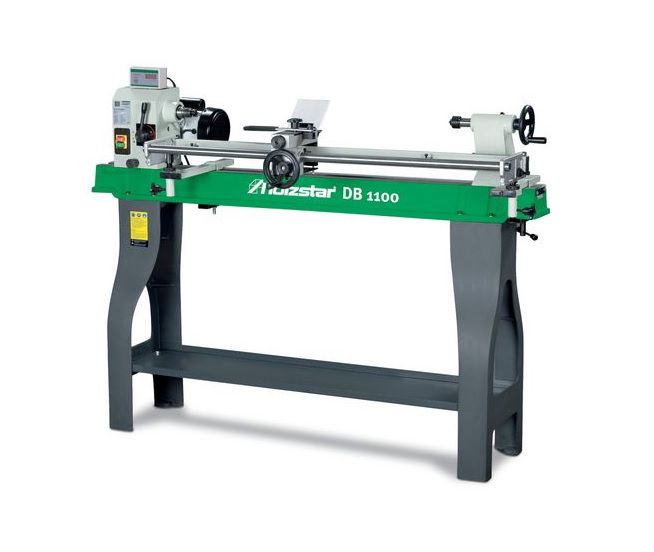

Sturmer Holzstar DB 1100 Woodturning Lathe 1100mm x 358mm 750W 230v

X
Product Code: STU/5921100
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,199.99 Inc. VAT
£999.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

DB 1100 Woodturning Lathe 1100mm x 358mm 750W 230v

ref: 5921100



Key Features

  • DB 1100 Woodturning lathe + 1100x358mm capacity + variable speed + digital display + rotating headstock + 750W motor 230v
  • Torsionally rigid gray cast iron machine bed for smooth running and precision
  • Tailstock and headstock also made of sturdy gray cast iron
  • Wide, easily adjustable turning steel support
  • Tailstock with quick release lever and handwheel
  • Tailstock (stroke 50 mm) as standard with revolving center point
  • Tailstock quill with bore for machining long workpieces

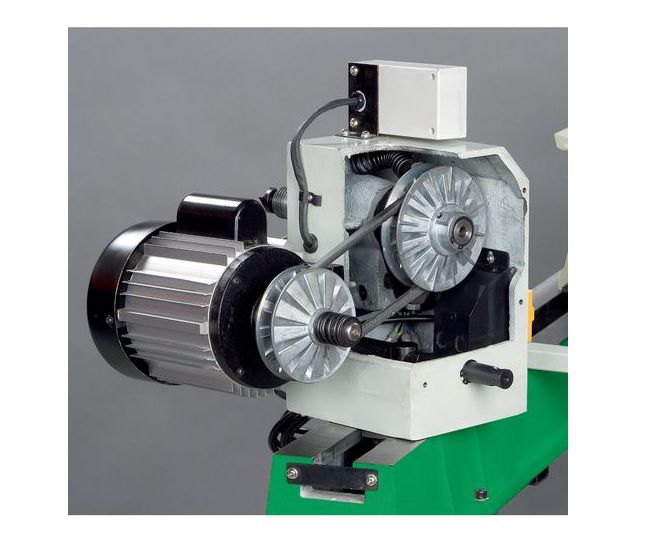

  • Variable speed regulation from 500 - 2000 min-1 with digital speed display

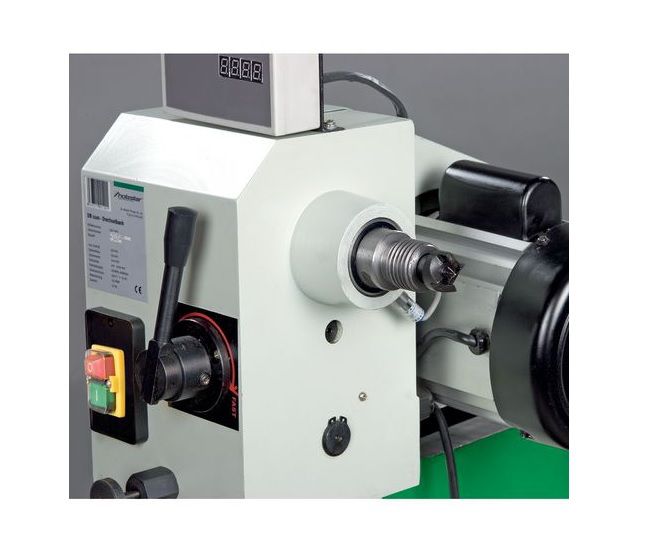

  • The headstock can be rotated by 180°

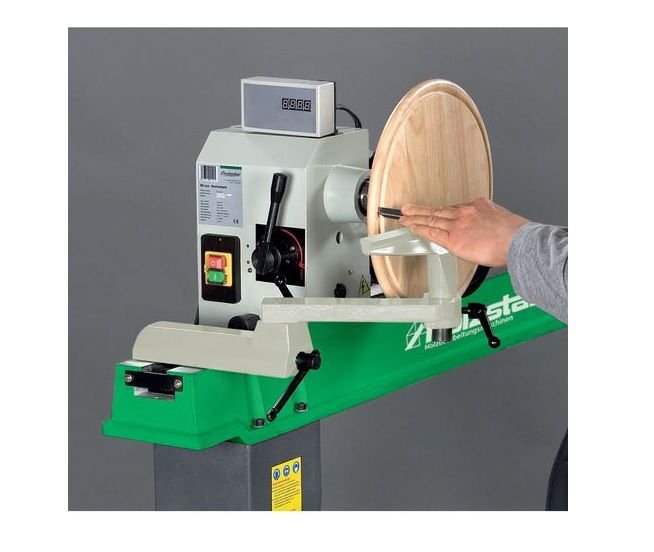

  • Ideal for turning large diameter



Items included

  • Face plate Ø 15 cm
  • Revolving tailstock tip
  • substructure
  • Four zag face driver



Technical details

  • Max. turning diameter: 358 mm
  • Speeds: 500 - 2000 min¯¹
  • Speed stages: 10
  • Speed control: Mechanical variable
  • Travel of tailstock sleeve: 50 mm
  • VPE: 1

Dimensions and weights

  • Length approx.: 1620 mm
  • Width/depth approx.: 340 mm
  • Height approx.: 1215 mm
  • Weight approx.: 111 kg

Electrical Data

  • Supply voltage: 230 V
  • Mains frequency; 50 Hz
