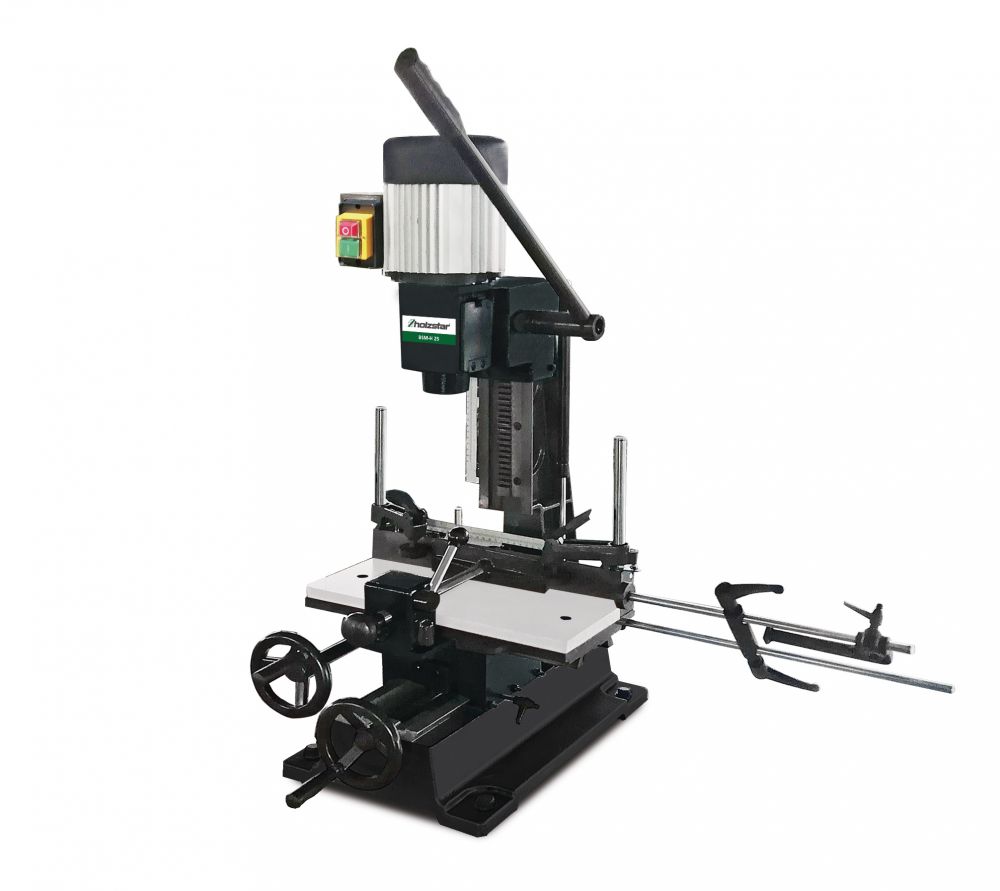

Sturmer Holzstar BSM-H 25 Drilling and Mortising Machine 230v

Sturmer Holzstar

BSM-H 25 Drilling and Mortising Machine 230v

ref: 5906125

• BSM-H 25 Bench top mortiser + cast iron construction + dovetail guides + 6-25.4mm mortising cap + inc 1/4"/3/8"/1/2" chisels & bits + 750W motor 230v
• For easy production of slot-pin connections
• Solid cast construction of the machine frame with precise dovetail guides in each axis
• Long lever for quill stroke for chiseling out with little effort
• Movable clamping jaws can be mounted in three different positions
• Two adjustable stops each for X and Y direction
• The machine head is additionally held with a gas pressure spring for easier handling
• Tool holder via drill chuck with gear rim

Dimensions and weights

• Length approx.: 790 mm
• Width/depth approx.: 620 mm
• Height approx.: 1065 mm
• Weight approx.: 89 kg

Electrical Data

• Rating: 0.75 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Spindle

• Max. height of workpiece: 210 mm
• Max. depth of workpiece: 145 mm
• Max. Chisel stroke: 76 mm
• Chisel sizes: 6 – 25.4 mm
• Drill chuck mount: B16-16mm
• Speed: 1400 min¯¹

Work top(s)

• Work table length: 400 mm
• Work table width: 150 mm
• Table travel X: 175 mm
• Table travel Y: 150 mm

BSM-H 25 Holzstar Mortising Machine Manual
