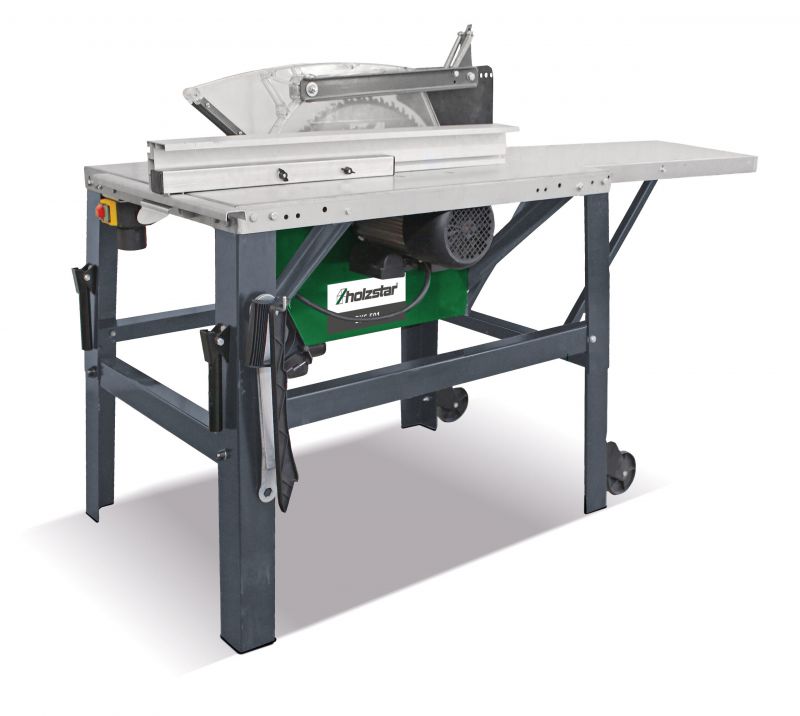

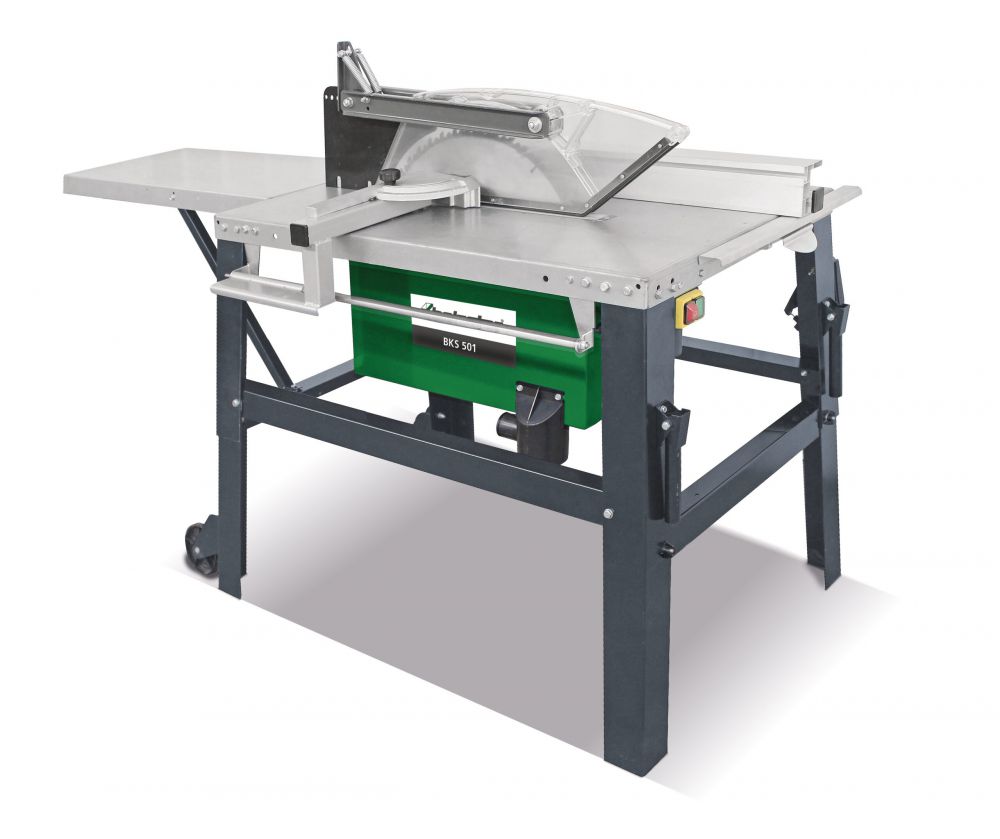

Sturmer Holzstar BKS 501 Site Saw Table Sawbench 500mm 4200W 415v

X
Product Code: STU/5740050
Brand: Stuermer
In Offsite Stock - Delivery in 4 to 5 Days
£1,043.99 Inc. VAT
£869.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Holzstar

BKS 501 Site Saw Table Sawbench 500mm 4200W 415v

ref: 5740050



Key Features

  • BKS 501 500mm HD Construction site sawbench + 150mm max depth of cut + 500mm dia TCT sawblade (44T) + foldaway X/Cut & mitre fence assa + folding tablelength extension + transport wheels & lifting handles + 4200W motor 415v
  • Transparent protective hood for the safety of the user and for an optimal view of the cutting line
  • Angle adjustable cross cutting device with wedge cutting gauge on rod guided by maintenance-free slide bearings
  • aluminium parallel fence with high and flat contact edge and eccentric clampingfacilitates the trimming of boards, rip cuts, bevel and angle cuts
  • Folding table extension for long workpieces
  • Easy to move due to integrated running gear and folding transport handles

Equipment:

  • Pendulum safety guard, transparent
  • Angle-adjustable cross-cutting device with wedge cutting gauge, fold-down
  • Aluminium parallel fence with high and flat contact edge
  • Table extension (800 x 400 mm), fold-down
  • Large crane eyelets
  • Phase inverter
  • Brackets for aluminium parallel fence and mounting tool



Items included

  • 1x saw blade 500x30x4 mm Z44
  • push stick
  • push handle
  • pendulum saw blade protection hood
  • tool for saw blade change
  • foldable table extension



Technical details

Circular saw unit

  • Max. cutting height 90°: 150 mm
  • (Main) saw blade diameter: 500 mm
  • (Main) saw blade speed: 2800 min¯¹

Dimensions and weights

  • Length approx.: 1870 mm
  • Width/depth approx.: 810 mm
  • Height approx.: 1170 mm
  • Weight approx.: 103 kg

Electrical Data

  • Absorbed power drive motor: 4.2 kW
  • Efficiency class drive motor: IE3
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter bottom: 95 mm
  • Saw blade protection extraction port diameter: 50 mm

Sliding carriage and table

  • Table length: 1000 mm
  • Table width: 660 mm
  • Work height: 850 mm
  • VPE: 1
