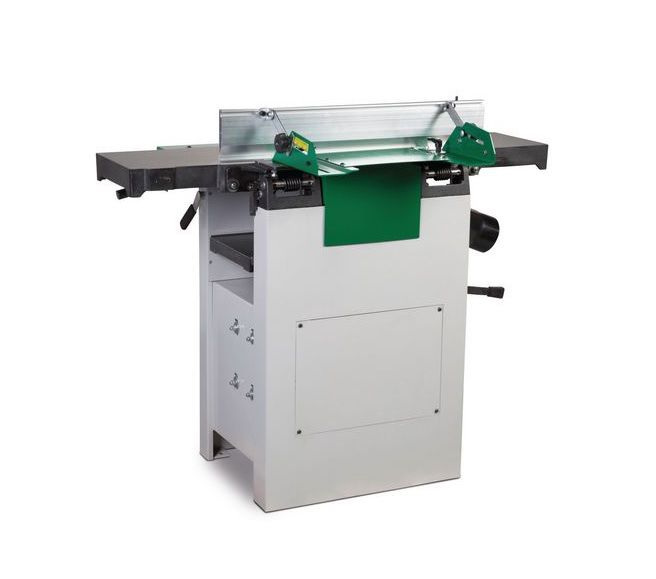

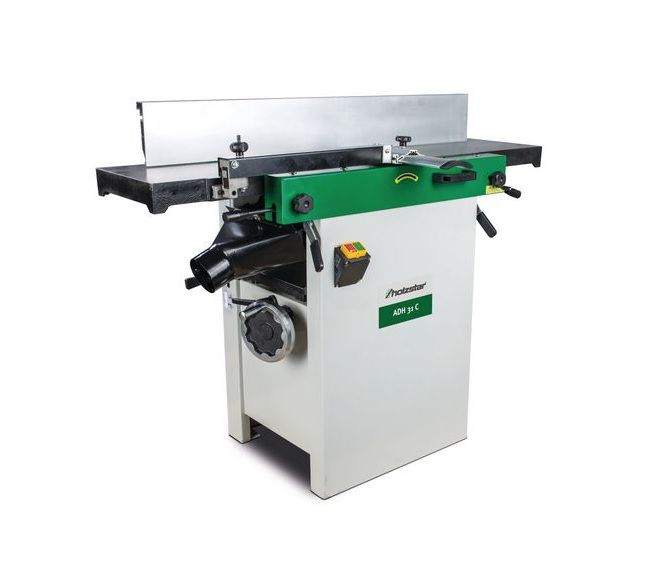

Sturmer Holzstar ADH 31C Planer Thicknesser 308mm x 225mm 2200W 415v

X
Product Code: STU/5904032
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£2,759.99 Inc. VAT
£2,299.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

ADH 31C Planer Thicknesser 308mm x 225mm 2200W 415v

ref: 5904032



Key Features

  • ADH 31C 308x225mm Planer/Thicknesser + 3 x HSS planing knives + 2200W motor 415v
  • Surface and thickness planer
  • For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
  • Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing

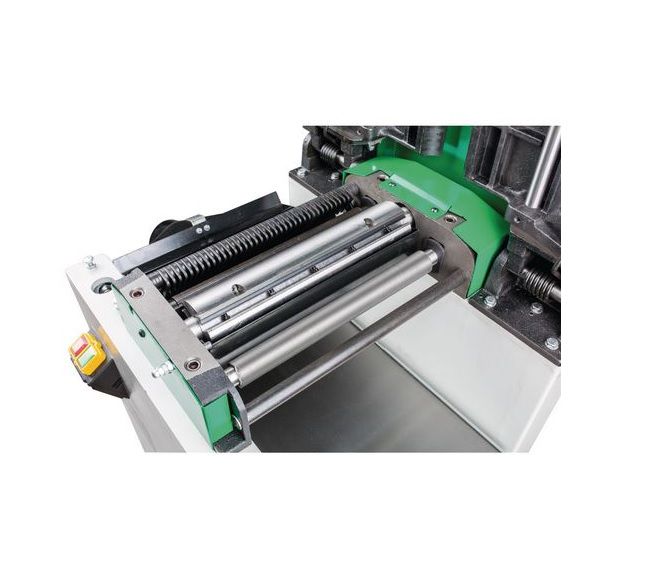

  • Automatic workpiece feed

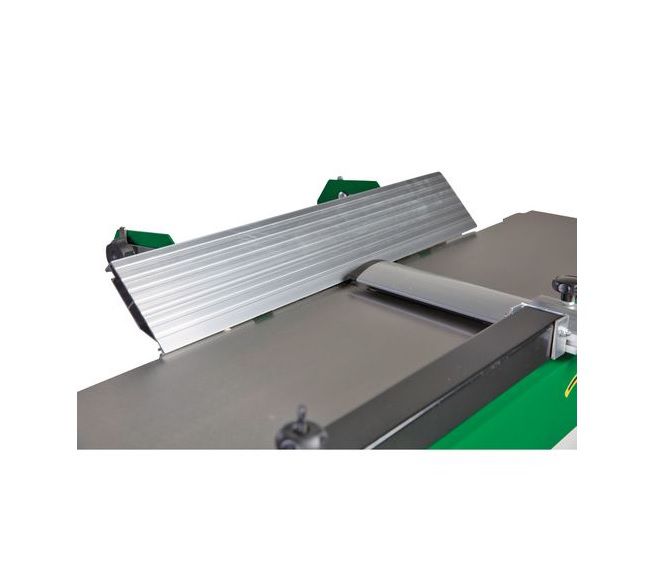

  • Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
  • Large dimensioned dressing table made of ribbed die-cast aluminum
  • Large thick cast iron table with ground surface

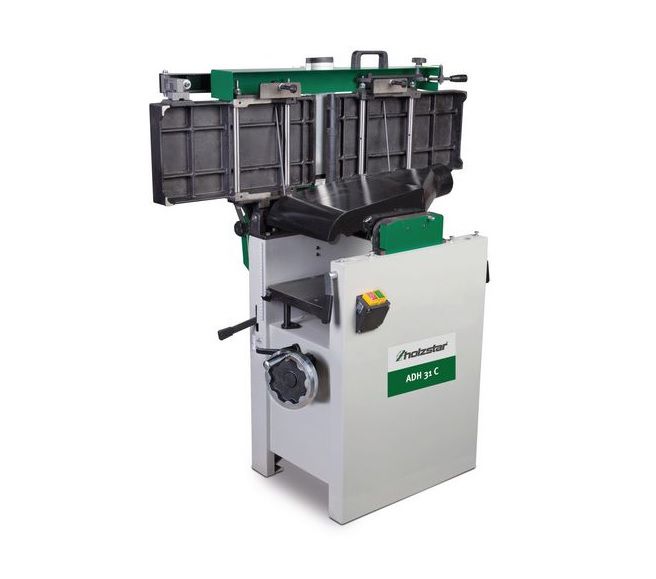

  • Integrated, foldable chip extractor hood

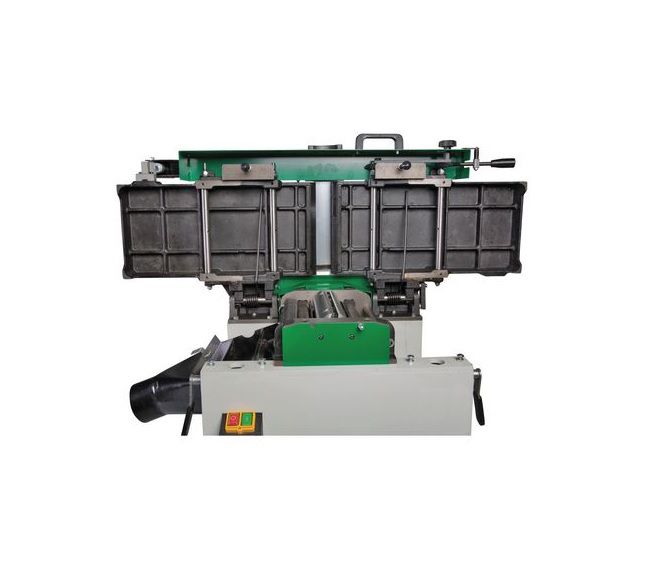

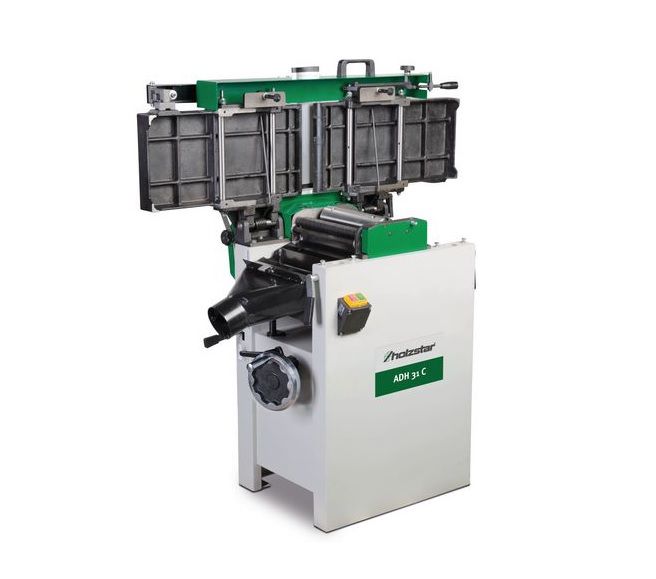

  • Simultaneous folding up of the dressing tables with spring support for a quick and easy changeover for thickness planing in seconds
  • Thanks to the fixed suction hood, it is no longer necessary to change the suction hose during the conversion
  • time-saving
  • The table height adjustment is easy and convenient via a handwheel



Technical details

Dimensions and weights

  • Length approx.: 1300 mm
  • Width/depth approx.: 720 mm
  • Height approx.: 1010 mm
  • Weight approx.: 210 kg

Electrical Data

  • Drive motor output: 2,2 kW
  • Absorbed power drive motor: 2.77 kW
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter thickness: 100 mm
  • Extraction port diameter joints: 100 mm

Feed

  • Speed: 7 m/min

Jointing

  • Max. cutting depth: 3 mm
  • Planing stop pivoting range: 90 – 45 °

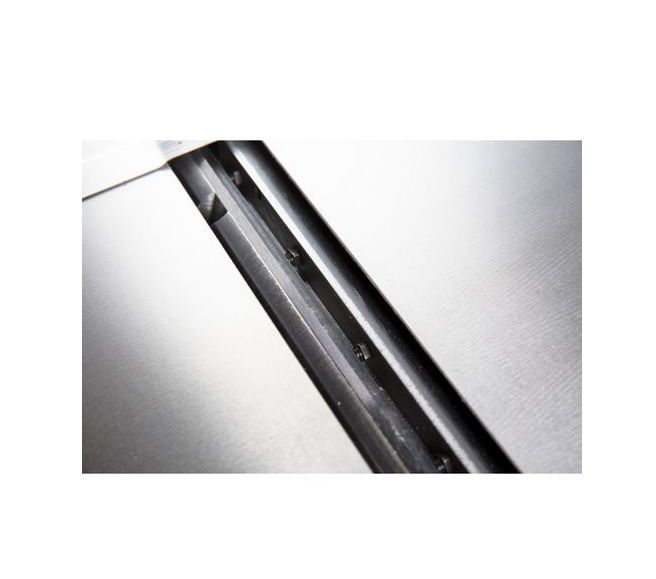

Planing knife shaft

  • Type: Strip planer blade shaft
  • Number of planing blades: 3 St
  • Speed: 5200 min¯¹
  • Max. planing width: 308 mm

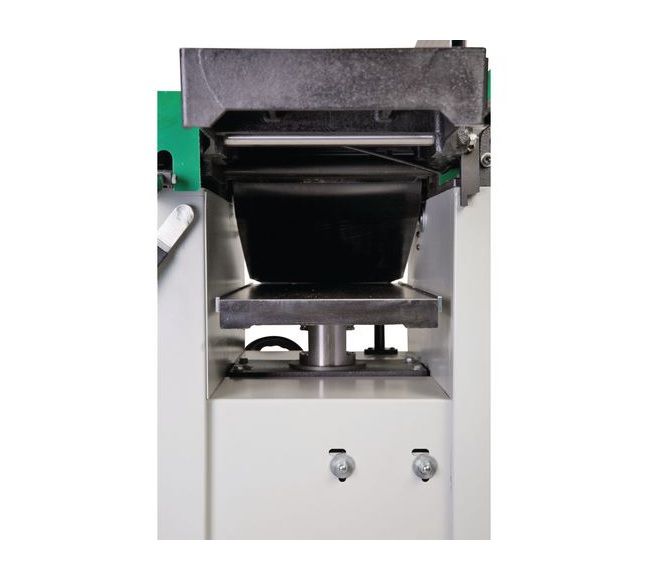

Thickness

  • Working height min.: 5 mm
  • Working height max.: 225 mm
  • Max. cutting depth: 3 mm
  • VPE: 1
