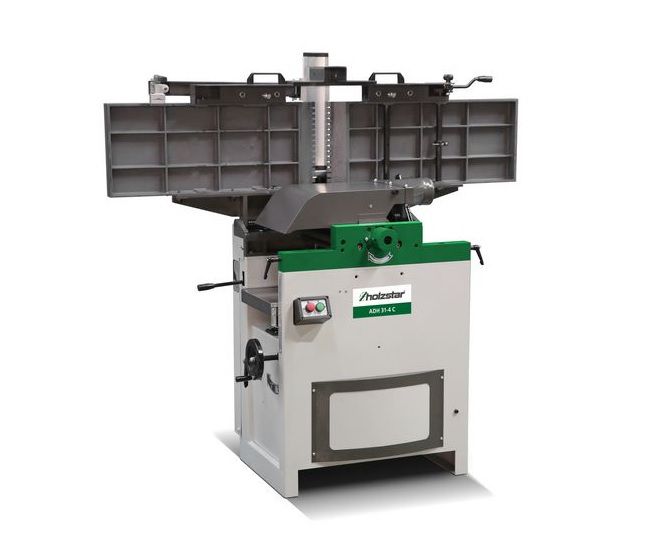

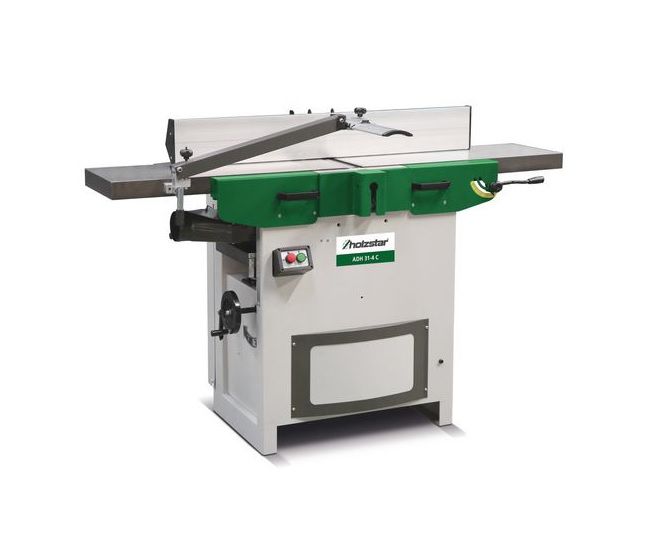

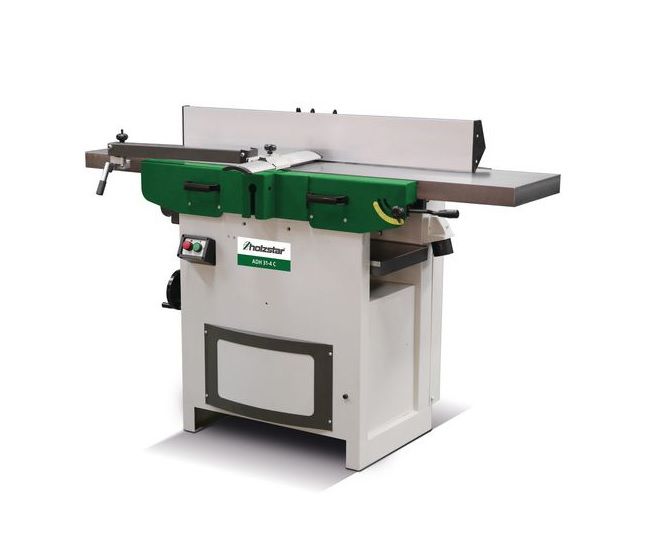

Sturmer Holzstar ADH 31-4 C Planer Thicknesser 310mm x 220mm 3000W 415v
Product Code: STU/5904013
Brand: Stuermer
Available to Order Please Call
01726 828 388
£2,999.99 Inc. VAT
£2,499.99 Exc. VAT
Sturmer Holzstar
ADH 31-4 C Planer Thicknesser 310mm x 220mm 3000W 415v
ref: 5904013
Key Features
- ADH 31-4C 310x220mm Planer/Thicknesser + 4 x HSS planing knives + 3000W motor 415v
- For angular joining (90°) and precise planing of solid wood boards, planks and strips
- Automatic workpiece feed
- Integrated, foldable swarf extraction hood
- Aluminum dressing stop that can be tilted comfortably by + 45°
- Simple and precise adjustment of the chip removal
- Large dimensioned dressing table made of ribbed aluminum die-cast
- Large thickness table made of gray cast iron with a polished surface
- Includes strip planer knife set
Technical details
Dimensions and weights
- Length approx.: 1605 mm
- Width/depth approx.: 630 mm
- Height approx.: 860 mm
- Weight approx.: 292 kg
Electrical Data
- Drive motor output: 2,2 kW
- Absorbed power drive motor: 3,0 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter thickness: 100 mm
- Extraction port diameter joints: 100 mm
Feed
- Speed: 6.5 m/min
Jointing
- Max. cutting depth: 3 mm
- Planing stop pivoting range: 90 – 45 °
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 4 St
- Speed: 4000 min¯¹
- Max. planing width: 310 mm
Thickness
- Working height min.: 5 mm
- Working height max.: 220 mm
- Max. cutting depth: 5 mm
- VPE: 1
