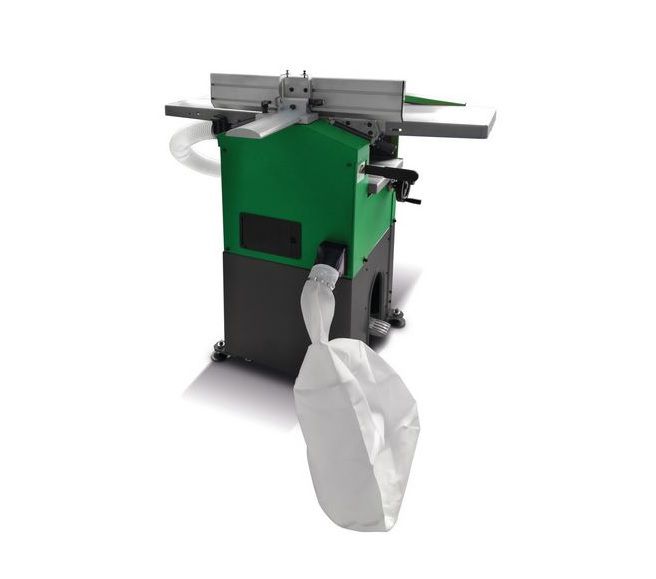

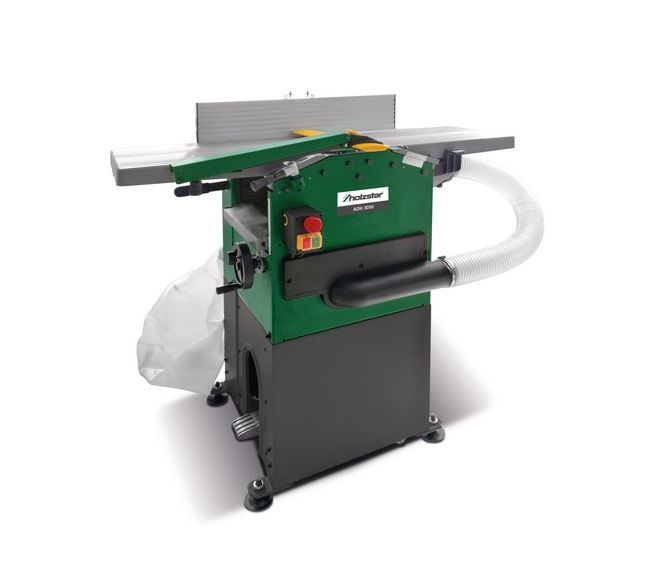

Sturmer Holzstar ADH 3050 Planer Thicknesser 305mm x 160mm 1800W 230v

X
Product Code: STU/5904130
Brand: Stuermer
In Offsite Stock - Delivery in 4 to 5 Days
£1,439.99 Inc. VAT
£1,199.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Holzstar

ADH 3050 Planer Thicknesser 305mm x 160mm 1800W 230v

ref: 5904130



Key Features

  • ADH 3050 AS 305x160mm Planer/Thicknesser + floor stand + Integral dust extraction system + floor standing base unit + 1800W motor 230v
  • Surface and thickness planer. Compact model with integrated suction for do-it-yourselfers and craftsmen
  • For angular joining (90°) and precise planing of solid wood boards and moldings
  • Automatic workpiece feed
  • Rubberized extraction roller protects the wood surface when planing thick
  • Suction integrated in the substructure
  • With chassis as standard
  • Simple and precise adjustment of the chip removal
  • Dressing table made of milled cast aluminum
  • Space-saving compact design



Technical details

Dimensions and weights

  • Length approx.: 1140 mm
  • Width/depth approx.: 800 mm
  • Height approx.: 1075 mm
  • Weight approx.: 93 kg

Electrical Data

  • Drive motor output: 1.25 kW
  • Absorbed power drive motor: 1,8 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Suction hood connection diameter: 100 mm
  • Suction unit connection diameter: 75 mm

Feed

  • Speed: 8.5 m/min

Jointing

  • Max. cutting depth: 3 mm
  • Planing stop pivoting range: 90 – 45 °

Planing knife shaft

  • Type: Strip planer blade shaft
  • Number of planing blades: 2 St
  • Speed: 6700 min¯¹
  • Max. planing width: 305 mm

Thickness

  • Working height min.: 6 mm
  • Working height max.: 160 mm
  • Working length min.: 250 mm
  • Max. cutting depth; 2 mm
  • VPE: 1



ADH 3050 Holzstar Planer Thicknesser Manual
