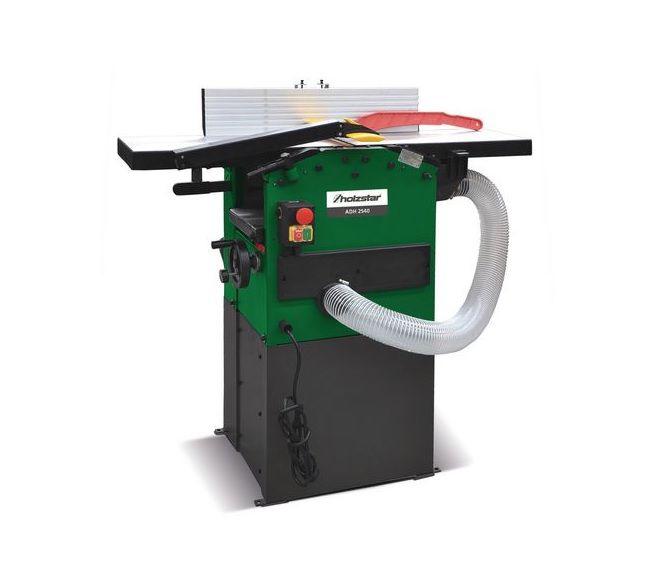

Sturmer Holzstar ADH 2540 Planer Thicknesser 254mm x 160mm 1800W 230v
Product Code: STU/5904125
Brand: Stuermer
In Offsite Stock - Delivery in 4 to 5 Days
£1,289.99 Inc. VAT
£1,074.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Sturmer Holzstar
ADH 2540 Planer Thicknesser 254mm x 160mm 1800W 230v
ref: 5904125
Key Features
- ADH 2540 AS 254x160mm Planer/Thicknesser + Integral dust extraction system + floor standing base unit + 1800W motor 230v
- Surface and thickness planer. Compact model with integrated suction for do-it-yourselfers and craftsmen
- For angular joining (90°) and precise planing of solid wood boards and moldings
- Automatic workpiece feed
- Rubberized extraction roller protects the wood surface when planing thick
- Suction integrated in the substructure
- With chassis as standard
- Simple and precise adjustment of the chip removal
- Dressing table made of milled cast aluminum
- Space-saving compact design
- Includes: Suction connection hose, Ø 76 mm x 920 mm, Strip planer knife set, Chip bag
Technical details
Dimensions and weights
- Length approx.: 1105 mm
- Width/depth approx.: 750 mm
- Height approx.: 1075 mm
- Weight approx.: 87 kg
Electrical Data
- Drive motor output: 1,2 kW
- Absorbed power drive motor: 1,8 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Suction hood connection diameter: 75 mm
- Suction unit connection diameter: 75 mm
Jointing
- Max. cutting depth: 3 mm
- Planing stop pivoting range: 90 – 45 °
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 2 St
- Speed: 6700 min¯¹
- Max. planing width: 254 mm
