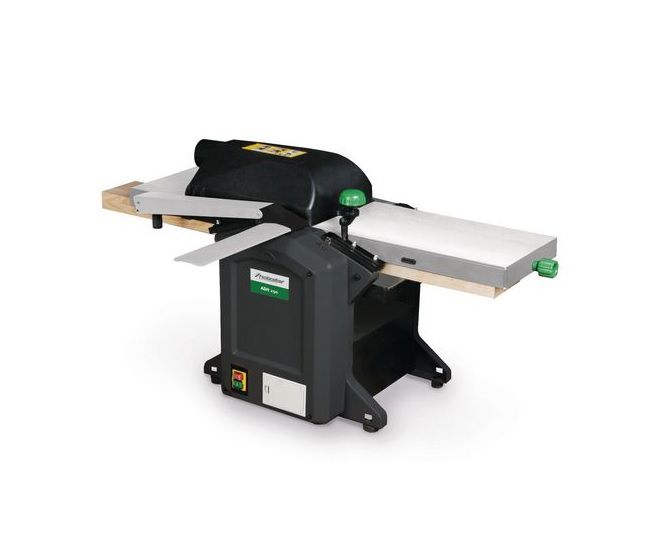

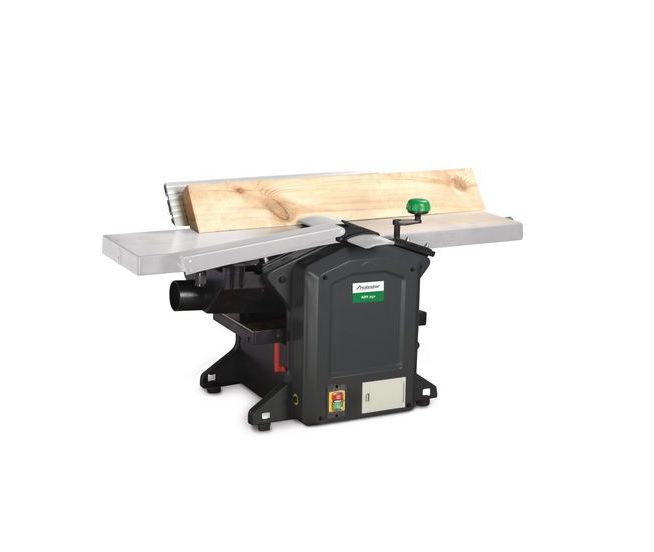

Sturmer Holzstar ADH 250 Bench Top Planer Thicknesser 254mm x 160mm 1500W 230v

X
Product Code: STU/5905250
Brand: Stuermer
Low Stock - Please Call For Availability
£659.99 Inc. VAT
£549.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Holzstar

ADH 250 Bench Top Planer Thicknesser 254mm x 160mm 1500W 230v

ref: 5905250



Key Features

  • ADH 250 254x160mm Planer/Thicknesser + 1500W motor 230v
  • Ideal for mobile use due to its small and compact design
  • For angular joining (90°) and straightforward dressing of solid wood, boards and strips
  • Simple and precise adjustment of the chip removal for dimensionally accurate thickness planing of up to 2 mm
  • Automatic workpiece feed
  • Rubberised exhaust roller protects the wood surface during thicknessing

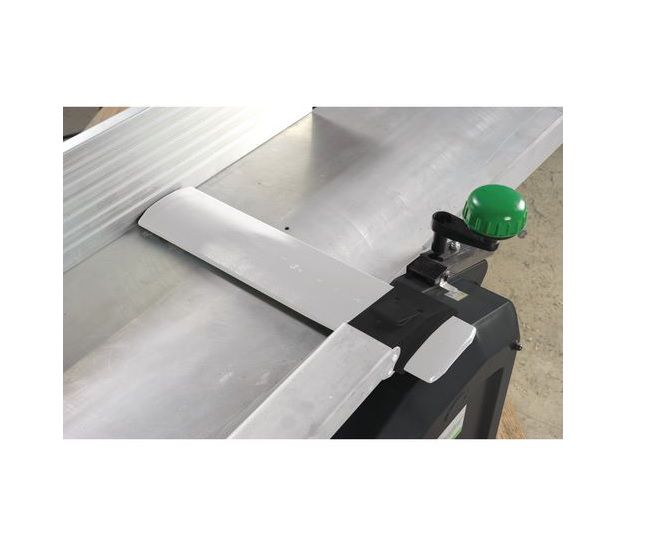

  • Infinitely tiltable aluminum dressing stop from 90° to 45°
  • Dressing table made of milled cast aluminum
  • Knife shaft with 2 HSS planing knives
  • Powerful 230 Volt motor with 1.5 kW
  • Reversible chip extractor hood



Technical details

Dimensions and weights

  • Length approx.: 1105 mm
  • Width/depth approx.: 550 mm
  • Height approx.: 570 mm
  • Weight approx.: 40 kg

Electrical Data

  • Drive motor output: 1,5 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter thickness: 80 mm

Feed

  • Speed: 7 m/min

Jointing

  • Max. cutting depth: 2 mm
  • Planing stop pivoting range: 90 – 45 °

Planing knife shaft

  • Type: Strip planer blade shaft
  • Number of planing blades: 2 St
  • Speed: 8500 min¯¹
  • Max. planing width: 254 mm

Thickness

  • Working height min.: 6 mm
  • Working height max.: 160 mm
  • VPE: 1



ADH 250 Holzstar Planer Thicknesser Manual
