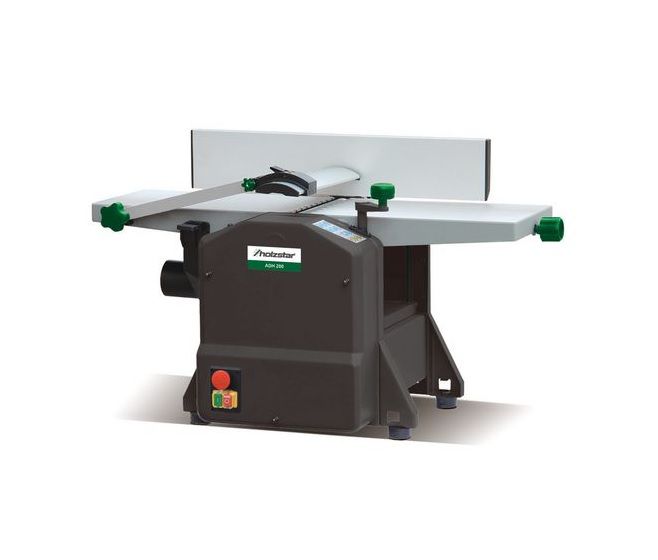

Sturmer Holzstar ADH 200 Bench Top Planer Thicknesser 204mm x 120mm 1500W 230v

X
Product Code: STU/5905199
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£359.99 Inc. VAT
£299.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

ADH 200 Bench Top Planer Thicknesser 204mm x 120mm 1500W 230v

ref: 5905199



Key Features

  • ADH 200 204x120mm Planer/Thicknesser + 1500W motor 230v
  • Ideal for mobile use thanks to small and compact design
  • For angle joints (90°) and precise surface planing of solid wood boards, planks and slats
  • Easy and precise adjustment of chip removal in precision thicknessing of up to 2 mm
  • Rubberised discharge roller is gentle on the surface in thicknessing operations
  • Infinitely pivoting aluminium jointing stop from 90 to +45°
  • Jointing and thicknessing table made of cast iron and milled cast aluminium
  • Blade shaft with 2 HSS planing knives
  • Powerful 230 volt, 1.5 kW motor
  • Pluggable chip extraction hood



Technical details

Dimensions and weights

  • Length approx.: 790 mm
  • Width/depth approx.: 470 mm
  • Height approx.: 465 mm
  • Weight approx.: 23 kg

Electrical Data

  • Drive motor output: 1,5 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter thickness: 58 mm

Feed

  • Speed: 7 m/min

Jointing

  • Max. cutting depth: 2 mm
  • Planing stop pivoting range: 90 – 45 °

Planing knife shaft

  • Type: Strip planer blade shaft
  • Number of planing blades: 2 St
  • Speed: 8500 min¯¹
  • Max. planing width: 204 mm

Thickness

  • Working height min.: 5 mm
  • Working height max.: 120 mm
  • VPE: 1
