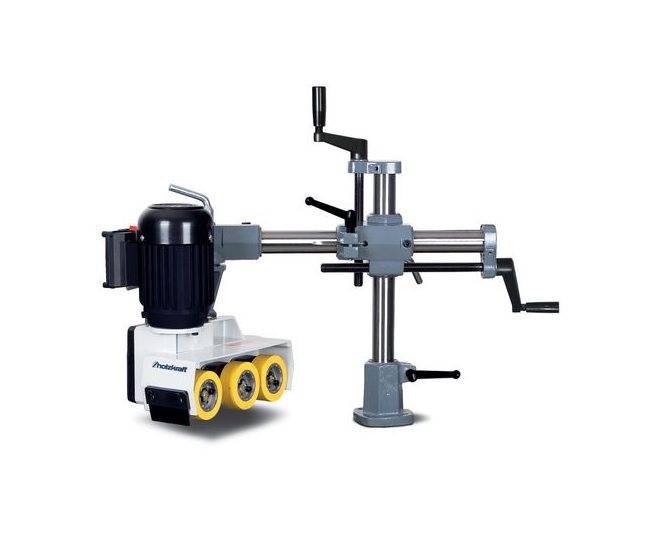

Sturmer Holzkraft VSA 32 Power Feed Unit 415v

X
Product Code: STU/5111000
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£779.99 Inc. VAT
£649.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzkraft

VSA 32 Power Feed Unit 415v

ref: 5111000



Key Features

  • VSA 32 Power feed unit + 3 x durable PU feed rollers + R & L rotation + 4 x feed speeds + 0.18kW motor 415v
  • Uniform feed rate without loss of power

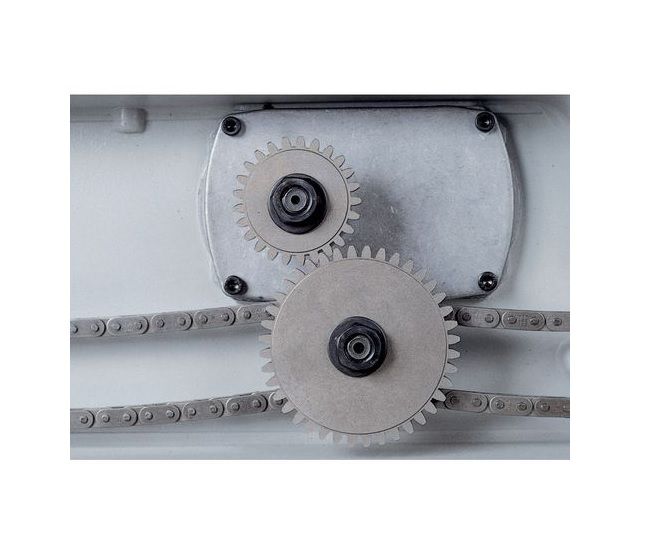

  • Metal gears with hardened gears
  • Right and left rotation
  • Powerful motors
  • Durable PU feed rollers
  • Stand as standard with extended extension arm for all feeders
  • Individually swiveling and adjustable for horizontal and vertical use
  • With counter

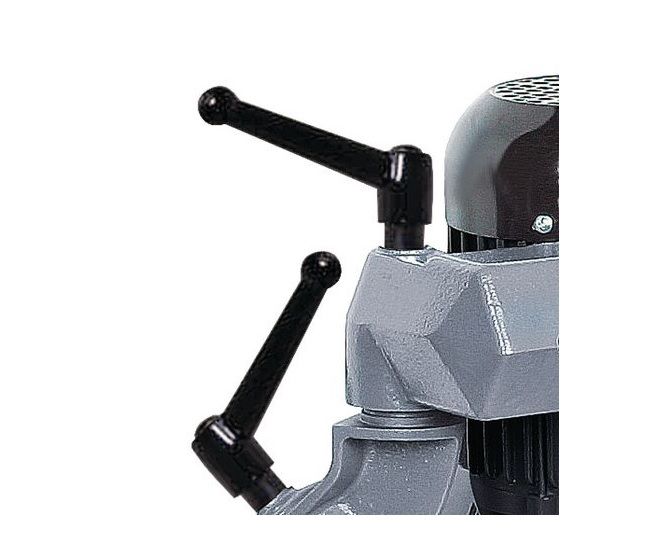

  • Improved quick-release lever
  • Standard right-left rotation with two speeds
  • Four other speeds through change gearbox
  • Pivot means
  • Individual adjustment options in horizontal and vertical position for optimum feed
  • Max. Radius: 300 mm
  • 180 W / 400V



Technical details

  • Number of feed rollers: 3 St
  • Feed speed: 5/ 6,5/ 8/ 11 m/min
  • Gears: 4
  • Max. extension: 300 mm
  • Roller diameter: 80 mm
  • Roller width: 30 mm
  • Spring stroke of rollers: 12 mm
  • VPE: 1

Dimensions and weights

  • Weight approx.: 34 kg

Electrical Data

  • Drive motor output: 0,18 kW
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz
