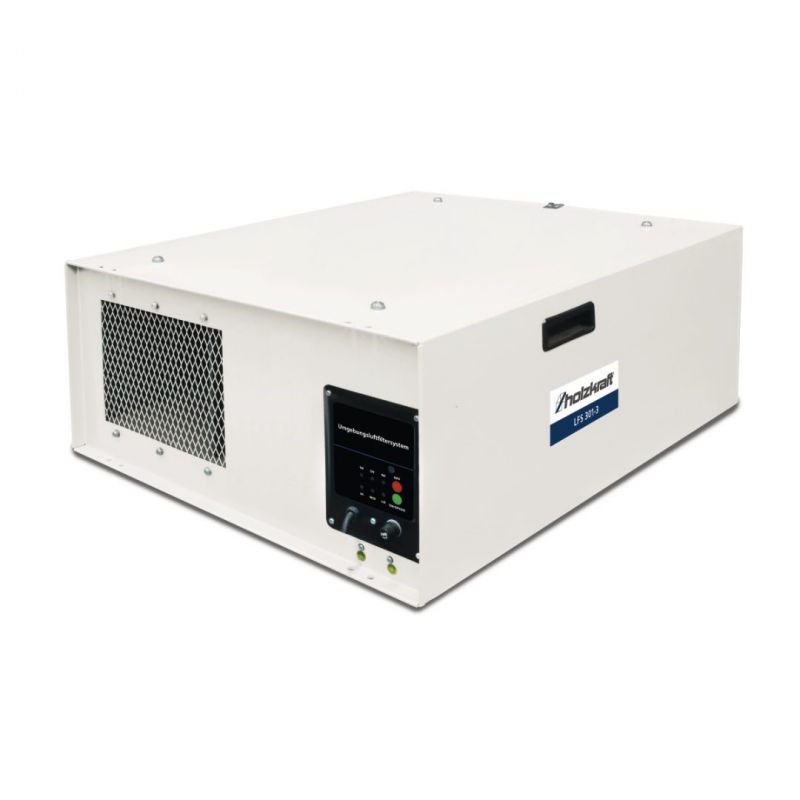

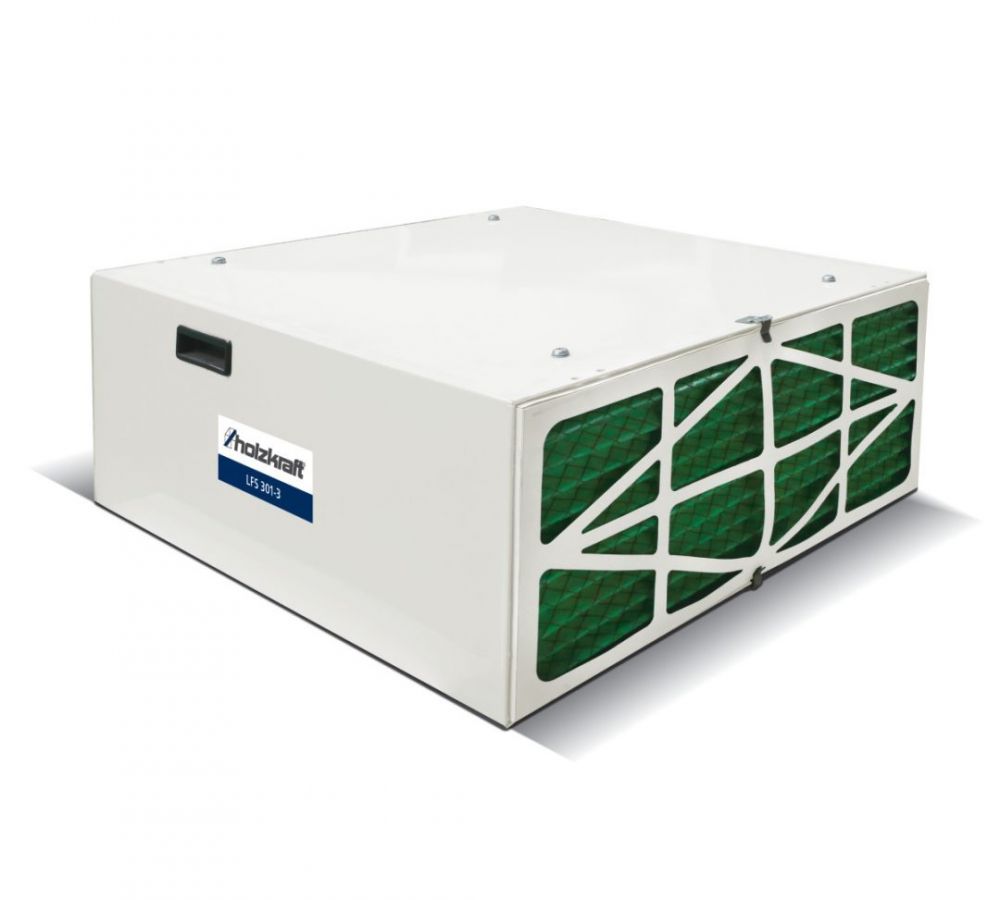

Sturmer Holzkraft LFS 301-3 Ambient Air Filter System 150W 230v

Sturmer Holzkraft

LFS 301-3 Ambient Air Filter System 150W 230v

ref: 5127301

• Highly efficient filter process removes particles > 5 μm and fine dust particles > 1 μm
• Designed to clean the air in workshops and exhibition rooms
• Ideal supplement to a stationary extraction system without fine filter
• In larger production areas also the use of several unitsrecommended directly at the machine or distributed in the room
• Adjustable in three steps
• Time recording for automatic switch-off

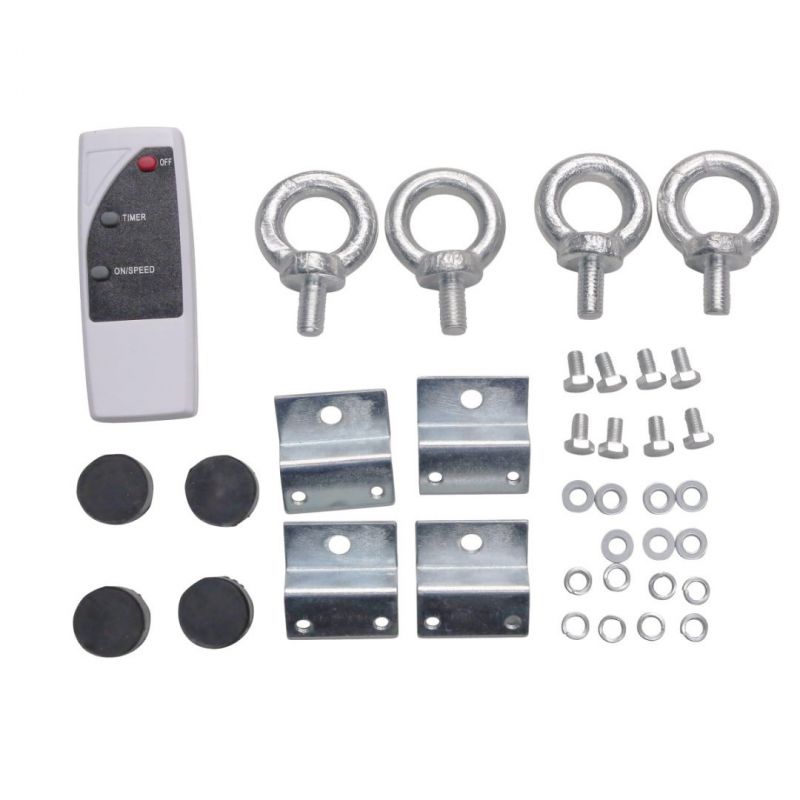

• Convenient operation via remote control

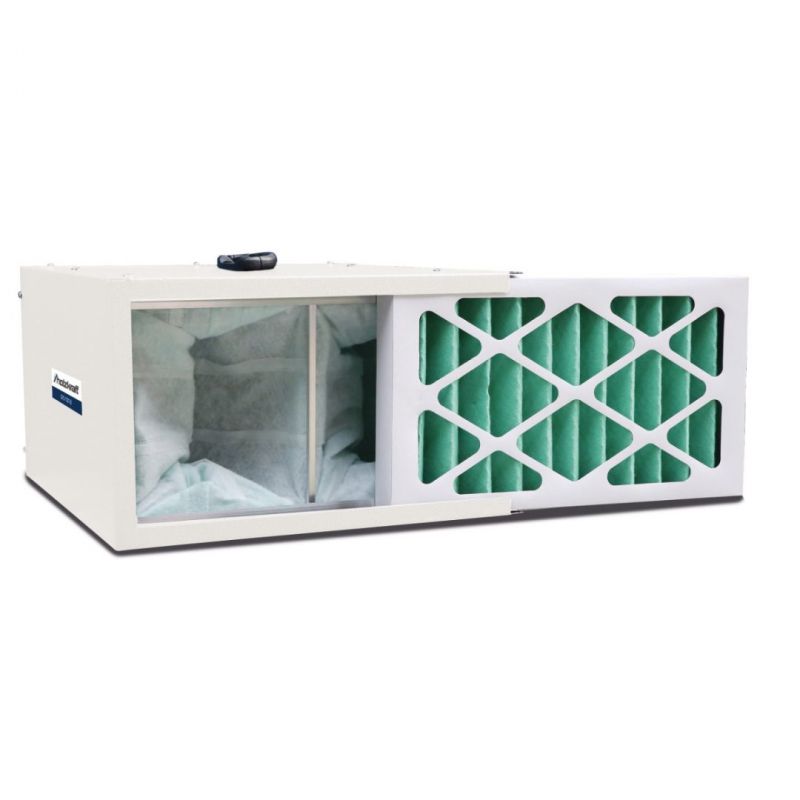

• Pre-filter easy to remove and clean

Examples, how often the air in certain rooms should be changed per hour:

• Assembly halls: 4 – 8 times
• Workshops: 8 – 10 times
• Laboratories: 8 – 15 times
• Paint-spray rooms: 25 – 50 times

Dimensions and weights

• Length approx.: 770 mm
• Width/depth approx.: 610 mm
• Height approx.: 310 mm
• Weight approx.: 25 kg

Electrical Data

• Motor input: 300 W
• Supply voltage: 230 V
• Mains frequency: 50 Hz

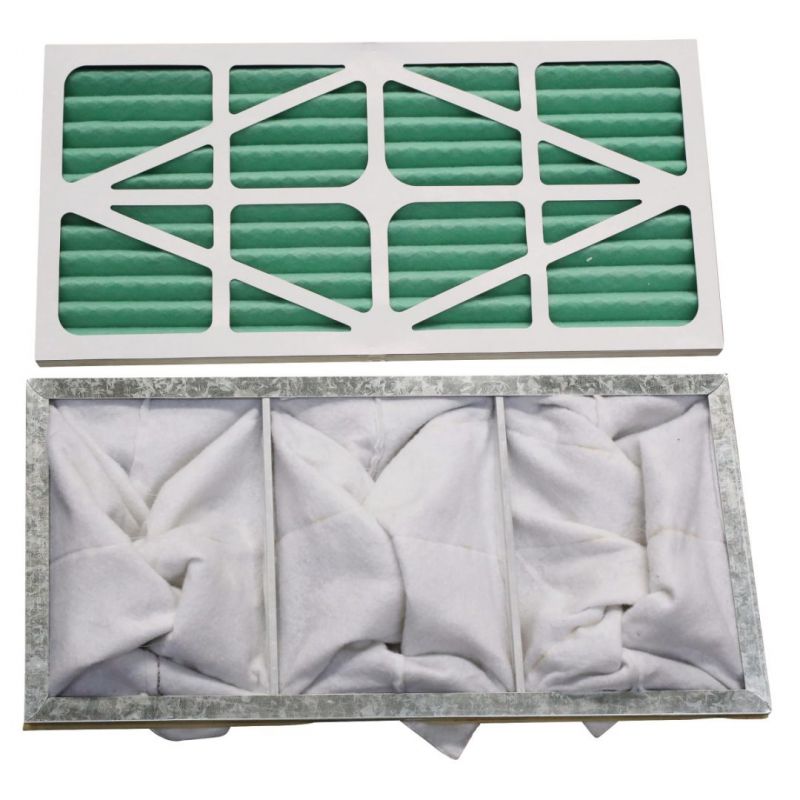

Filter

• Filter category filter net: G4

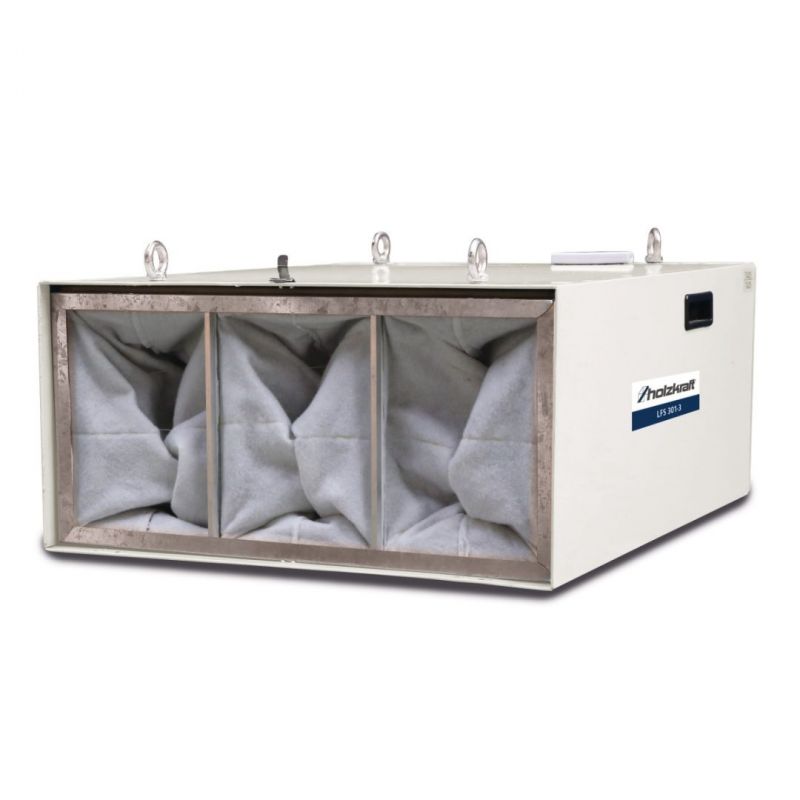

• Filter category inner filter: F6

Noise emission

• Max. sound pressure level: 69 dB(A)

Volume flow

• Max. volume flow, low level: 945 m³/h
• Max. volume flow, medium level: 1035 m³/h
• Max. volume flow, high level: 1675 m³/h
