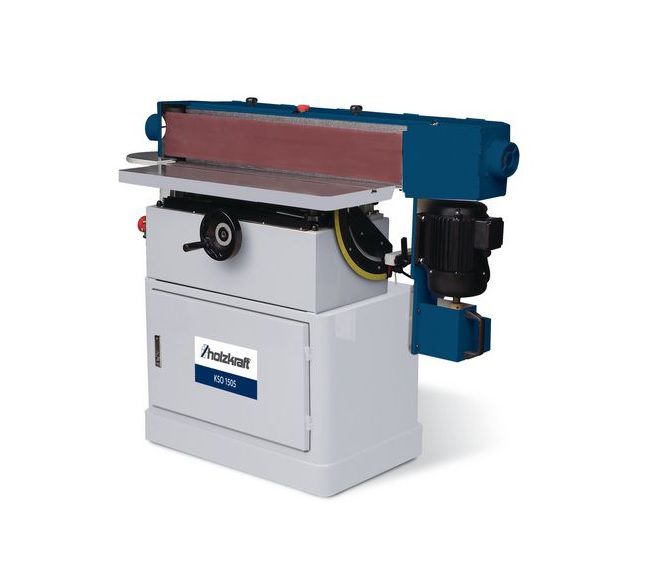

Sturmer Holzkraft KSO 1505 150mm Oscillating Tilting Belt and Spindle Edge Sander 415v

Sturmer Holzkraft

KSO 1505 150mm Oscillating Tilting Belt and Spindle Edge Sander 415v

ref: 5368155

• KSO 1505 150mm Osciallating + tilting belt & spindle sander sander 415v
• Infinitely adjustable sanding unit (0 – 90°) for vertical and horizontal sanding
• Oscillating sanding belt for better sanding results and a longer service life of the sanding belt
• Quick and easy sanding belt change via quick-release system
• Sanding pad with graphite coating as standard for a longer service life of the sanding belt
• Cast iron work table with T-slot, adjustable via handwheel
• Including lateral sanding sleeve device for sanding curves and radii
• Two extraction sockets Ø 100 mm

Dimensions and weights

• Length approx.: 1515 mm
• Width/depth approx.: 550 mm
• Height approx.: 1150 mm
• Weight approx.: 207 kg

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Extraction port

• Extraction port diameter: 100 mm

Sanding machine

• Sanding belt length: 2750 mm
• Sanding belt width: 150 mm
• Circumferential belt speed(s): 16 m/s
• Sanding surface length: 1010 mm
• Sanding surface width: 190 mm
• Max. sanding height: 170 mm
• Pivoting: 0 – 90 °
• Oscillation stroke: 15 mm

Work top(s)

• Work table length: 900 mm
• Work table width: 305 mm
• Work table height adjustment: 120 mm

Workpiece

• Max. width: 1010 mm
• Max. height: 150 mm
