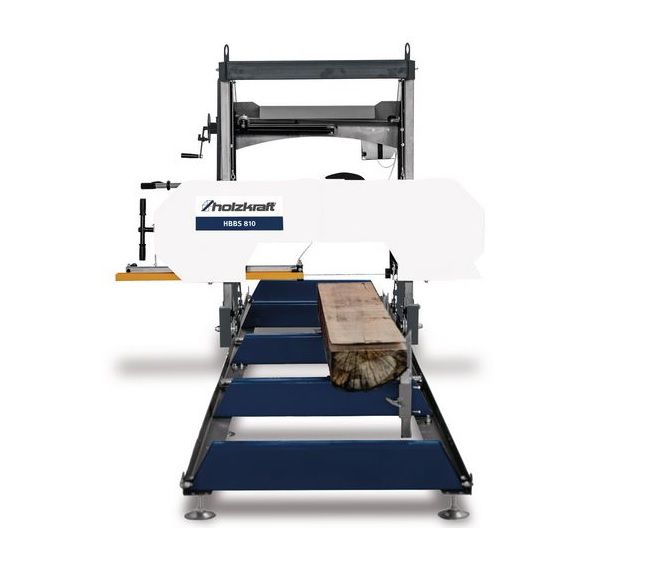

Sturmer Holzkraft HBBS 810-G Horizontal Log Band Saw 700 x 3200 mm Max Cut - Petrol Engine

Sturmer Holzkraft

HBBS 810-G Horizontal Log Band Saw 700 x 3200 mm Max Cut - Petrol Engine

ref: 5670814

• HOLZKRAFT HBBS 810-G 700x3200mm max cutting capacity + 810mm trunk dia + horizontal bandmill + Petrol
• Solid cast wheels driven by an 11 kW petrol engine
• Manual adjustment of the cutting height via hand crank
• Robust and torsion-resistant steel construction
• Simple operation with the aid of a manual saw feed
• Stable clamping of the log thanks to adjustable tips
• Precise cuts thanks to adjustable saw blade guide
• Low friction between saw blade and wood thanks to integrated blade lubrication
• The side-mounted chip removal ensures a clean working area
• Any cutting length thanks to bed extensions available as accessories
• Suitable for softwood and hardwood

Cutting ranges

• Max. trunk diameter: 810 mm
• Max. cutting width: 700 mm
• Cutting length max.: 3200 mm
• Passage over saw band: 190 mm

Dimensions and weights

• Length approx.: 4000 mm
• Width/depth approx.: 2350 mm
• Height approx.: 2080 mm
• Weight approx.: 390 kg

Noise emission

• Sound power level: 96,1 dB(A)

Saw band

• Speed(s): 20 m/s
• Length: 4015 mm
• Width: 34 mm
• Strength: 1 mm
