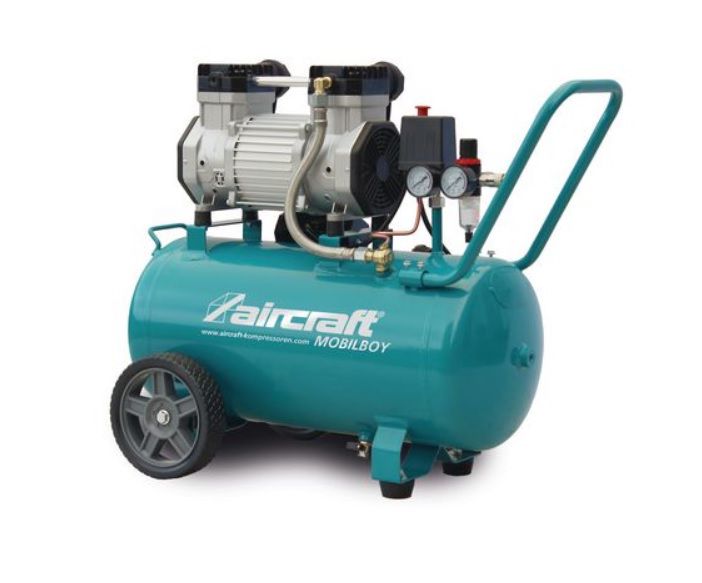

Sturmer Aircraft MOBILBOY SILENCE 401/50 OF E Oil Free Compressor 10 Bar 1300W 230v

Sturmer Aircraft

MOBILBOY SILENCE 401/50 OF E Oil Free Compressor 10 Bar 1300W 230v

ref: 2002401

• MOBILBOY SILENCE 401/50 OF E Twin cylinder reciprocating mobile oil free piston compressor + quiet operation + 10 Bar + 24 Ltr + 1300W 230v
• Very smooth operation and therefore very quiet
• Oil-free piston compressor: no oil change necessary and no oil in the condensate for best working quality
• Compressed air reducer for stepless adjustment of the desired working pressure
• High-quality pressure switch
• Electric motor equipped with motor protection switch
• Fully automatic on/off operation
• One pressure gauge each for displaying the tank and working pressure
• Powder-coated compressed air tank

Compressed air tank

• Maximum pressure: 10 bar
• Pressure vessel capacity: 50 l
• Tank vertical / horizontal: Horizontal
• Tank surface: Powder coated

Compressor

• Compressor system: WDS
• Oil-free / oil-lubricated: Oil free
• Suction capacity approx.: 400 l/min
• Filling capacity approx.: 180 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 2
• Number of compressor stages: 1
• Piston stroke: 18 mm
• Diameter of piston: 69.7 mm

Dimensions and weights

• Length approx.: 800 mm
• Width/depth approx.: 360 mm
• Height approx.: 720 mm
• Weight approx.: 40 kg

Electrical Data

• Delivery power: 2,2 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Noise emission

• Sound pressure level Lp: 67 dB(A)
• Explanation sound pressure level Lp: Sound pressure level at 1 m distance according to DIN 45635 T 13
• VPE: 1
